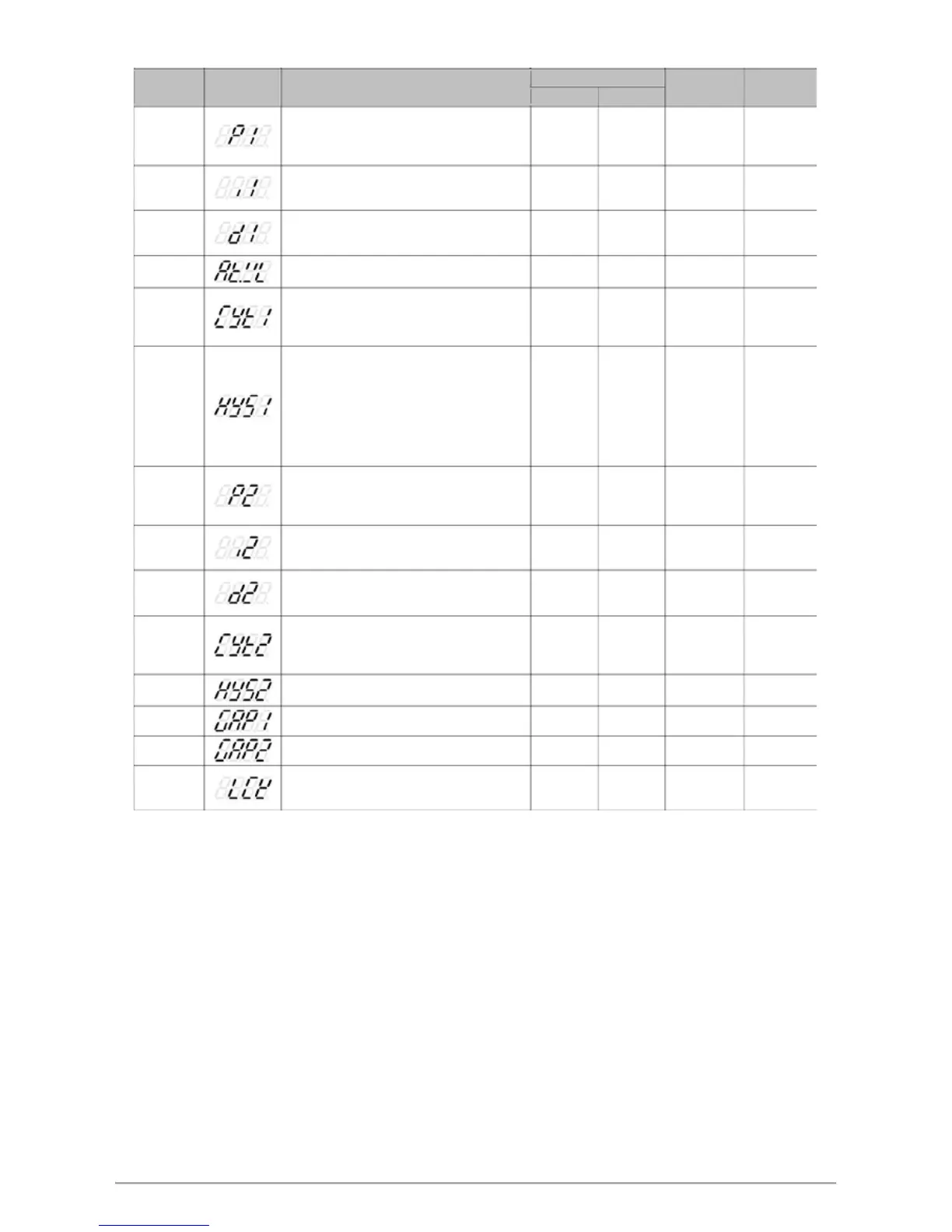

10.7 LEVEL_2 Parameter
tnetnoC lobmyS retemaraP
Range
Default
Hide/
MAX MIN
Display
Main output proportional band
P1
0.0 : ON/OFF control
200.0 0.0 3.0 ---
Other values : proportional band setting
value
Main output integral time
I1 0 : disable integral function 3600 0 240 ---
Other values : integral time setting value
Main output derivative time
D1 0 : disable derivative function 900 0 60 ---
Other values : derivative time setting value
AT.VL
Auto tuning offset value
100.0 -100.0 0.0 ---
execute auto tuning in (SV-ATVL) point
Main output control cycle
CYT1
0 : Linear signal
150 0 10 ---
1 : SSR drive
2~150 : Relay
Hysteresis for main output
on/off control use(when P1 = 0.0 appear)
heating formula：
HYS1
PV ≥ (SV + HYS1)  OUT1=OFF
100.0 -100.0 1.0 P1 = 0.0
PV
≤
(
SV - HYS1
)
 OUT1=ON
cooling formula：
PV
≥
(SV + HYS1)  OUT1=ON
PV ≤ (SV - HYS1)  OUT1=OFF
Sub output proportional band
P2
0.0 : ON/OFF control
200.0 0.0 3.0 OUTY = 1
Other values : proportional band setting
value
Sub output integral time
I2 0 : disable integral function 3600 0 240 OUTY = 1
Other values : integral time setting value
Sub output derivative time
D2 0 : disable derivative function 900 0 60 OUTY = 1
Other values : derivative time setting value
Sub output control cycle
CYT2
0 : Linear signal
150 0 10 OUTY = 1
1 : SSR drive
2~150 : Relay
HYS2
Hysteresis for sub output
100.0 -100.0 1.0 P2 = 0.0
on/off control use(when P2 = 0.0 appear)
GAP1 Control gap (for main output) 1000 -1000 0 OUTY = 1
GAP2 Control gap (for sub output) 1000 -1000 0 OUTY = 1
Function or level lock
LCK (Please refer to Chapter 10.3 Data Lock 1111 0000 0000 ---
Function)
FY/FU operation manual 24
