FY operation manual 42
11.3 Remote SV
Description
Remote SV functions as an analog signal (4~20mA or 0~10V) generated by external devices (EX: PLC AO module, transmitter)
to the Remote SV terminal of the controller, to change the SV with a preset range.
Remote SV signal selection: 4~20mA, 0~20mA, 0~5V, 0~10V, 1~5V, 2~10V

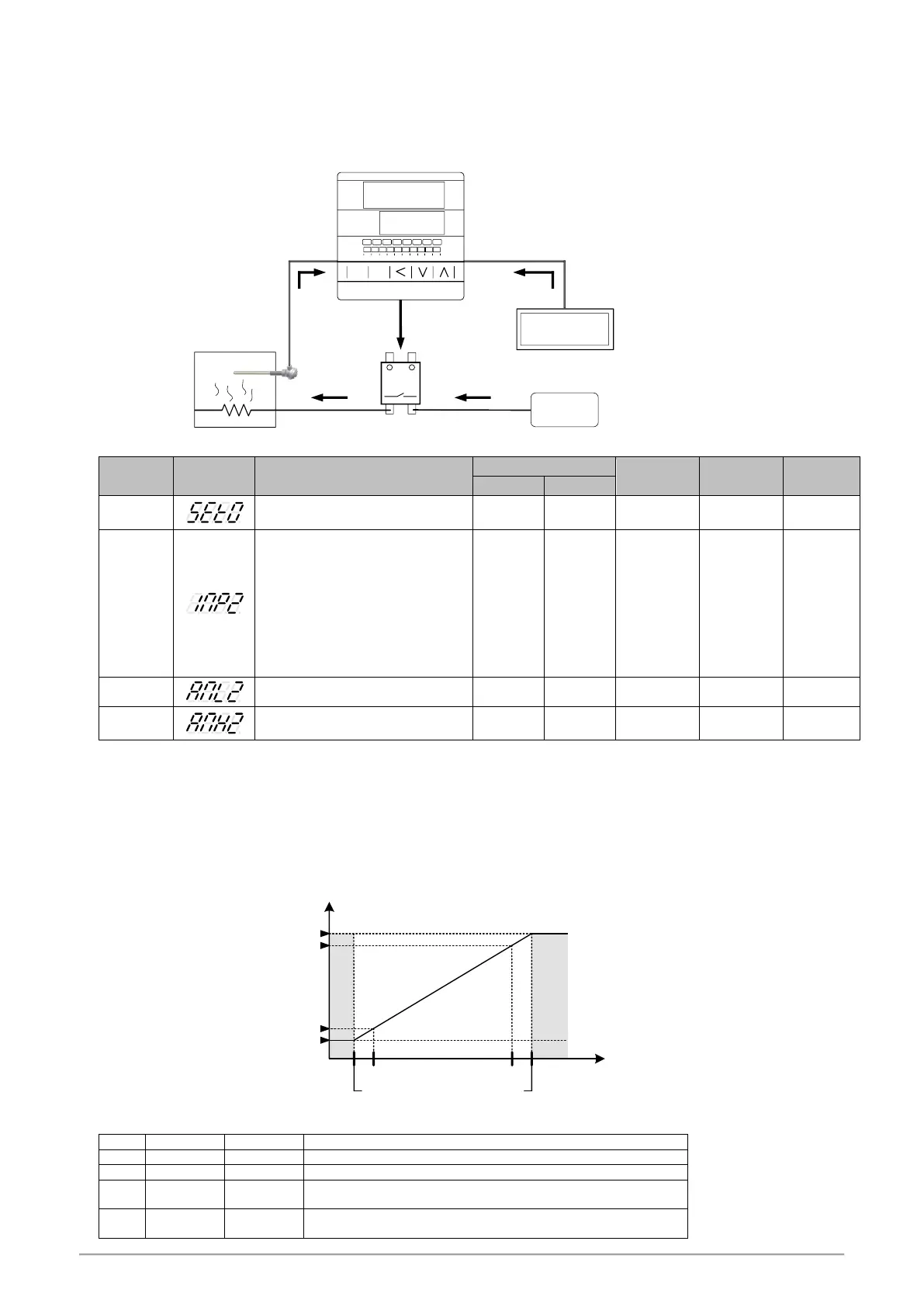

Function Diagram
Control
output
Power
Electric
furnace
Sensor input
PLC AO module / transmitter
Remote SV input
20.00
mA
SSR
-+
PV
SV
OUT1 %
0 20 40 60 80 100
100.0
SET A/M
TAIE
FY900
OUT1 OUT 2 AT AL1 AL2 AL3 M AN PRO
50.0
Parameter
0 : Remote SV disable
1 : Remote SV enable
Sub input type selection
0 : none
1 : 10~50mV / 4~20mA / 1~5V /
2~10V
(only available in remote SV)
2 : 0~50mV / 0~20mA / 0~5V /
0~10V
(only available in remote SV)
3 : valve feedback
4 : CT input
Sub input zero calibration
Sub input span calibration
(hex display)
Examples
Input signal is K1 and its range is -50.0~600.0. When an external analog signal is input to the Remote SV
terminal, the signal will be based on the range presents linear display of SV parameters
When the signal input value is less than 2.4mA, the PV position shows nnn2, indicating that the signal of Remote SV is lower than
the lower limit value
When the signal input value is greater than 21.6mA, the PV position shows uuu2, indicating that the signal of Remote SV is higher
than the upper limit value
Remote SV
4.0 20.0
mA
2.4 (-10%)
21.6 (110%)
Remote SV lower limit -10%
Remote SV lower limit
Remote SV upperer limit +10%
Remote SV upper limit
Parameter setting
Enable Remote SV function
Remote SV signal low point calibration value
(each controller calibrate value is different)
Remote SV signal high point calibration value
(each controller calibrate value is different)
