11.9 Master-Slave communication
Description
Transmission master controller SV to slave controller SV, all slave controller SV can be consistent

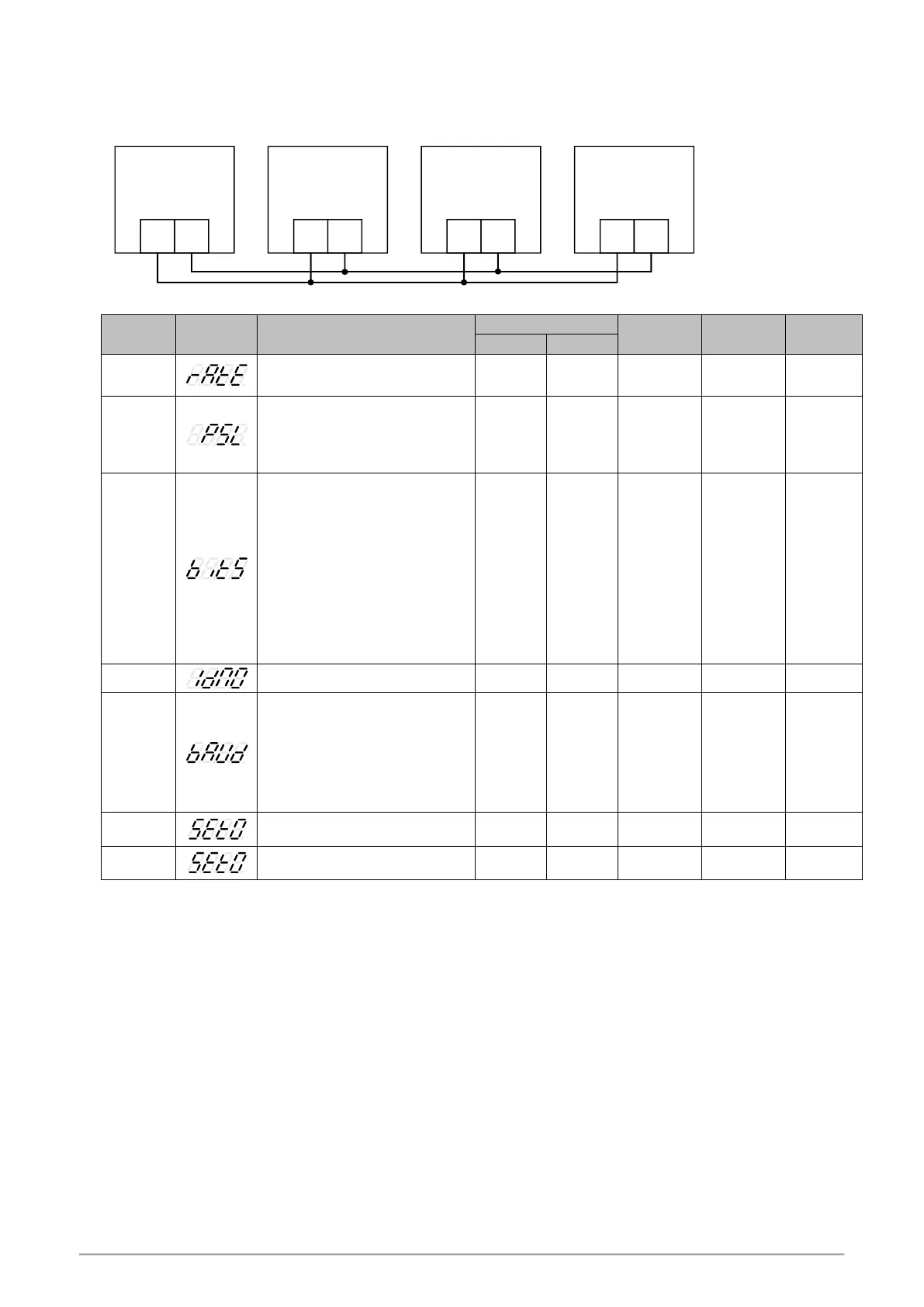

Wiring
Master
SD SG RD SG RD SG RD SG
FY900_1
ID=0
SET0.1=1
Slave
FY900_2
ID=1
SET0.1=0
Slave
FY900_3
ID=1
SET0.1=0
Slave
FY900_4
ID=1
SET0.1=0
Parameter
Parameter
Symbol
Content
Range
Default
Level
Hide/
Display
MAX
MIN
RATE
Slave SV rate
RATE SV = SV x (RATE/9999)
9999
0
9999
Level 1
SET2.1
&
SET0.2
PSL
Protocol selection
0 : TAIE
1 : RTU
(Please refer to communication
manual)
RTU
TAIE
TAIE
Level 3
SET5.4
BITS
Data format
0 : O_81
(parity bit=odd, stop bit=1)
1 : O_82
(parity bit=odd, stop bit=2)
2 : E_81
(parity bit=even, stop bit=1)
3 : E_82
(parity bit=even, stop bit=2)
4 : N_81
(parity bit=none, stop bit=1)
5 : N_82
(parity bit=none, stop bit=2)
N_82
O_81
O_81
Level 3
SET5.4
IDNO
Controller station
254
0
1
Level 3
SET5.4
BAUD
Baud rate
0 : 24(2400)
1 : 48(4800)
2 : 96(9600)
3 : 192(19200)
4 : 384(38400)
5 : 576(57600)
6 : 1152(115200) bps
1152
24
96
Level 3
SET5.4
SET0.1
0 : TTL Communication (Slave)
1 : TTL Communication (Master)
1
0
0
Level 4
---
SET0.2
0 : RATE hide
1 : RATE display
1
0
0
Level 4
---
Master controller setting step
1. IDNO= 0, PSL= TAIE
2. BITS= O_81, BAUD= 9600
3. SET0.1= 1
4. SET0.2= 0
5. After completing the above steps, master controller start to transmit SV to slave controller SV
Slave controller setting step
1. IDNO= 1, PSL= TAIE
2. BITS= O_81, BAUD= 9600
3. SET0.1= 0
4. SET0.2= 1
5. RATE= 9999
6. After completing the above steps, slave controller start to receive master controller SV
Notes
1. Afer adding master-slave communication, RS-485 communication not available
2. Master-slave communication only available in TAIE protocol(PSL= TAIE)
3. Master controller does not use parameter RATE, to attenuate the SV received by slave controller just adjust parameter RATE
4. Master controller can connect up to 10 slave controllers, and the wiring between every controller should not exceed 1 meter.
