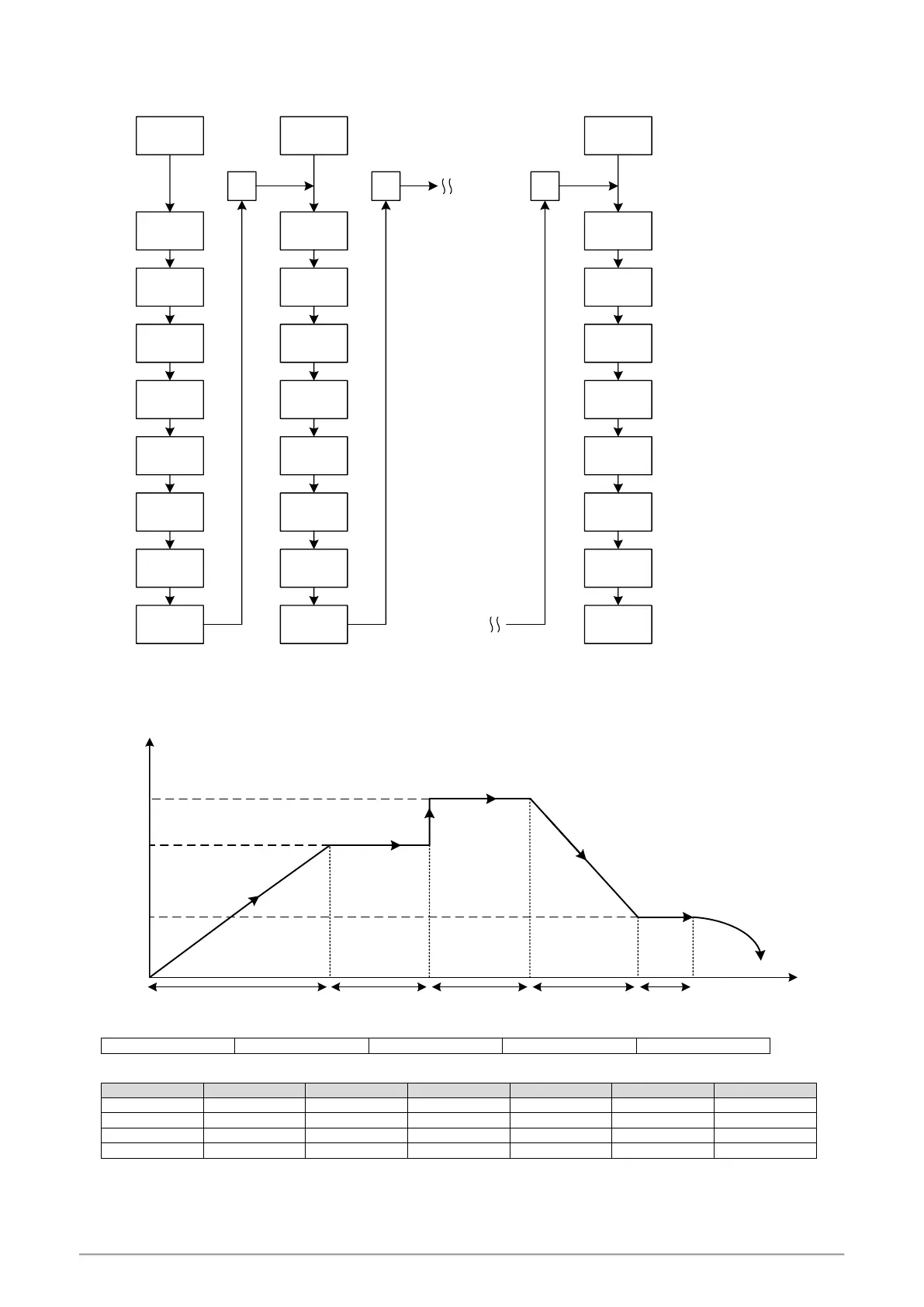

13.5 Program Execution Flow
The program can be up to 18 patterns. If you connect all the patterns, up to 144 segments.
PTN _1
SEG_1
SEG_2
SEG_3
SEG_4
SEG_5
SEG_6
SEG_7
SEG_8
PTN _2
SEG_1
SEG_2
SEG_3
SEG_4
SEG_5
SEG_6
SEG_7
SEG_8
link the next
patterns
PTN _18
SEG_1
SEG_2
SEG_3
SEG_4
SEG_5
SEG_6
SEG_7
SEG_8
link the next
patterns
link the next
patterns
13.6 Program Setting Example
In pattern_1 edit program ramp, soak, step then end
Temperature
time
30 minutes
soak
time
60 minutes
ramp
time
40 minutes
ramp
time
20 minutes
soak
time
SEG_1
200ºC
30 minutes
soak
time
250ºC
80ºC
SEG_2
SEG_4
SEG_5
SEG_6
SEG_3
end
SEG_7
Initial setting
SET9.2 = 1
SET8.3 = 0
SET8.1 = 0
SET8.2 = 1
WAIT = 0.5
Program edit
Segment_1
Segment_2
Segment_3
Segment_4
Segment_5
Segment_6
Segment_7
PTN = 1
PTN = 1
PTN = 1
PTN = 1
PTN = 1
PTN = 1
PTN = 1
SV_1 = 200
SV_2 = 200
SV_3 = 250
SV_4 = 250
SV_5 = 80
SV_6 = 80
SV_7 = 0
TM_1 = 60.00
TM_2 = 30.00
TM_3 = 0.00
TM_4 = 30.00
TM_5 = 40.00
TM_6 = 45.00
TM_7 = END
OUT1 = 100.0
OUT2 = 100.0
OUT3 = 100.0
OUT4 = 100.0
OUT5 = 100.0
OUT6 = 100.0
OUT7 = 0.0
