Figure 1.2 below shows the configuration for a typical single 50W base
station. The PMU again occupies slots 5 and 6, with the reciter in slot 1 and
PA in slot 2. The PA is mounted vertically with its heatsink facing the
reciter. The PMU and the reciter/PA pair have their own cooling fans.

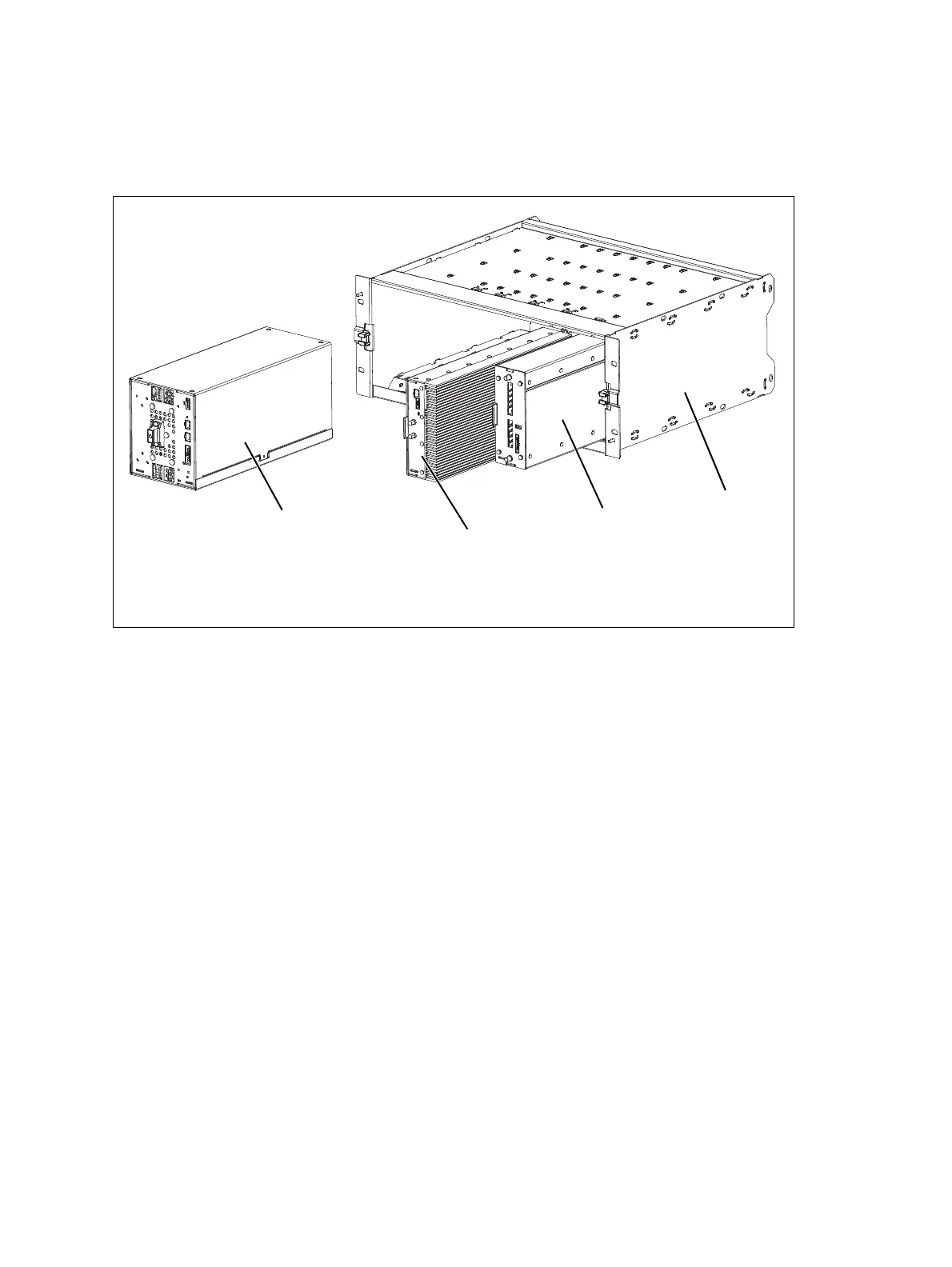

Figure 1.2 Mechanical assembly - single 50W base station
b PMU d reciter
c 50W PA e subrack
b
c
d
e
