Tait TB9400 User Manual

TB9400/TN9275 Installation and Operation Description 25
© Tait International Limited May 2023
Figure 1.3 below shows the configuration for a typical 100 W base station.
The PMU occupies slots 5 and 6, with the PA directly beside it in slots 3
and 4. The reciter occupies slot 1. Unlike the 50W PAs, the 100W PA is
mounted horizontally with the heatsink facing upwards. It is also fitted with
an airflow duct to channel the airflow from the cooling fan through the
heatsink fins.

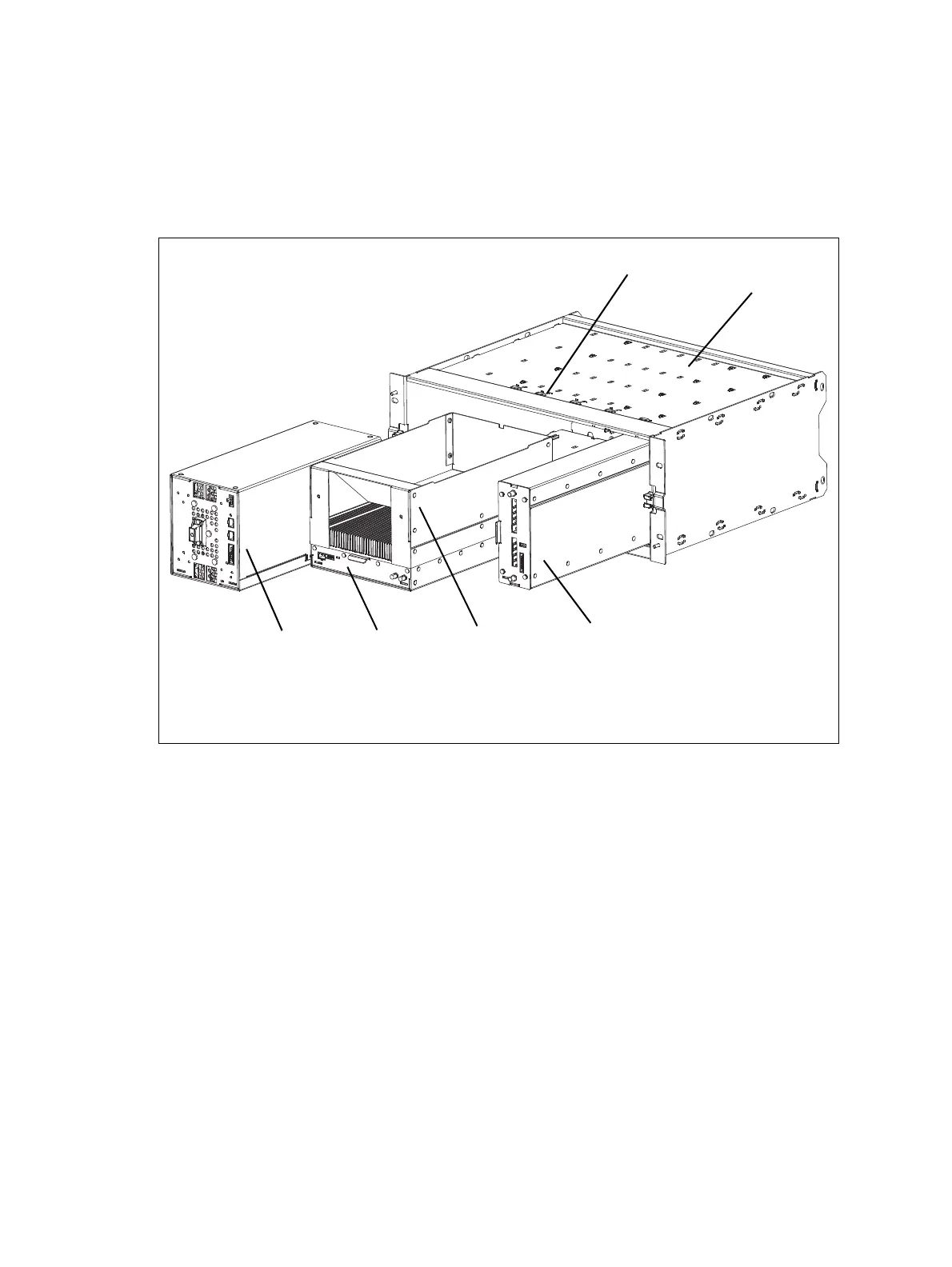

Figure 1.3 Mechanical assembly - single 100W base station
b PMU e reciter
c PA f subrack
d airflow duct g cable retaining clip
b
c
d
e
f
g
