Adjustment of each part
3-7
3

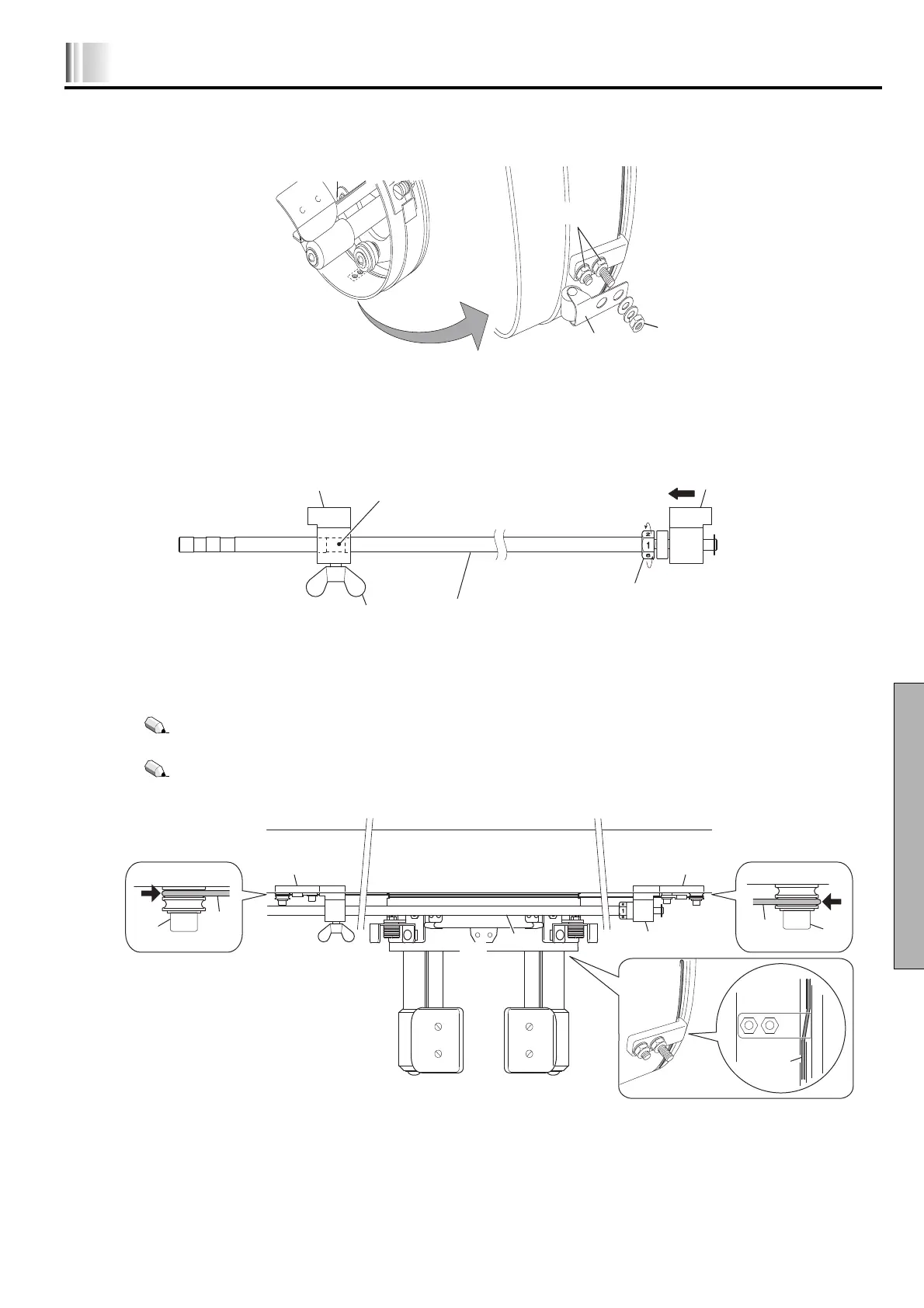

4. Detach the nut (10) and base presser roller (11), and loosen the nut (12).
5. Fix the tension block (14) of the wire tension gauge (13) at the position of A using the thumbscrew (15).
6. Turn the tension nut (16) to move the tension block (17) to the innermost.
7. Put the wire tension gauge (13) between the slide nuts (7) and (18), and make the tension block (17) touch the inner face of
the slide nut (18) on the right side.
Put the drive wire (6) on the left side in the rear groove (B) of the wire guide ring (8), and put the drive wire (6) on the right side in the front
groove (C) of the wire guide ring (8).
Switch the groove position of the drive wire (6) at the bottom face (D) of the drive ring.
10
11
12
13
16
17
15
14
A
13
7
18
17
B
6
6
8
8
C
D
6
KY01
