TAJIMA TEMX-C - Semi-Wide Cap Frame Adjustment

Adjustment of each part
3-3
3
2.Semi-wide cap frame

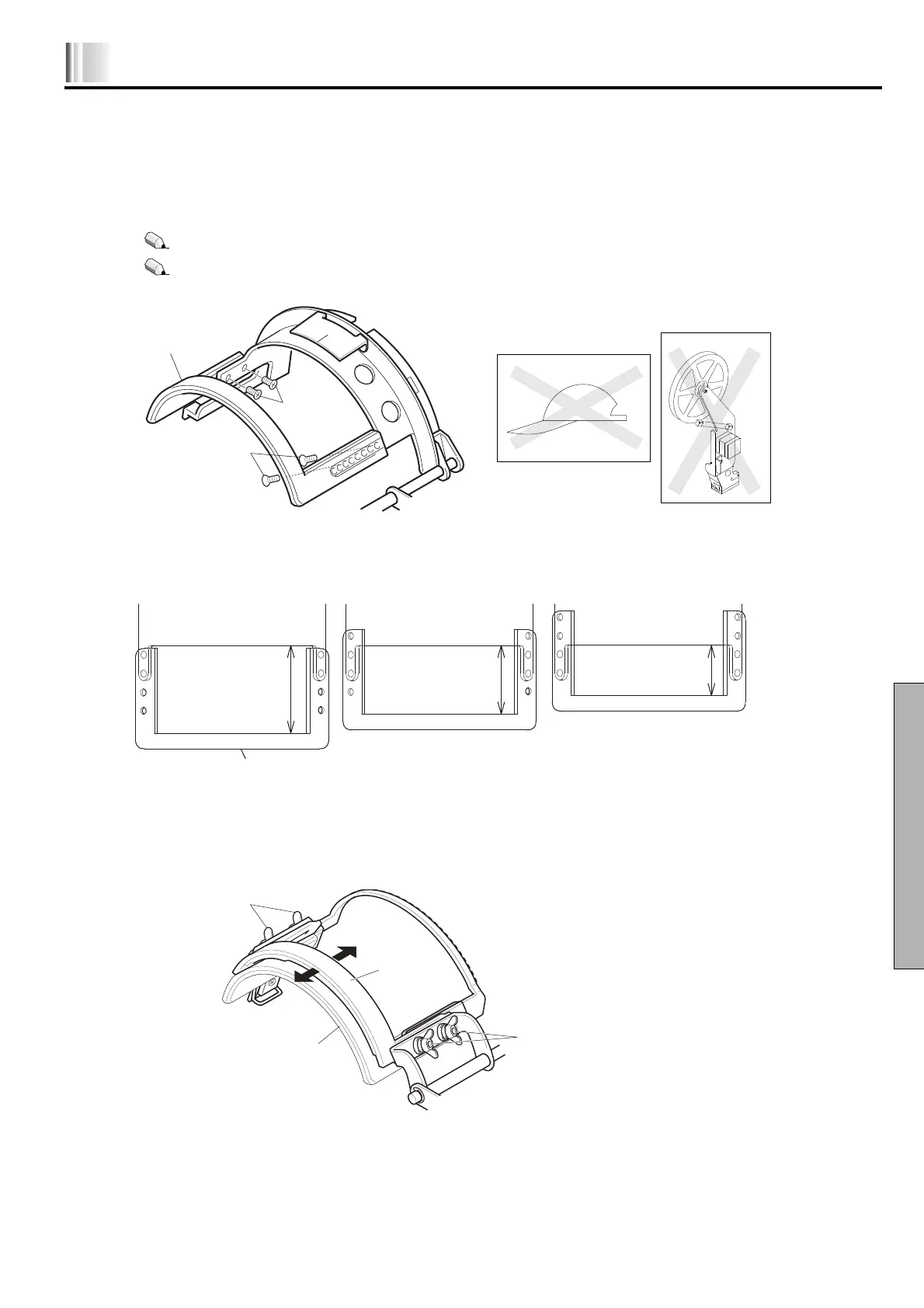

1. Adjustment of depth of cap
1. Remove the screw (1) and detach the base frame B set (2).
It is not possible to use sequin device.
Round shape caps are not suitable for semi-wide cap frames.
2. Attach the base frame B set (2) to the position where depth of cap is fitted.
3. After loosening the wing nut (3) and aligning the lid frame A set (4) with the position of the base frame B set (2) adjusted by
depth of cap, tighten the wing nut (3).
1
1
2
2
Deep
Shallow
2
3
3
2
4
