TAJIMA TEMX-C - Attaching of Cap Frame Guide

Changing procedure of the frame
1-5
1

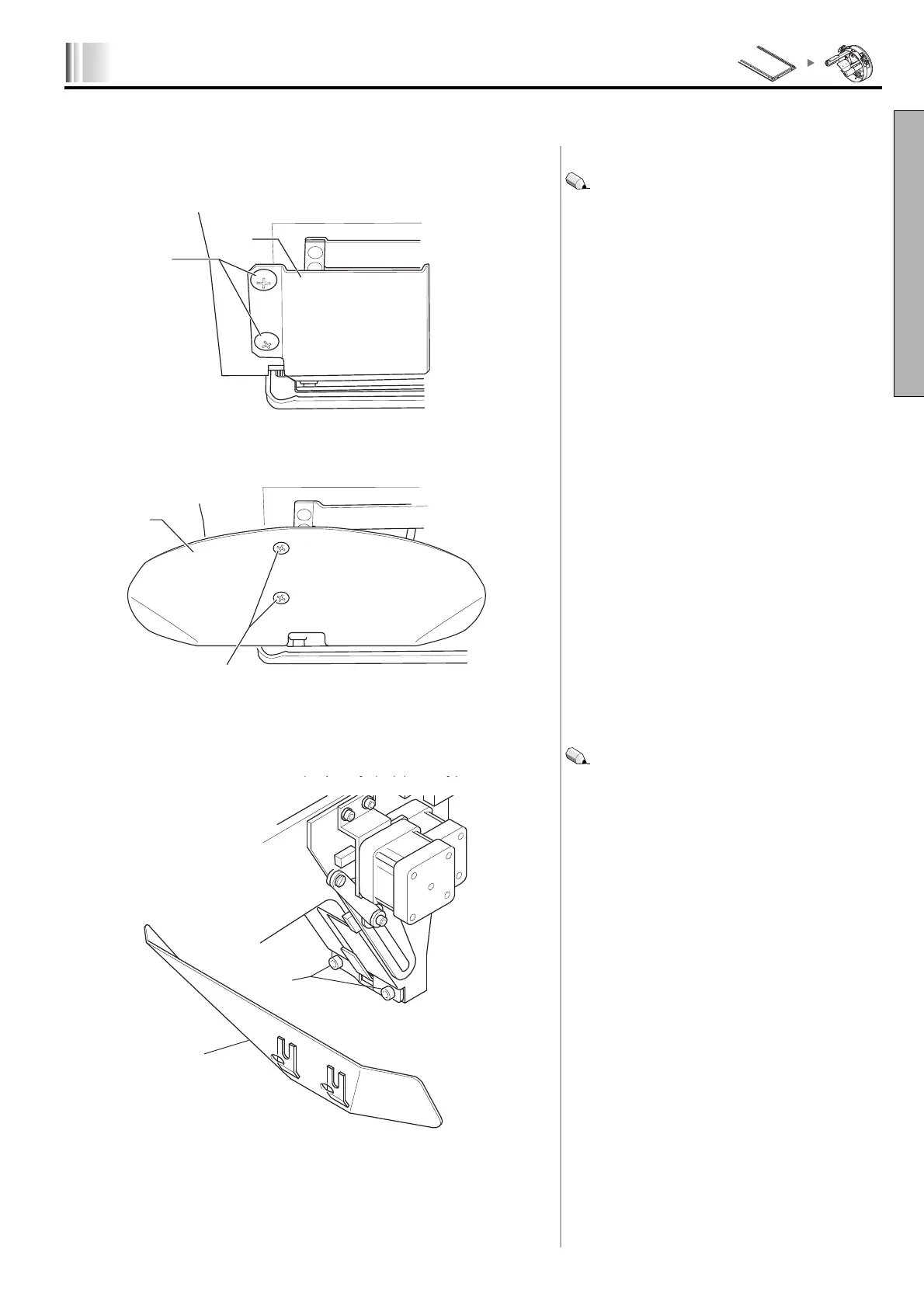

4. Attaching of cap frame guide
In case of TFMX-C...................................................................................
1. Remove the screw (1) to detach the hook cover (2).
2. Fix the cap frame guide (4) using the screw (3).
In case of TEJTII-C/TEMX-C...................................................................
1. Loosen the screw (5).
2. Fix the hook cover (6) using the screw (5).
It is not necessary to remove the attached cap frame guide
(4) even when frame spec. is changed. However, if the cap
frame guide has a disadvantage for embroidery work,
return it to the hook cover (2).
1
2
4
3
It is not necessary to remove the attached hook cover (6)
even when frame spec. is changed. However, if the cap
frame guide has a disadvantage for embroidery work,
detach the hook cover (6).
5
6
LX03
