TAJIMA TEMX-C - Cap Frame Unit Assembly

4-2
Assembling of cap frame unit
1.Assembling of cap frame unit

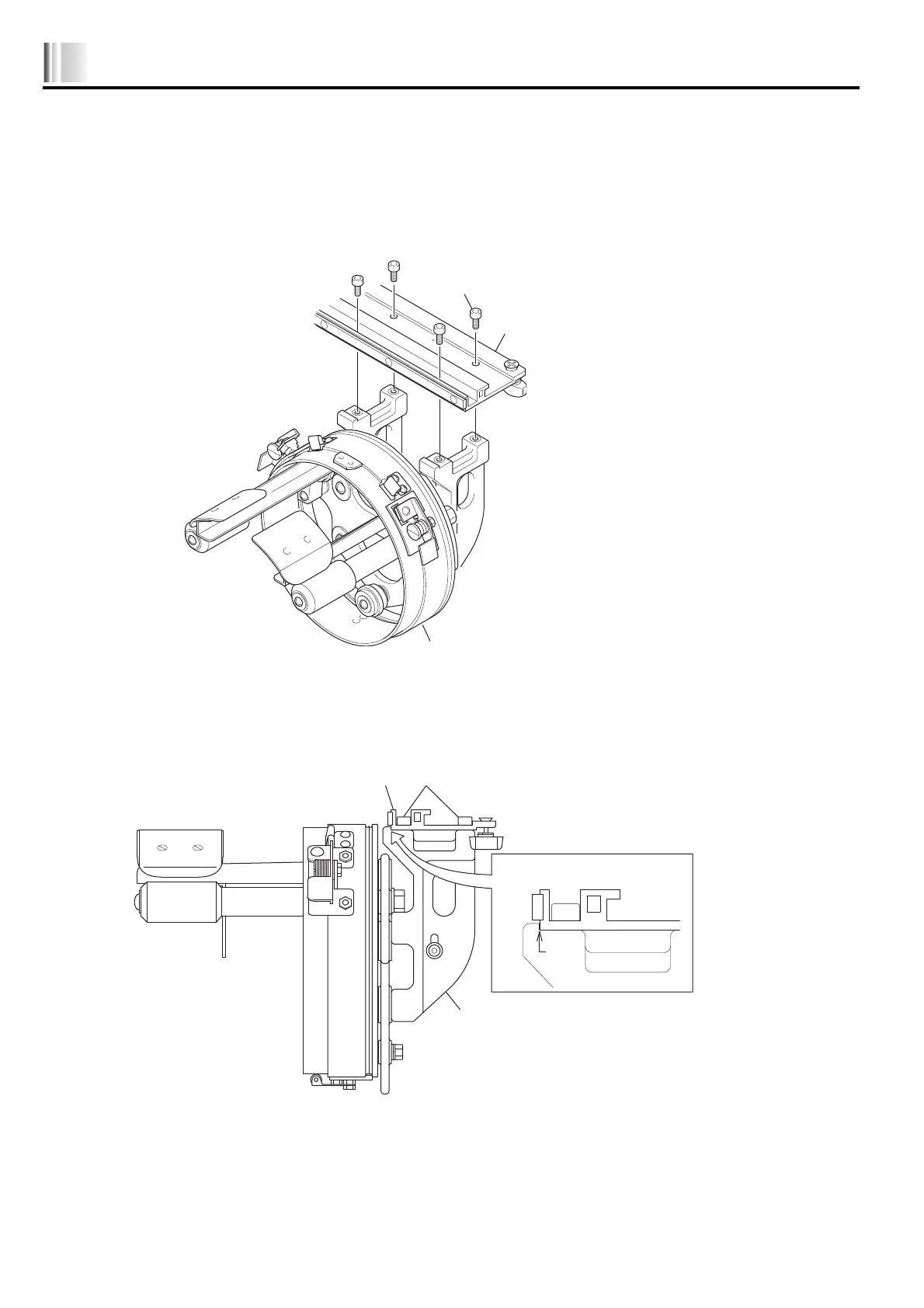

1. Attaching of drive ring unit
1. Fix the drive ring unit (1) to the cap frame base (3) using the screw (2) temporarily.
2. Tighten the screw (2) in the state of touching the rear face (5) of the stepped section of the base bracket (4) to the front face
of the cap frame base (3).
1
2
3
32
4
5
KY01
