TAJIMA TEMX-C - Attaching of Drive Wire

Assembling of cap frame unit
4-3
4

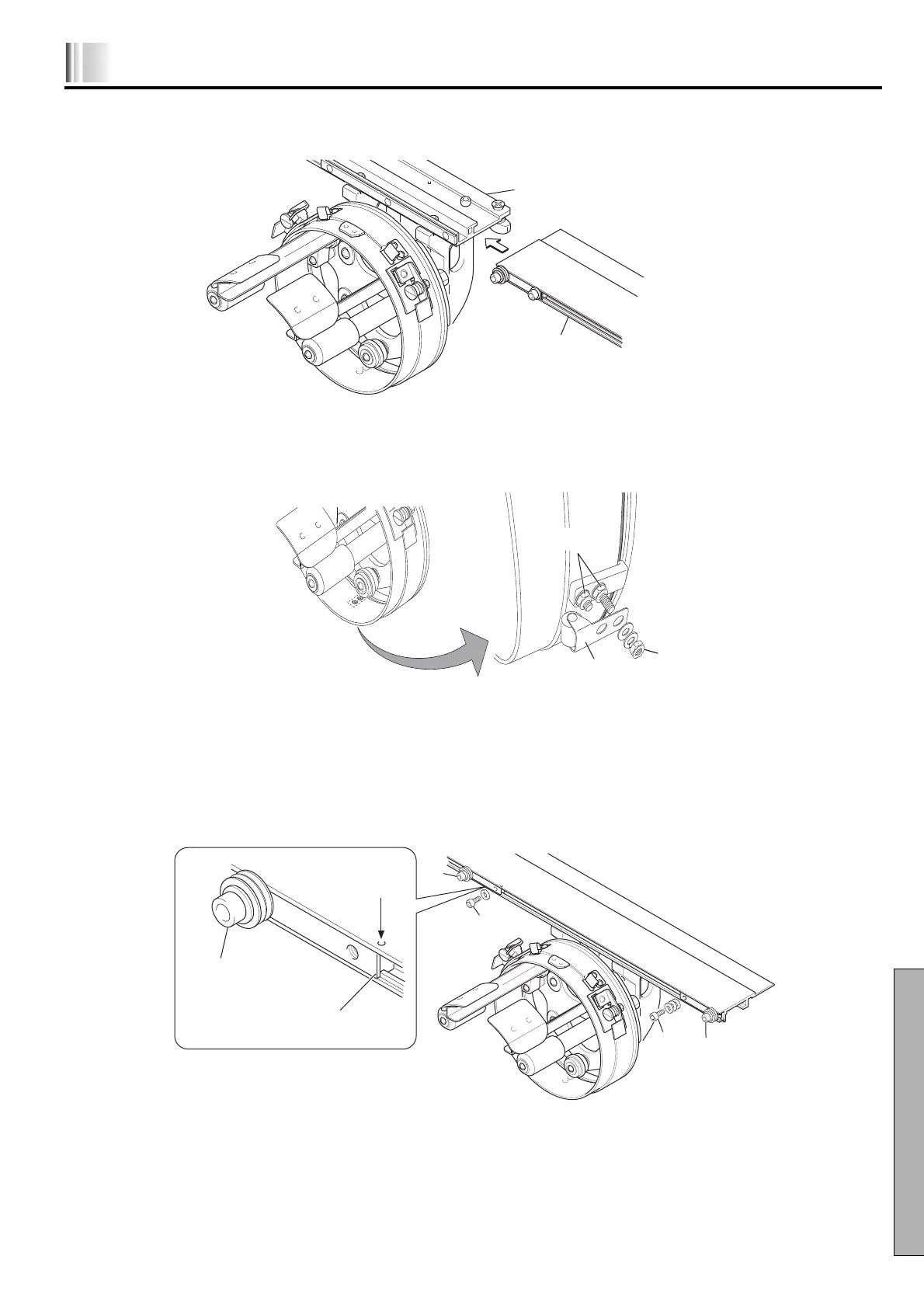

3. Slide the slide angle (6) and set it to the cap frame base (3).
4. Detach the nut (7) and base frame presser roller (8), and loosen the nut (9).
2. Attaching of drive wire
1. Remove the screw (1) and loosen the screws (2) and (3).
2. Align the inner side of the slide nut (4) with the position of the punched hole (5), and then tighten the screw (2).
6
3
7
8
9
1
1
3
2
4
5
2
