TAJIMA TEMX-C - Detaching of Border Frame; From Border Frame to Cap Frame; Switching of Table Position

Changing procedure of the frame
1-3
1
From border frame to cap frame
1.

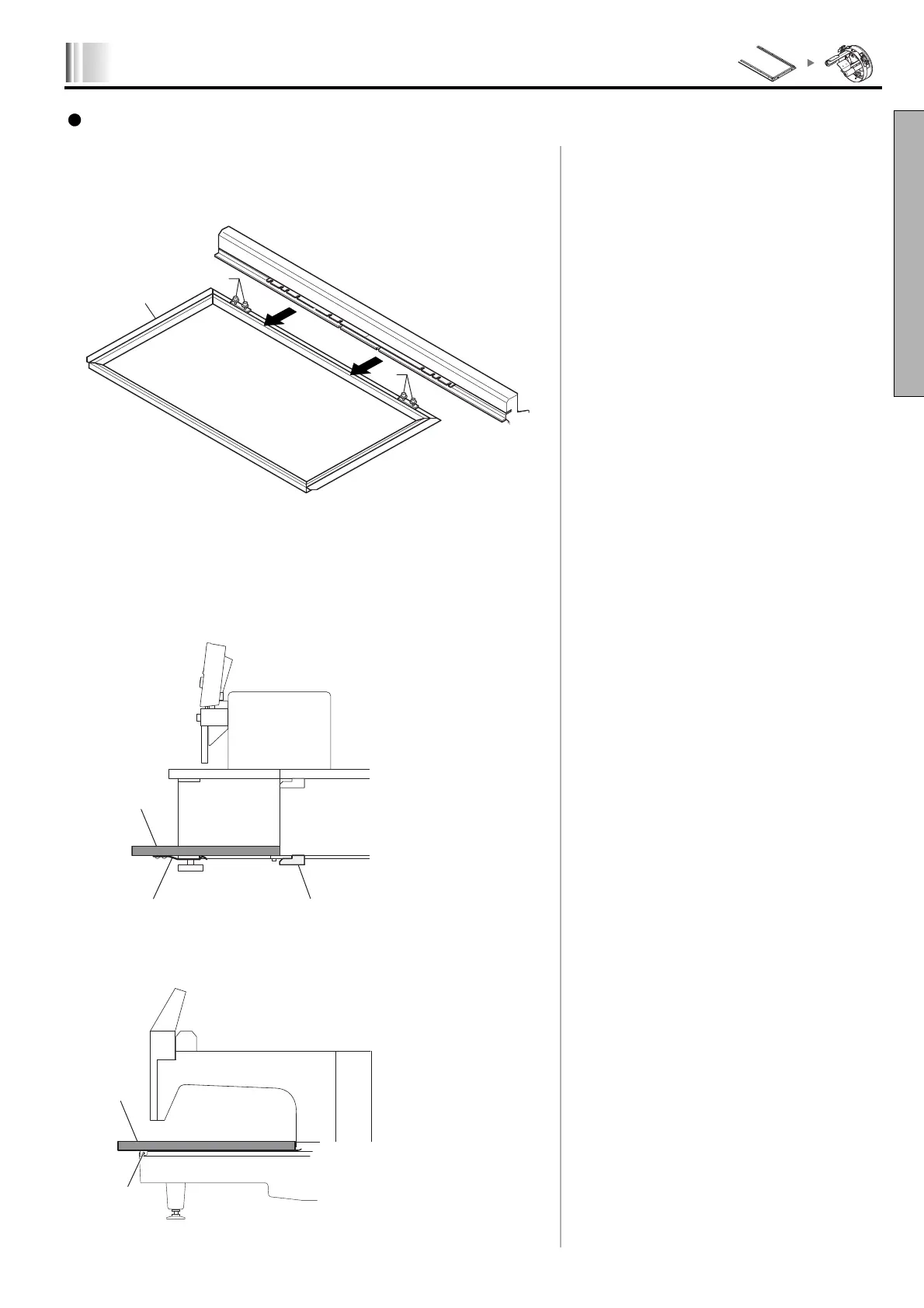

Detaching of border frame
1. Loosen the screw (1) to detach the border frame (2).
2. Switching of table position
In case of TFMX-C...................................................................................
1. Pull the table (1) to the front to take out, and attach the table to the position of cap
frame/tubular goods frame spec. (A).
In case of TEJTII-C/TEMX-C...................................................................
1. After removing the screw (4), pull the table (5) to the front to detach.
1
1
2
Push the table (1) into the position and fix it using the
table spring (2) and table stopper (3).
23
1
A
Keep the detached table (5) in a place where no trouble
against work occurs.
5
4
LX03
