Takeuchi TB128FR User Manual

2-9

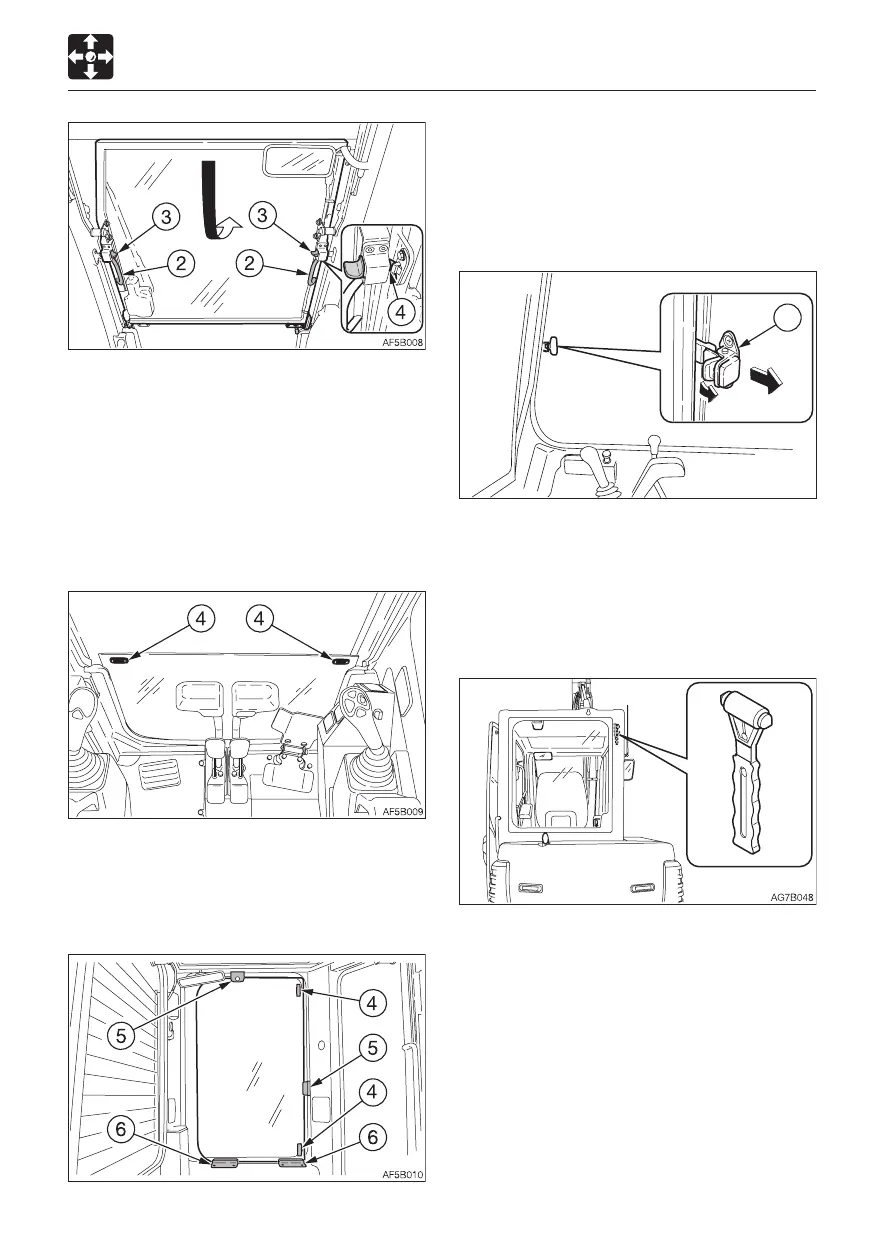

CONTROLS
LOWER FRONT WINDOW
Removing
1. Open the front window and stow it in the
ceiling.
2. Grasp the protruding parts (4) on the left
and right with your fingers and slowly lift
the lower front window.
3. Place the lower front window through the
guides (5) at the rear, and then set it on
the guide (6).
SIDE WINDOW
1. Grasp the catch (7), unlock it and open
the side window.
2. To close the side window, close it until a
click is heard.
CAB
AG7B020
7
4. Release your thumbs from the knobs (3),
and then push the front window forward to
secure it with the pins (4).
5. Move the lock pin (1) outside to lock the
window.
EMERGENCY HAMMER (OPTIONAL)
An emergency hammer is installed to be
used to escape from the cab in an
emergency. When escaping, break the
windows with the hammer.
Applicable machine models
128300018 or later
