3-10
OPERATION
INSPECTING THE ATTACHMENT
INTERFERENCE PREVENTION SYSTEM
Perform an inspection below to confirm that
the bucket, arm and boom do not touch the
cab if the boom or bucket is stopped by
itself after moved very close to the cab.

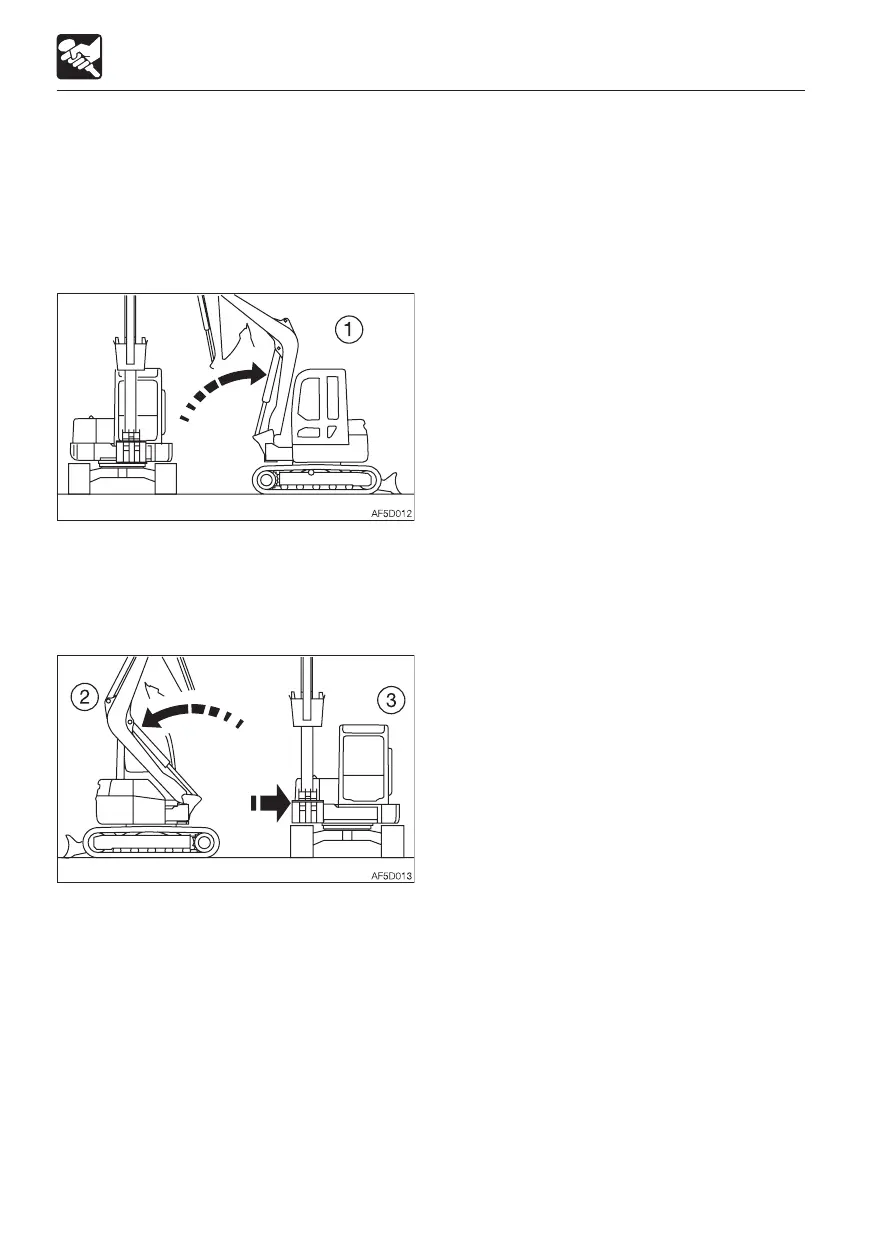

OPERATING THE MACHINE
1. Offset the boom to the front of the
operator’s seat and move the boom
closed to the cab.
Offset the boom to the right and move the
bucket close to the cab
2. Offset the boom fully to the right and
check if it can be set to the maximum rear
inclination.
3. Offset to the left by maintaining the
posture shown in the figure 2 above.
What to do if the boom automatically
stops
1. If the boom stops while it is being raised:
Operate the boom downward.
2. If the boom has stopped while offsetting
to the left:
a. Operate the boom downward to move
the boom out of the auto-stop range.
b. Offset the boom to the left.
Offsetting to the right is possible
regardless of the boom’s posture.
