2-30
CONTROLS
AUXILIARY HYDRAULIC LINES
These lines deliver the hydraulic oil necessary
for operating a hydraulic breaker, crusher or
other attachments.

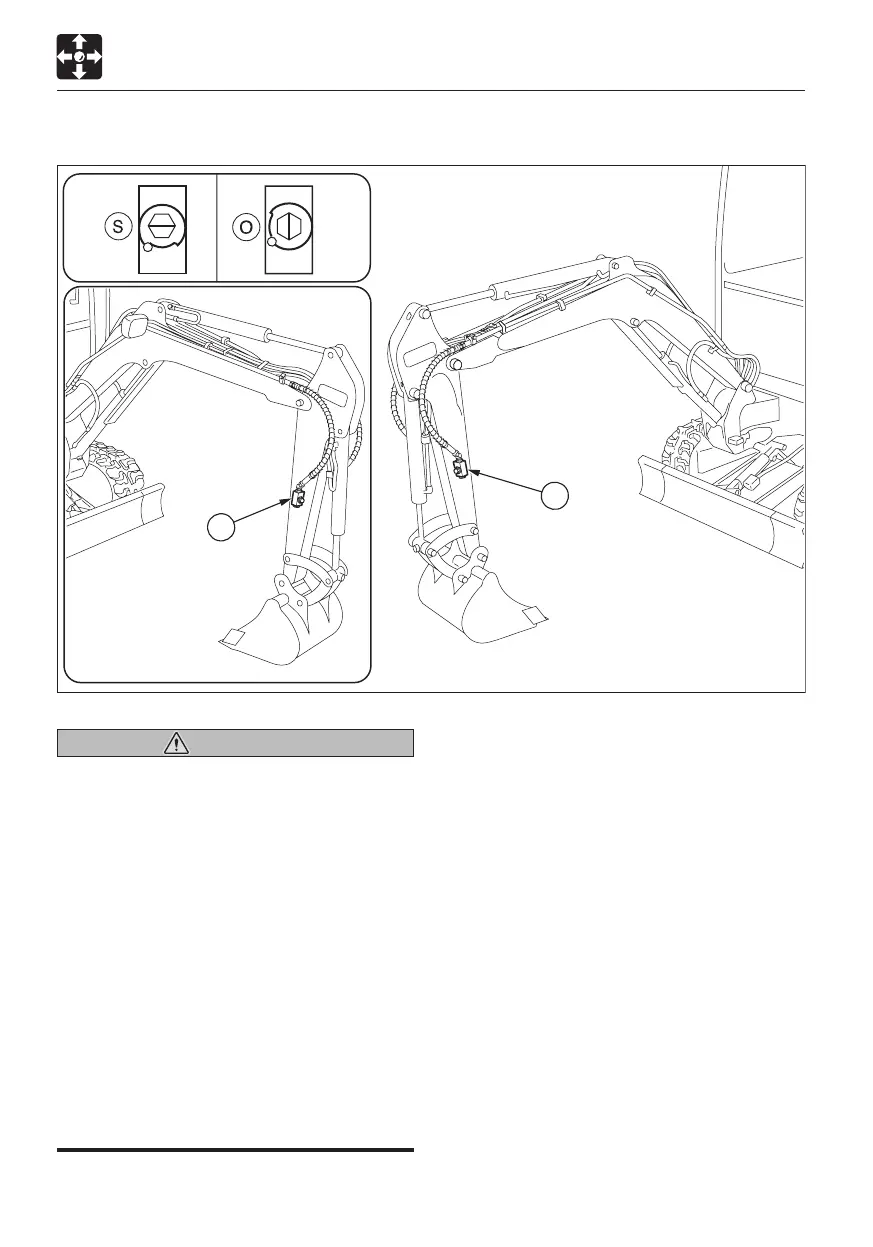

Stop valve
(S): Closed
(O): Open
WARNING
Oil may spurt out if pipes disconnected
before releasing the pressure in the
hydraulic system.
• Immediately after the engine is stopped
and while the safety lock lever is still in
the unlock position, turn the starter
switch to ON and press each auxiliary
hydraulic switch several times to
release the pressure from the auxiliary
hydraulic circuit (If equipped with an
accumulator).
• Slowly loosen the air bleeding plug to
relieve the internal pressure of the
hydraulic oil tank.
• When disconnecting hoses, stand to the
side and loosen them slowly to
gradually release the internal pressure
before removing.
ACCESSORIES
