2-18
CONTROLS
MAINTENANCE MODE DISPLAY
While in the data mode, press and hold the
DATA (2) side for three seconds to enter the
maintenance mode. The display changes
each time the DATA (2) side is pressed as
follows:

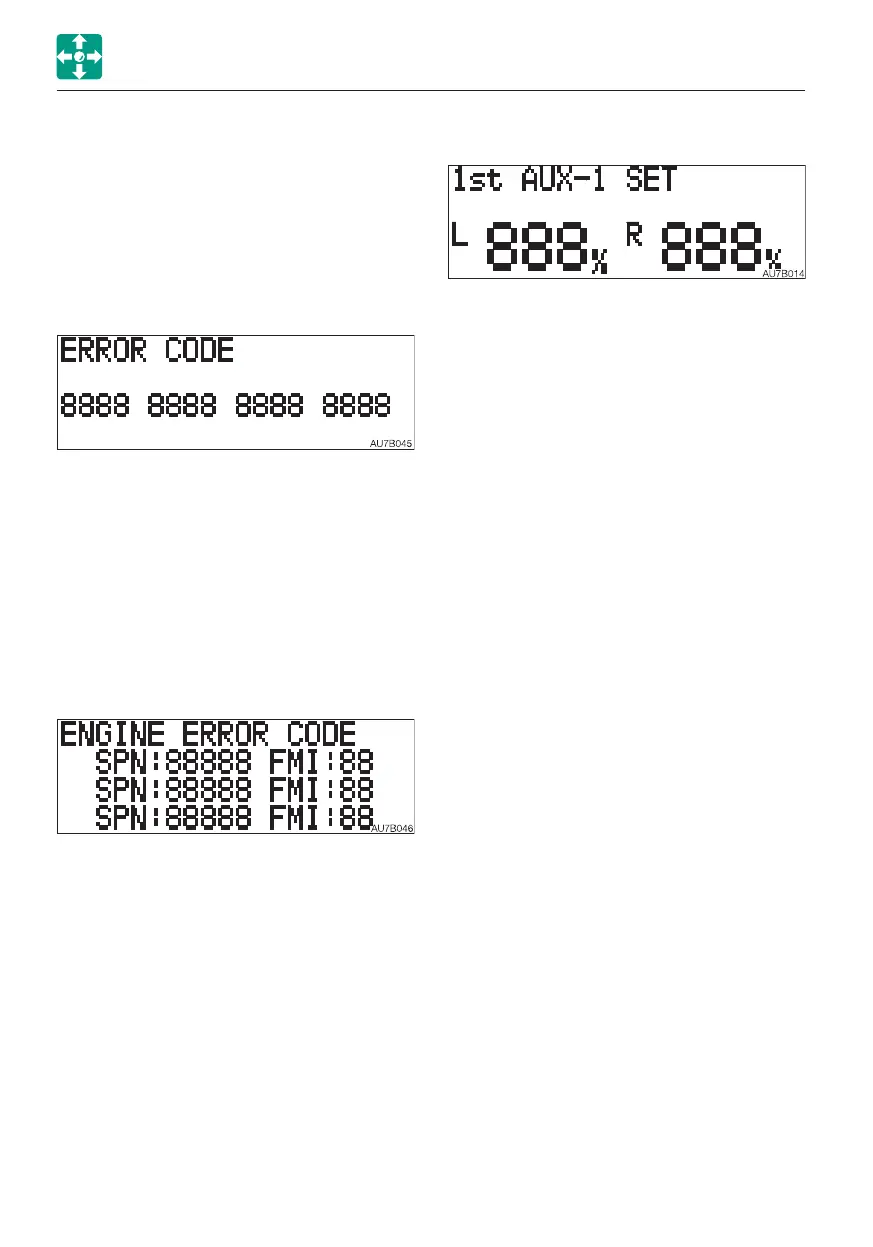

1. Vehicle error code
INSTRUMENT CLUSTER
IMPORTANT: If an error code appears,
immediately stop the operation and
contact your sales or service dealer for
help.
Displays four error codes, with the latest
code in the left.
Refer to “Vehicle error code list” on page
6-12.
2. Engine error code
IMPORTANT: If an error code appears,
immediately stop the operation and
contact your sales or service dealer for
help.
Displays three error codes, with the latest
code at the top.
Refer to “Engine error code list” on pages
6-13 to 6-15.
3. Auxiliary 1st-1 setting information
The flow rate of the Aux. 1st is displayed.
The flow rate, except the flow rate of the
Aux. 2nd, can be changed when the
engine is at rest and the ignition switch is
set to ON.
The actual flow rate is not in conjunction
with the value expressed in percent.
For setting the auxiliary piping flow rate,
ask your service or sales dealer.
Changing flow rate
a. Raise the safety bar to the lock position.
b. Press and hold the Aux. 1st flow rate
select switch for approximately three
seconds to cause the values on the L
side to flash.
c. Pressing the TRIP side of the Trip/Data
switch decreases the flow rate by 5%.
Pressing and holding it for one second
decreases the flow rate by 5%.
Pressing the DATA side of the Trip/Data
switch increases the flow rate by 5%.
Pressing and holding it for one second
increases the flow rate by 5%.
