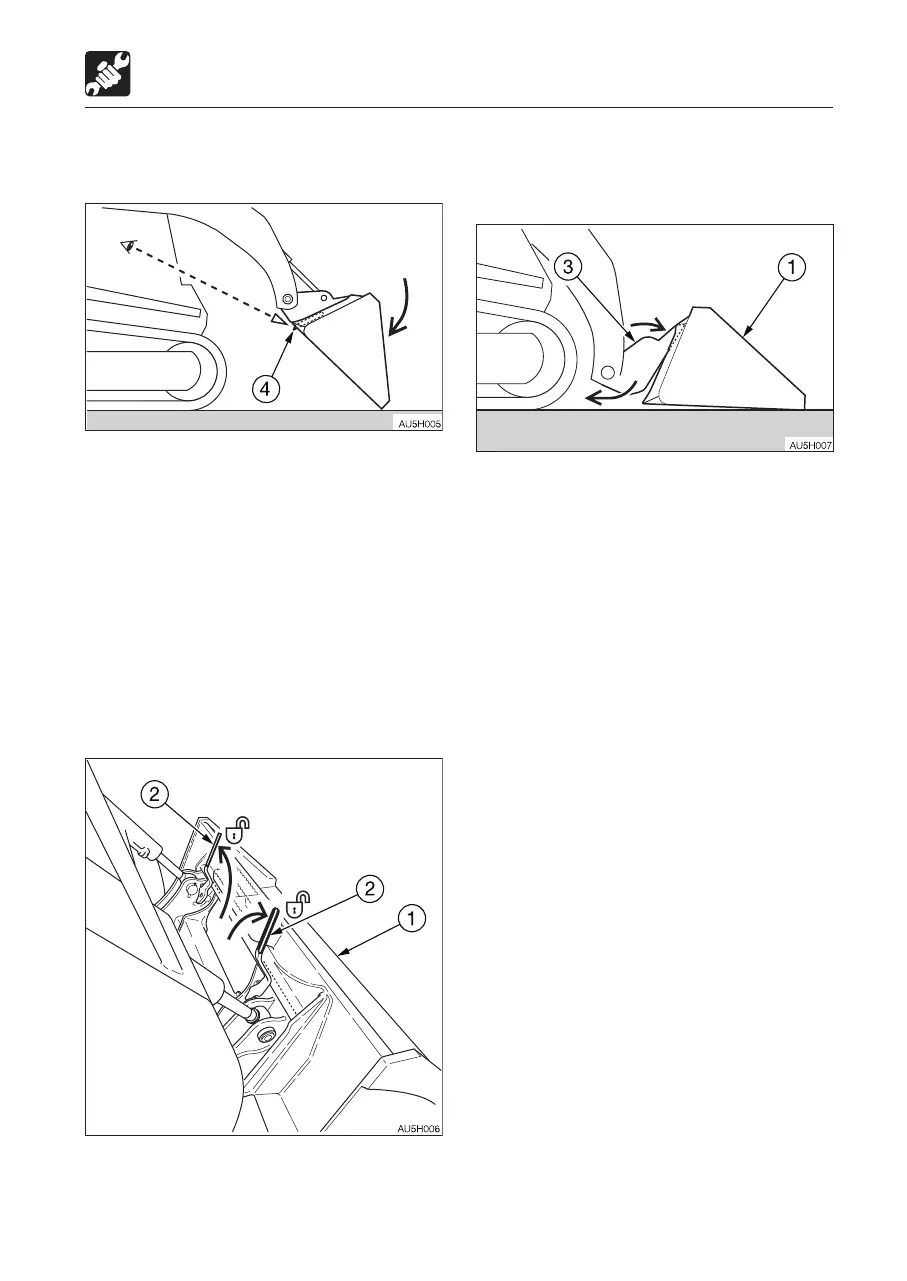

8. Push both lock levers (2) until they are
horizontal to engage the latch.
9. Check that the tips of the pins (4) are
projecting through the bracket holes on
the bucket to indicate that the latch is
properly engaged.
10. If the pins (4) do not come down to the
lock position, do not continue working;
disconnect the quick-hitch and
determined the cause instead.
Removal
1.
Keep the bucket (1) at the height of 25 to
50 mm (1 to 2 in.) above the ground.
2. Stop the engine, raise the safety bar and
release the seat belt.
4. Sit in the operator’s seat, lower the safety
bar, fasten the seat belt, and then start the
engine.
5.
Tilt the quick-hitch forward to disconnect
its upper edge from the bucket (1) upper
part (quick-hitch mount).
WHEN REQUIRED
3. Pull both lock levers (2) until they are
vertical to release the latch.
To Next Page
