MULTI-DATA DISPLAY
LCD

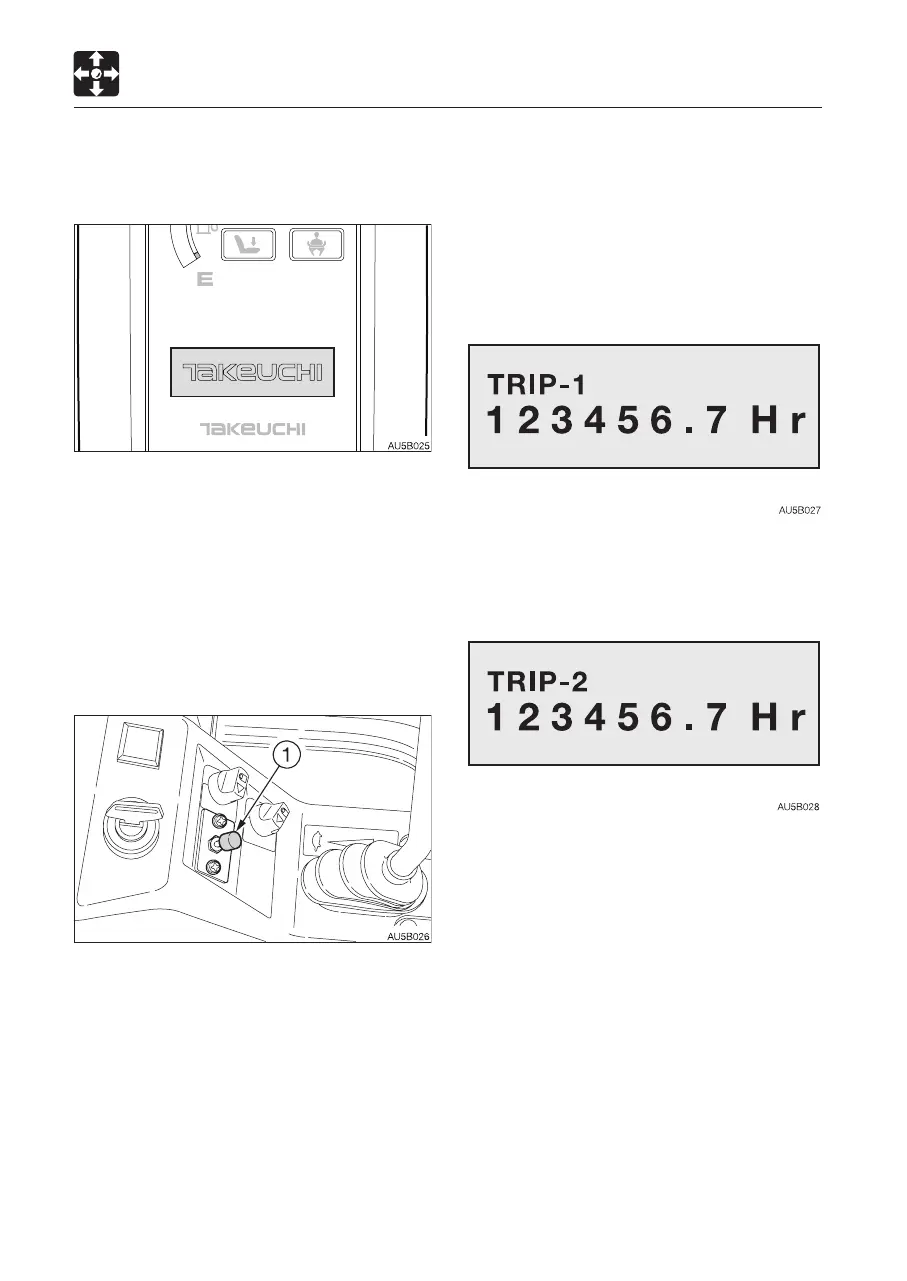

MULTI-DATA DISPLAY
When the ignition key is turned to ON, the
hour meter screen appears following the
message “Check the engine oil”.
Addition to the hour meter and the hour
meter trip display, the battery voltage and
err
or codes are displayed.
IMPORTANT: If an error code appears,
refer to “Error code list” and contact a
Takeuchi sales or service outlet for help.
Trip button
The trip button (1) is used to switch among
displays.
Displaying the hours
Used to display the operating time spent in
each section.
The display changes as the trip button (1) is
pr
essed.
1. Trip-1
2. Trip-2
To reset the meter to “0”, display the Trip
(Trip-1 or Trip-2) to be reset, and then
press and hold the trip button.
To Next Page
