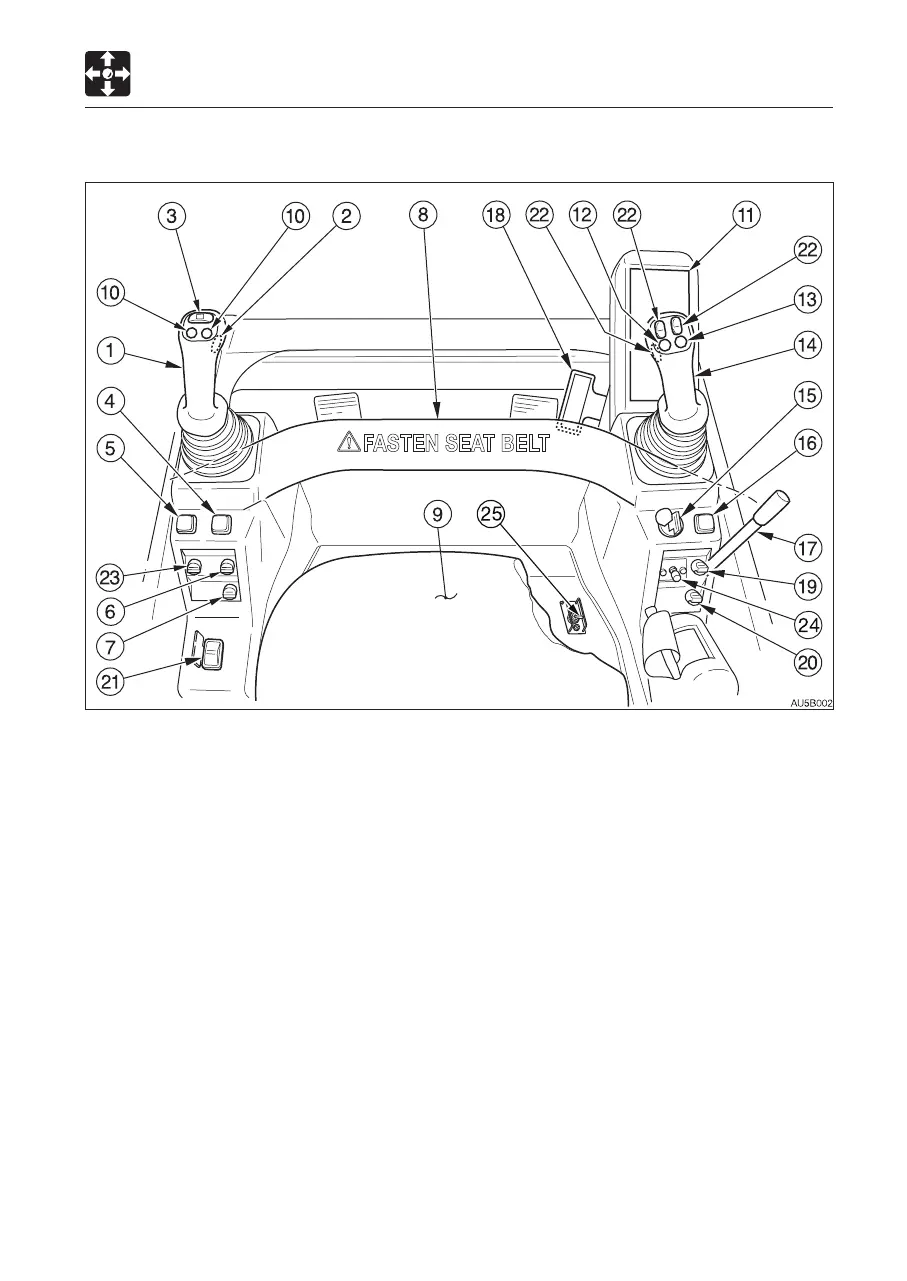

NAMES OF COMPONENTS
1. Left control lever
2. Travel speed button
3. Slider switch (for auxiliary hydraulic)
4. Detent mode switch (for auxiliary hydraulic)
5. Flow selector switch (Two-way/One-way)
6. Front wiper switch*
7. Rear wiper switch*
8. Safety bar
9. Seat
10. Auxiliary hydraulic buttons
11. Instrument cluster
12. Float button
13. Horn button
14. Right control lever
15. Ignition switch
16. High-flow switch*
17. Throttle lever
18. Throttle pedal*
19. Front light switch
20. Tail light switch
21. Hydraulic quick-hitch switch*
22. Multifunction buttons*
23. Auxiliary low operation switch
24. Trip button
25. Engine shutdown switch
*: Subject to the specifications or optional products selected
