Takeuchi TL230 User Manual

2-11
CONTROLS
Removing the stopper

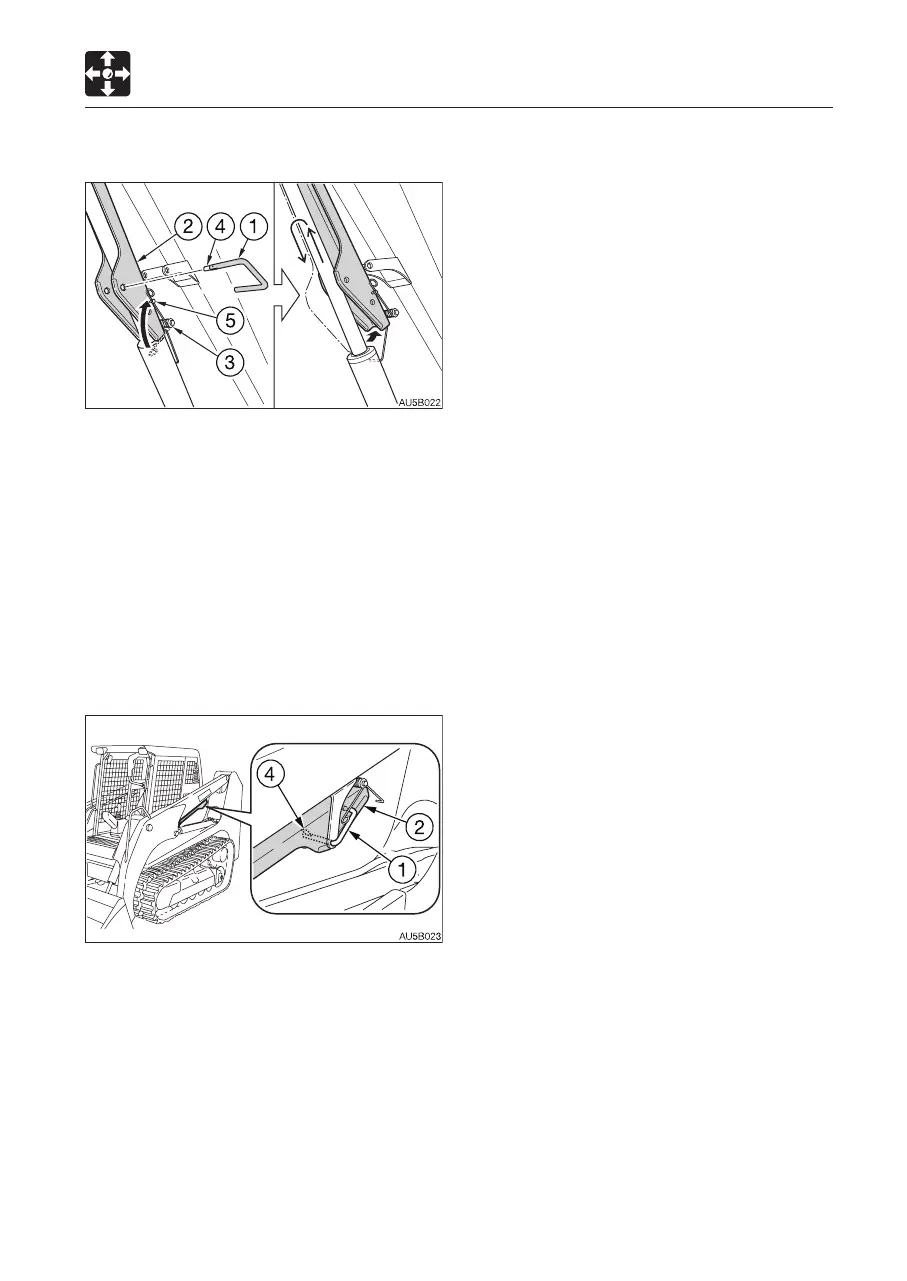

1. Align the orientation of the hook (4) on the
tip with that of the lock pin (1).
2.
Pull out the lock pin (1) from the lift arm
stopper (2).
3.
Pick up the end loop of the spring (3) with
your fingers, and then hang it onto the
hook (5) of the lift arm stopper (2).
4.
Sit in the seat, fasten the seat belt, start
the engine and lower the safety bar.
5. Raise the lift arms. The lift arm stopper (2)
disconnects from the cylinder rod.
6. Lower the lift arms to the ground, and
stop the engine.
LIFT ARM STOPPER
7. Raise the lift arm stopper (2) to the storage
position and insert the lock pin (1) through
lift arm stopper and bracket.
8.
To prevent the lock pin (1) from falling off,
set the hook (4) at a right angle to the lock
pin (1).
