TallyGenicom 2248 - LAN Interface

User's ManualD-12
INTERFACE INFORMATION
LAN INTERFACE
Cable
This printer supports the 10Base-T and 100Base-TX cables.

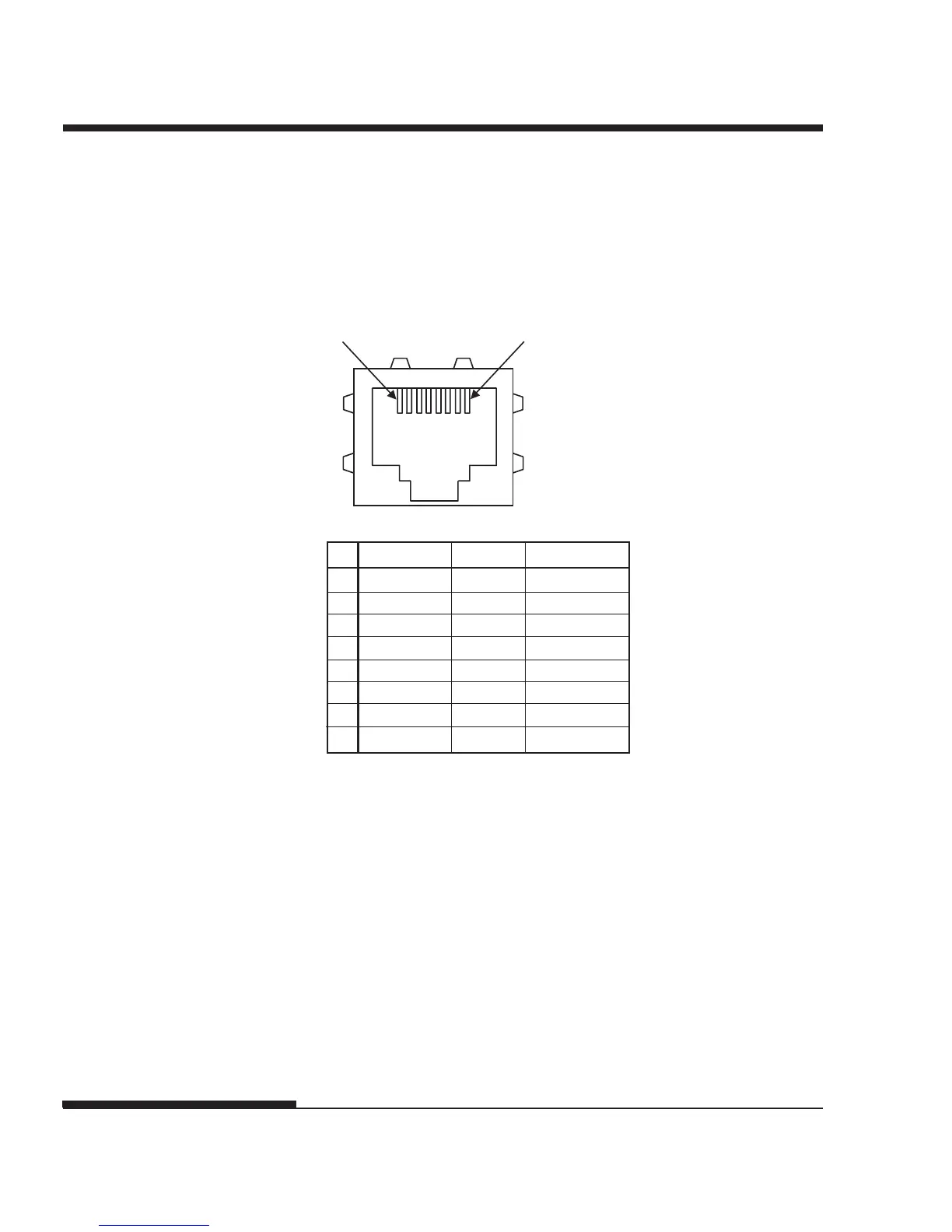

Connector pin alignment
1
8
No. Signal line name DIR Function
1 TXO+ NIC-HUB Transmit data +
2 TXO- NIC-HUB Transmit data -
3 RXI+ HUB-NIC Receive data +
4- - -
5- - -
6 RXI- HUB-NIC Receive data -
7- - -
8- - -
