GETTING ACQUAINTED
WITH YOUR PRINTER
Now that your printer is assembled, take a moment to become familiar with its
major parts.
Looking at the printer from the front right side, you can see the parts of the
printer shown in the figure below.

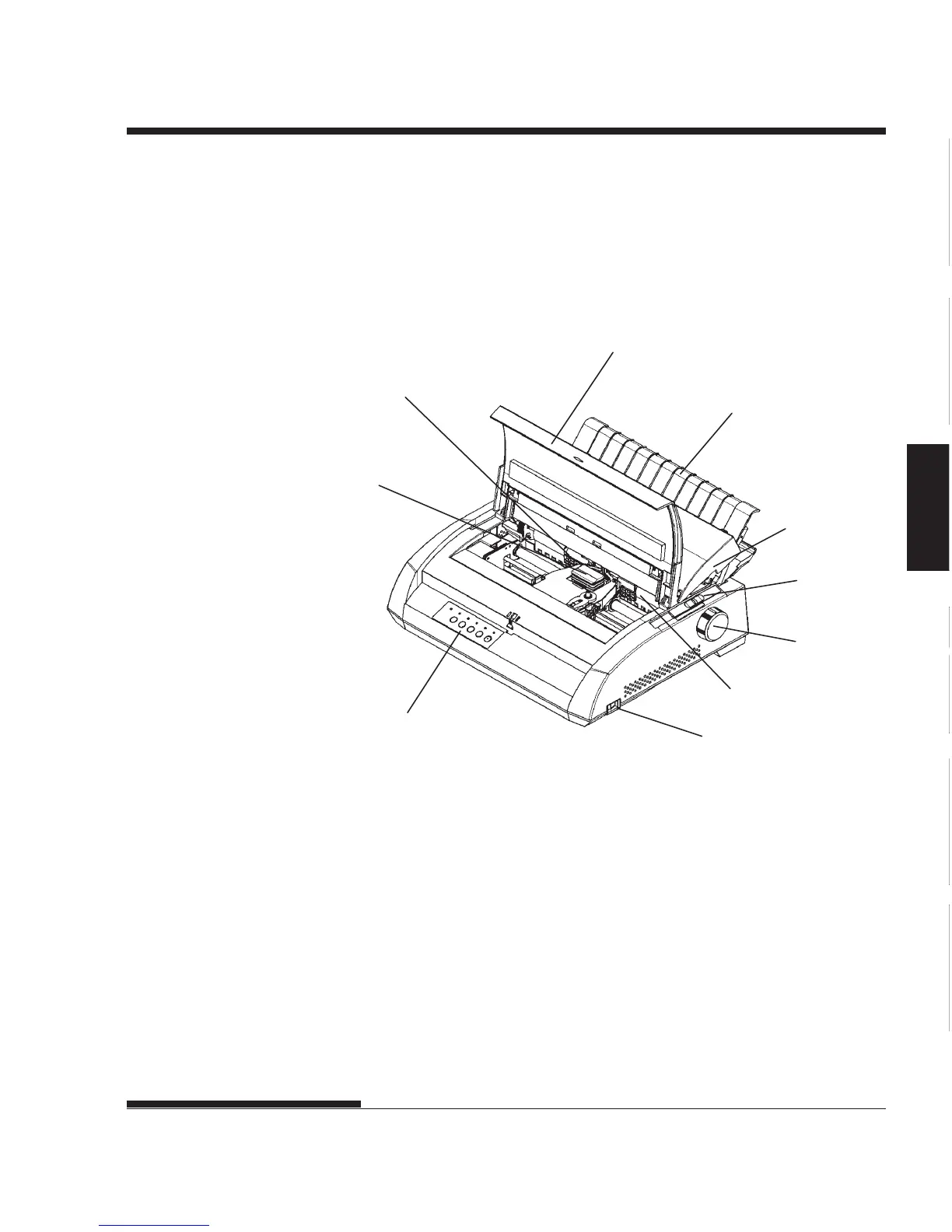

Printer components (front and right)
The printer control panel has the buttons and indicators used to load and feed
paper (see Chapter 3) and select print features (see Chapter 4). The control
panel also allows you to change the printer’s optional settings (see Chapter 5).
Print head
Print guide
Front cover
Cut sheet
stand
Paper
thickness
lever
Platen knob
Platen
Power
switch
Control panel
Acoustic
cover
