Taylor C712 - Major Mechanical Assemblies

PARTS
4-17
Models C712/C713
Parts
4

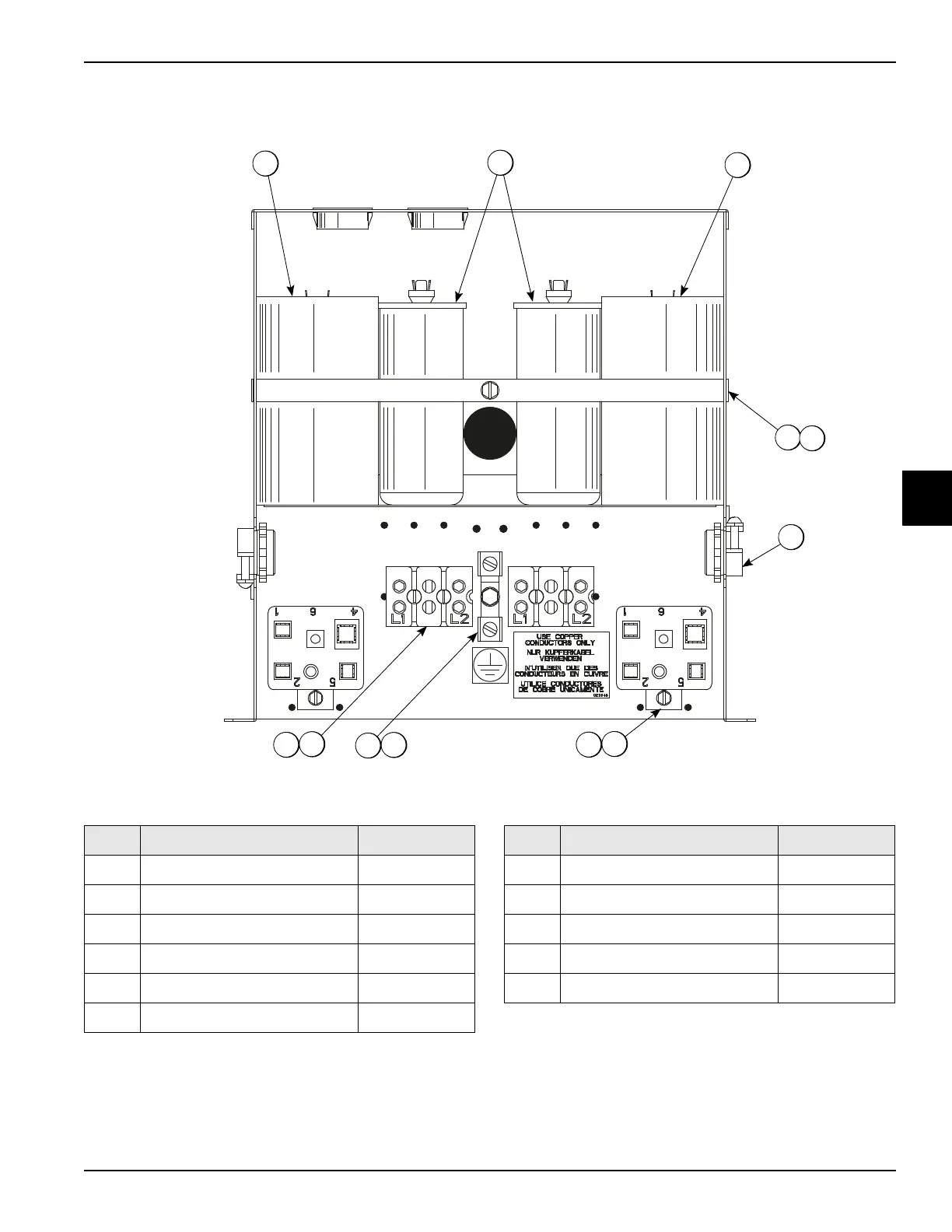

Box A.-Cap & Relay - X6540227SP - (Model C712 & C713/Bristol)
Figure 4-7
2
1
1
6
7
10
11
8
9
5
3
4
Item Description Part No.
1 Capacitor-Start 189-227UF 033044-1
2 Capacitor-Run 25UF/440V 037431
3 Strap-Capacitor 7-11/32 037890
4 Screw-10x3/8 Slotted Hex 015582
5 Harness-Wire 06543627SP
6 Relay-Start-Compressor 062363
Item Description Part No.
7 Screw-8x1/4 SLTD Hex 009894
8 Lug-Grounding 017667
9 Screw-10-32x3/8 UNSL 039381
10 Block-Terminal 2P L1,L2 039422
11 Screw-8x1 1/4 PHLP HD RD B 039420
