124
Parts
McDonald's Intelligap Grills
140423

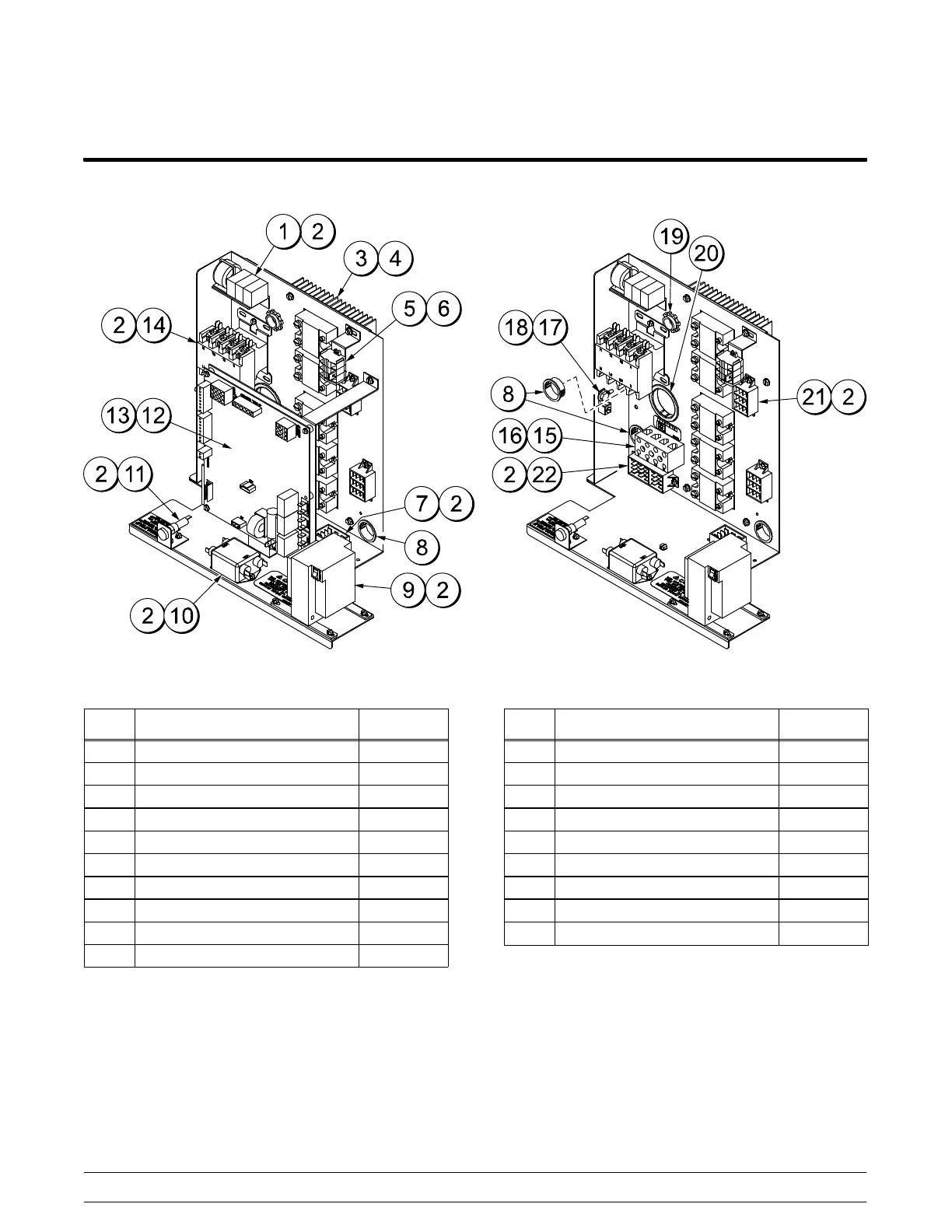

Control A.-Box - X83099-27 (C836 & C838)
Figure 67
ITEM DESCRIPTION PART NO.
1 FILTER A.-*WHT/BLK X78996-40
2 SCREW-8X1/2 SLTD HEX WASH 075763
3 RELAY A.-5 HEATER RIGHT X74212
4 SCREW-10-32X1/2 SERRATED 020982
5 HARNESS A.-RELAY/PCB X74222
6 SCREW-6X3/4 SLTD ROUND 039113
7 BLOCK-TERMINAL 1P 073423
8 BUSHING-SNAP 15/16 ID 023396
9 TRANS.-100VA 120/208/240 PRI 079800
10 FILTER-CORCOM 2VR1 032567
ITEM DESCRIPTION PART NO.
11 HOLDER-FUSE-15 A, 250 V 076299
13 SCREW-6-32X5/8 UNSLTD HWH 041363
14 RELAY-4P-40A 200/240 COIL 050869-27
15 BLOCK-TERMINAL 4P 1,2,L1,N 051647
19 CONNECTOR-BX 1/2 45 DEG 020511
20 BUSHING-SNAP 1-5/8ID X 2 OD 043637
21 BLOCK-TERMINAL 3P 20A 300V 051331
22 BLOCK-TERMINAL 2P .25 SPDE 051644
* HARNESS A.-COMP/TB X79503
*NOT SHOWN
