Taylor C834 - Control Keys

18
Controls and Systems
McDonald's Intelligap Grills
140922
Control Keys

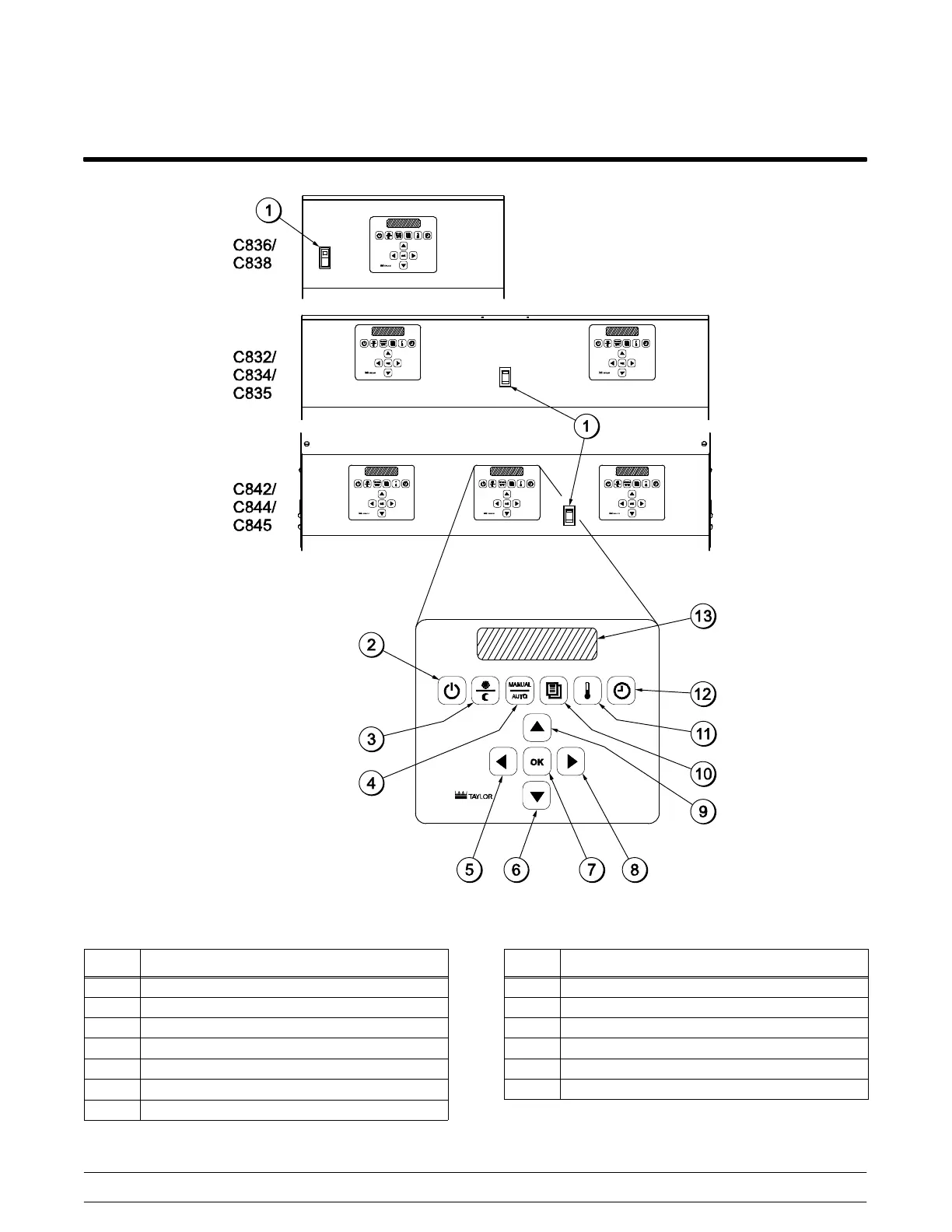

Figure 11
ITEM DESCRIPTION
1 FAN INTERLOCK SWITCH
2 ON/OFF KEY
3 AM/PM KEY
4 MANUAL/AUTO KEY
5 LEFT ARROW KEY
6 DOWN ARROW KEY
7 OK KEY
ITEM DESCRIPTION
8 RIGHT ARROW KEY
9 UP ARROW KEY
10 PROGRAM KEY
11 TEMPERATURE KEY
12 COOK TIME KEY
13 LIQUID CRYSTAL DISPLAY
