McDonald's Intelligap Grills
Parts
130606
Manifold Assembly - X78891-40 (C835 High Voltage)

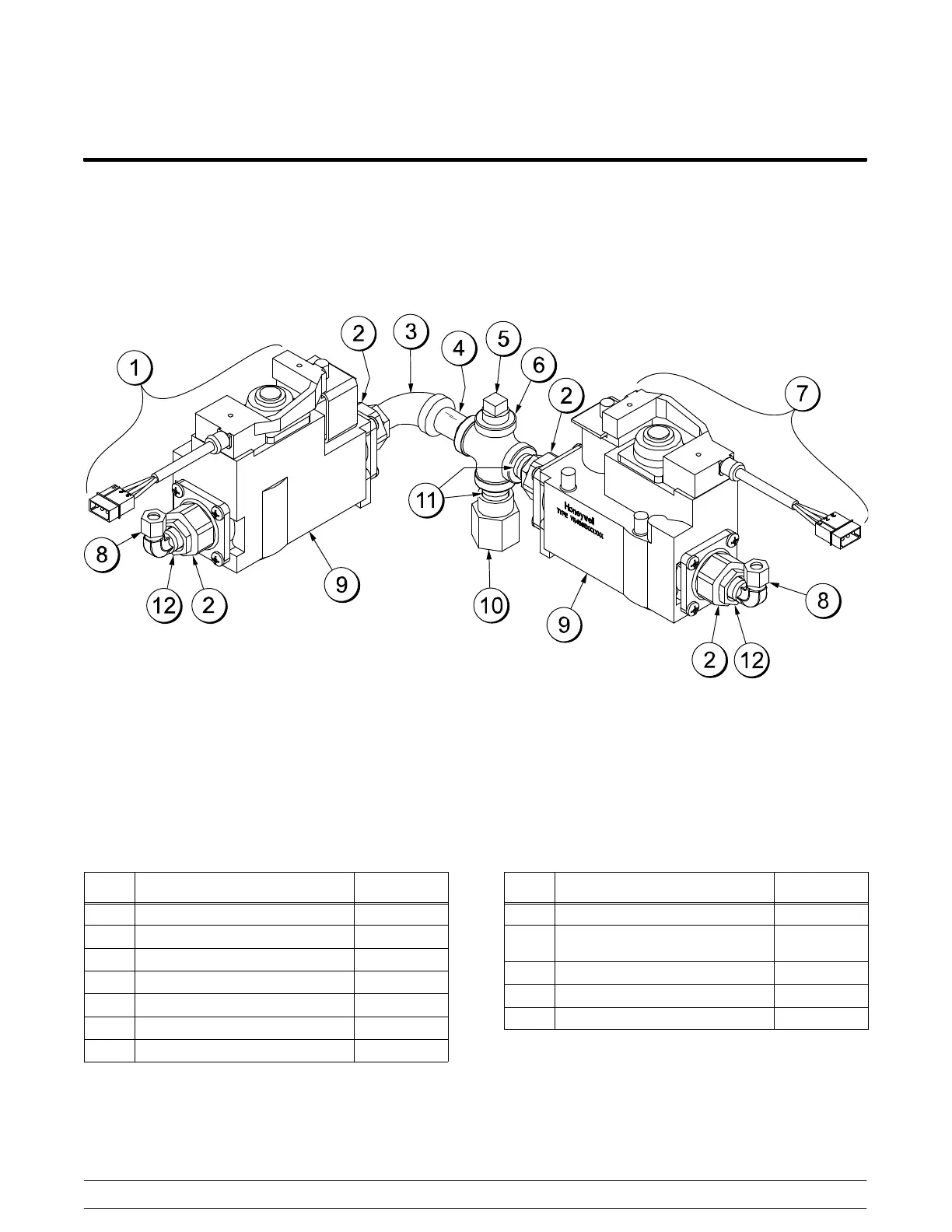

Figure 93
ITEM DESCRIPTION PART NO.
1 HARNESS A.-GAS VALVE X79573-36
2 KIT A.-GAS VALVE 1/2" NPT 072569
3 ELBOW-3/8MPTX3/8FPT-BLK 078890
4 NIPPLE-3/8MPT X 1-1/2 BLK 079130
5 PLUG-3/8MPT-BLACK 078907
6 FITTING-CROSS 3/8FPT-BLK 078906
7 HARNESS A.-GAS VALVE X79573-24
ITEM DESCRIPTION PART NO.
8 ELBOW-3/8 MPT X 5/16 076370
9 VALVE-GAS REDUNDANT
W/REGULATOR
078909-SER
10 FITTING-REDUCER-1/2FPT-3/8 077364
11 NIPPLE-3/8 MPT CLOSE BLK 076343
12 BUSHING-1/2"MPT X 3/8FPT 076837
