Taylor C834 User Manual

155
McDonald's Intelligap Grills
Parts
Manifold Assembly - 072695 (C842/C844/C845)

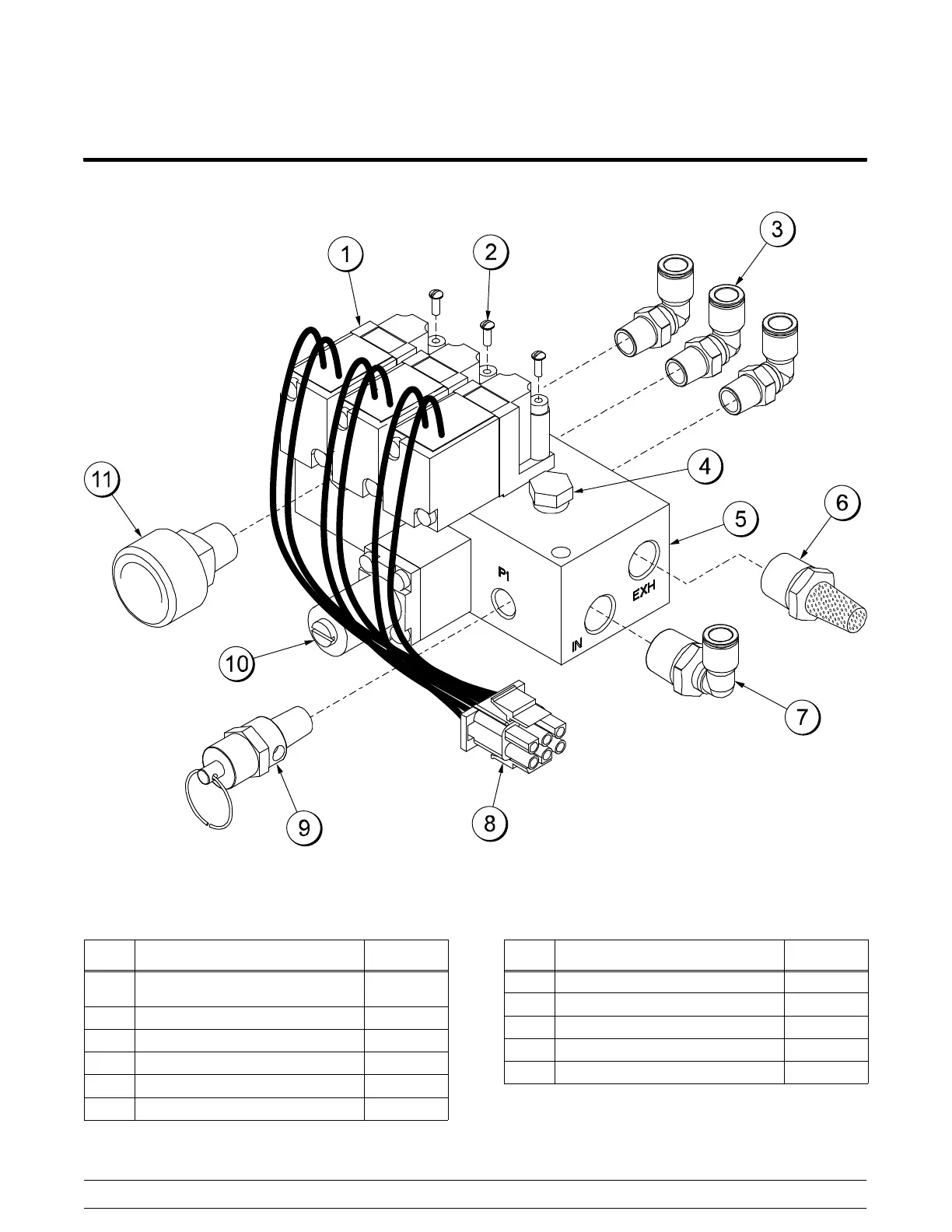

Figure 91
ITEM DESCRIPTION PART NO.
1 VALVE-SOLENOID 3 WAY 12
VDC
072695-1
2 SCREW-M3X0.5 072695-10
3 FITTING-SWIVEL ELBOW 1/4 OD 072695-5
4 PLUG-1/8 MP-NICKEL PLATED 020988
5 BLOCK-MANIFOLD .030 ORF. 072695-7
6 FITTING-DIFFUSER 1/4 MPT 072695-8
ITEM DESCRIPTION PART NO.
7 FITTING-SWIVEL ELBOW 1/4 OD 072695-6
8 CONNECTOR-MATE LOCK 6 CIR 028594
9 VALVE-PRESS. RELIEF 70 PSI 072695-4
10 REGULATOR-PRESS. 0-120 PSI 072695-2
11 GAUGE-130 PSI 1/8 MPT BACK 072695-3
