McDonald's Intelligap Grills

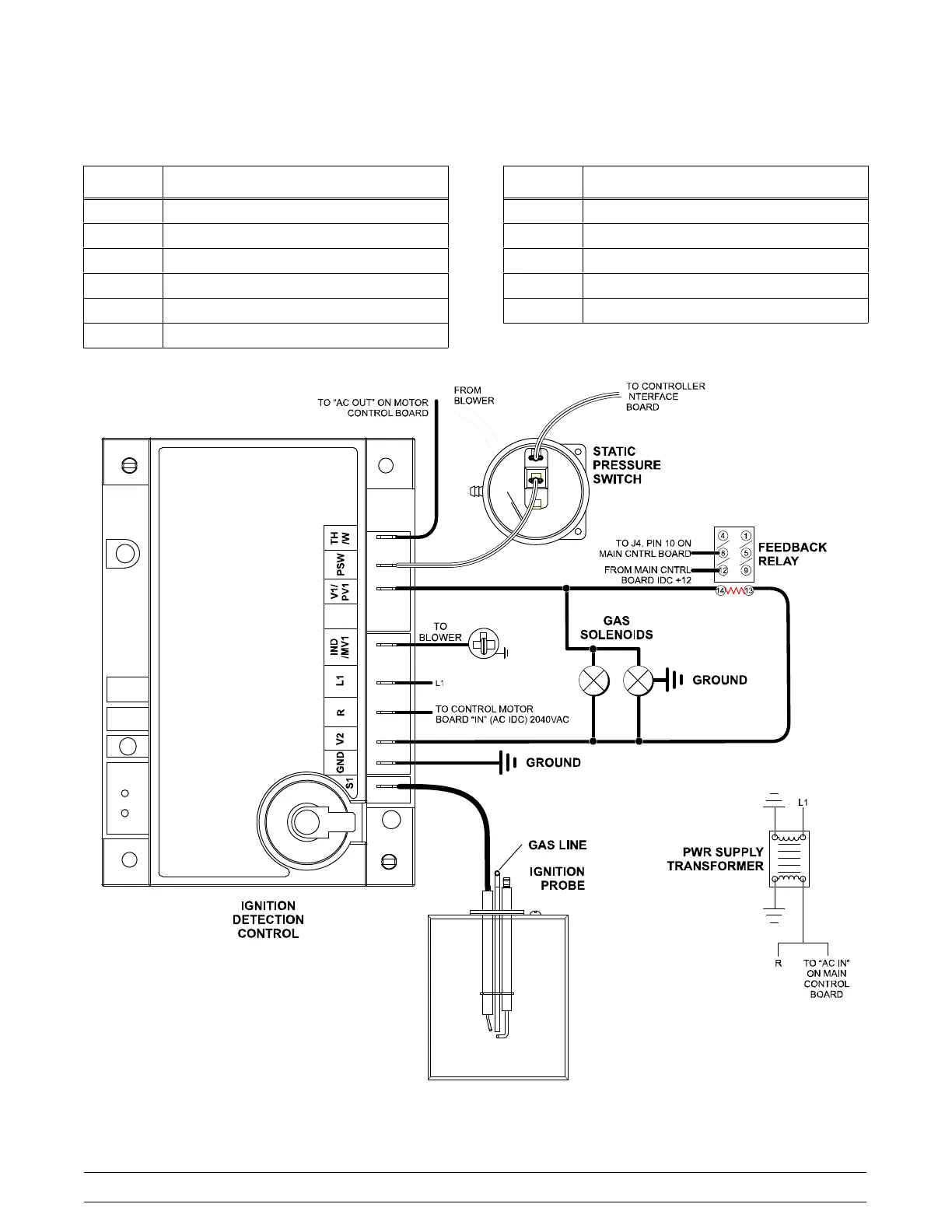

Fenwal IDC Pin Configuration
Pin Description
24VAC/R 24 VAC supply to processor (MCB Output)
TH/W Thermostat input (MCB Output)
PSW Pressure Switch Input
GND System Ground
V1 Gas Valve Power (Output) to Relay
V2 Valve ground
Pin Description
L1 120/240 VAC Input (Hot)
IND/V1 Inducer Blower (Output)
NC Alarm (Normally closed contacts)
S1 Remote Flame Sensor
FC+, FC Flame current test pins
