Parts
McDonald's Intelligap Grills
Compressor A.-Air - X73128-12 (60 Hz) -27 (50 Hz) (C832)

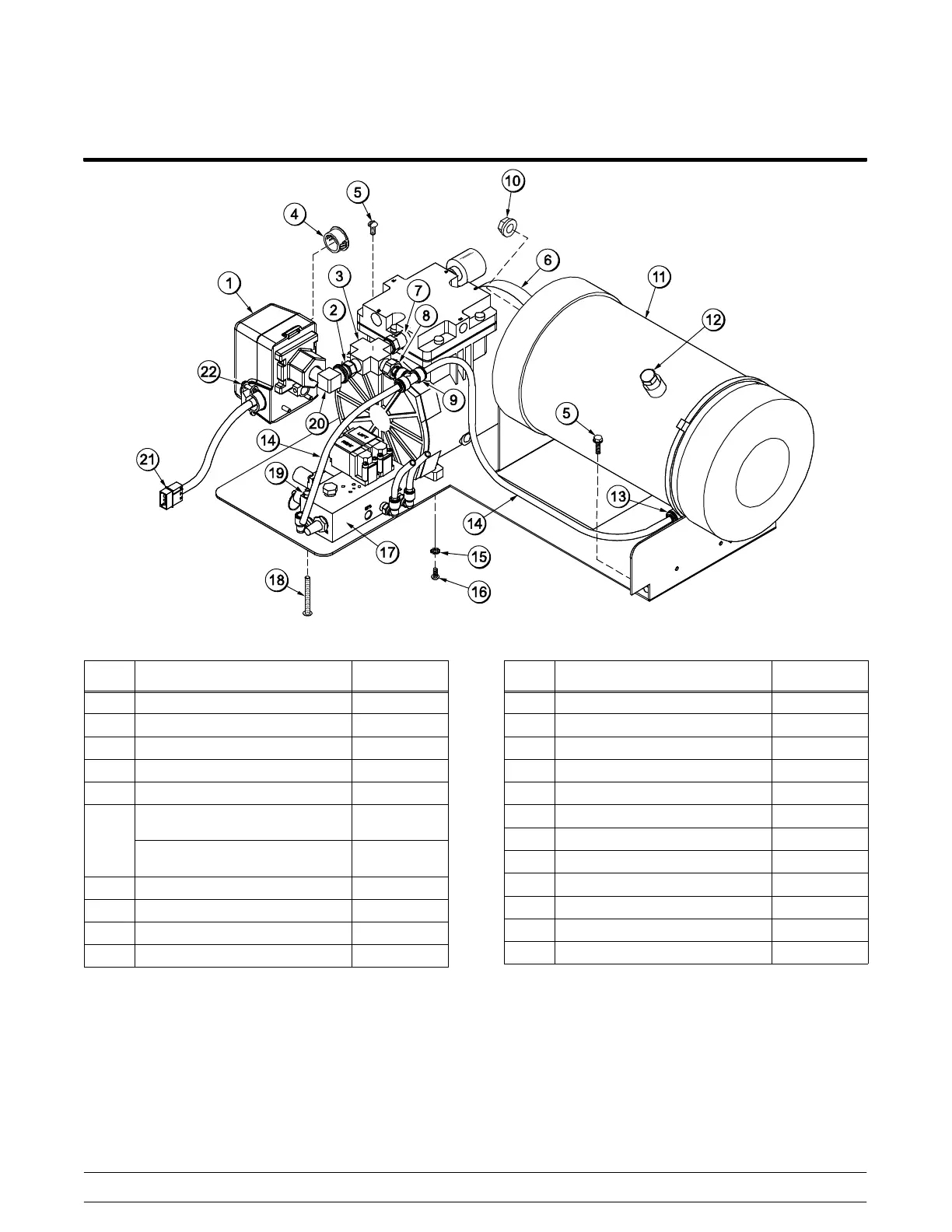

Figure 96
ITEM DESCRIPTION PART NO.
1 SWITCH-PRESSURE 240V,3HP 077879-C
2 NIPPLE-1/4PT X 1-3/8 BRASS 029937
3 CROSS-1/4 FPT * 1.562 SQ 077339-M
4 PLUG-HOLE 7/8 DIA. BLACK 010077
5 SCREW-8-32X3/8 SLTD RND 007544
6
COMPRESSOR-AIR-115V
(60 HZ)
075506SER1
COMPRESSOR-AIR-230V
(50 HZ)
032129SER2
7 VALVE-CHECK 1/4MP 020959
8 ADAPTOR-1/4MPT X 1/4 OD 052563-2
9 TEE-1/4OD X 1/4OD X 1/4OD 052562
10 NUT-3/8-16 WHIZ FLANGE LOC 017329
ITEM DESCRIPTION PART NO.
11 TANK-ACCUMULATOR 10 LB 078820
12 PLUG-1/4 MP BRASS 027747
13 FITTING-1/4MPTX1/4OD TUBE 052560-2
14 TUBE-.170 ID X .250 OD R403021
15 WASHER-#8 EXT TOOTH LOC 000964
16 SCREW-8-32X3/8 SLTD RND 007544
17 MANIFOLD A. (SEE PG 153) 073129
18 SCREW-10-32X1-3/4 SLTD RD 013195
19 NUT-10-32 SMALL PATTERN 059663
20 ELBOW-1/4PT-STREET-BRASS 035573
21 CONNECTOR-MATE LOCK-3 044823
22 CONNECTOR-BX 3/8 STR 014569
