161
McDonald's Intelligap Grills
Parts

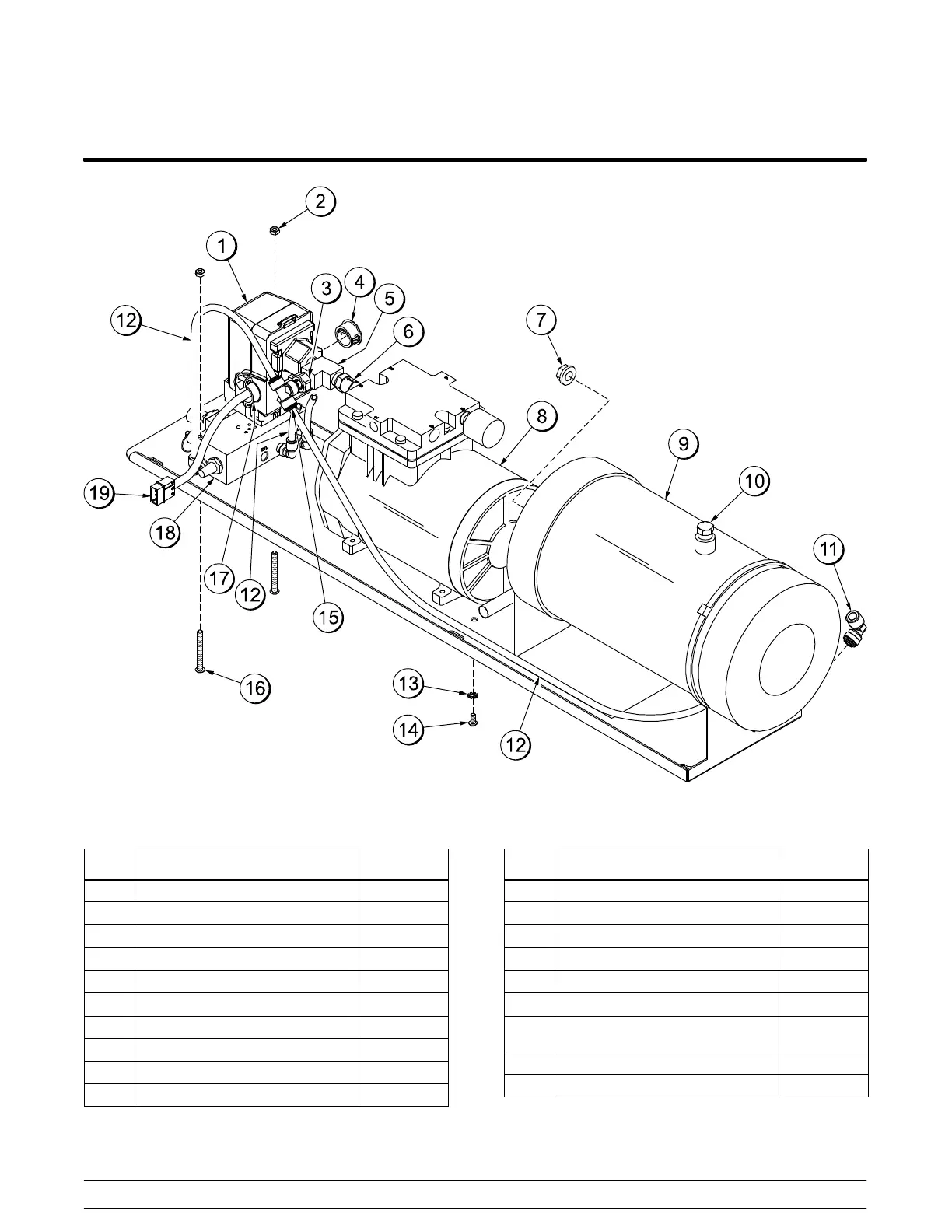

Compressor A.-Air - X73288-27 (C834)
Figure 97
ITEM DESCRIPTION PART NO.
1 SWITCH-PRESSURE 240V 3HP 077879-C
2 NUT-10-32 SMALL PATTERN SS 059663
3 ADAPTOR-1/4MPT X 1/4 OD 052563-2
4 PLUG-HOLE 7/8 DIA. BLACK 010077
5 TEE-1/4FPT X 1/4MPT X 1/4FPT 021277
6 VALVE-CHECK 1/4MP 020959
7 NUT-3/8-16 WHIZ FLANGE LOC 017329
8 COMPRESSOR-AIR-115V 60HZ 032129-27
9 TANK-ACCUMULATOR 10LB 078820
10 PLUG-1/4MP BRASS 027747
ITEM DESCRIPTION PART NO.
11 FITTING-1/4MPTX1/4OD TUBE 052560-2
12 TUBE-.170ID X .250OD R403021
13 WASHER-#8 EXTERNAL TOOTH 000964
14 SCREW-8-32X3/8 SLTD ROUND 007544
15 TEE-1/4OD X 1/4OD X 1/4OD 052562
16 SCREW-10-32X1-3/4 SLTD RND 013195
17 CONNECTOR-BX 3/8 STR-2
SCREW
014569
18 MANIFOLD A. (SEE PG 153) 073129
19 CONNECTOR-MATE LOCK-3 044823
To Next Page
