34
Controls and Systems
McDonald's Intelligap Grills
140429
System Set Up Items
Probe Calibration
Thermocouple probes are located from front to rear
on the lower grill plates and upper platens. The
measurements should be taken from front to back
and left to right on all model grills.

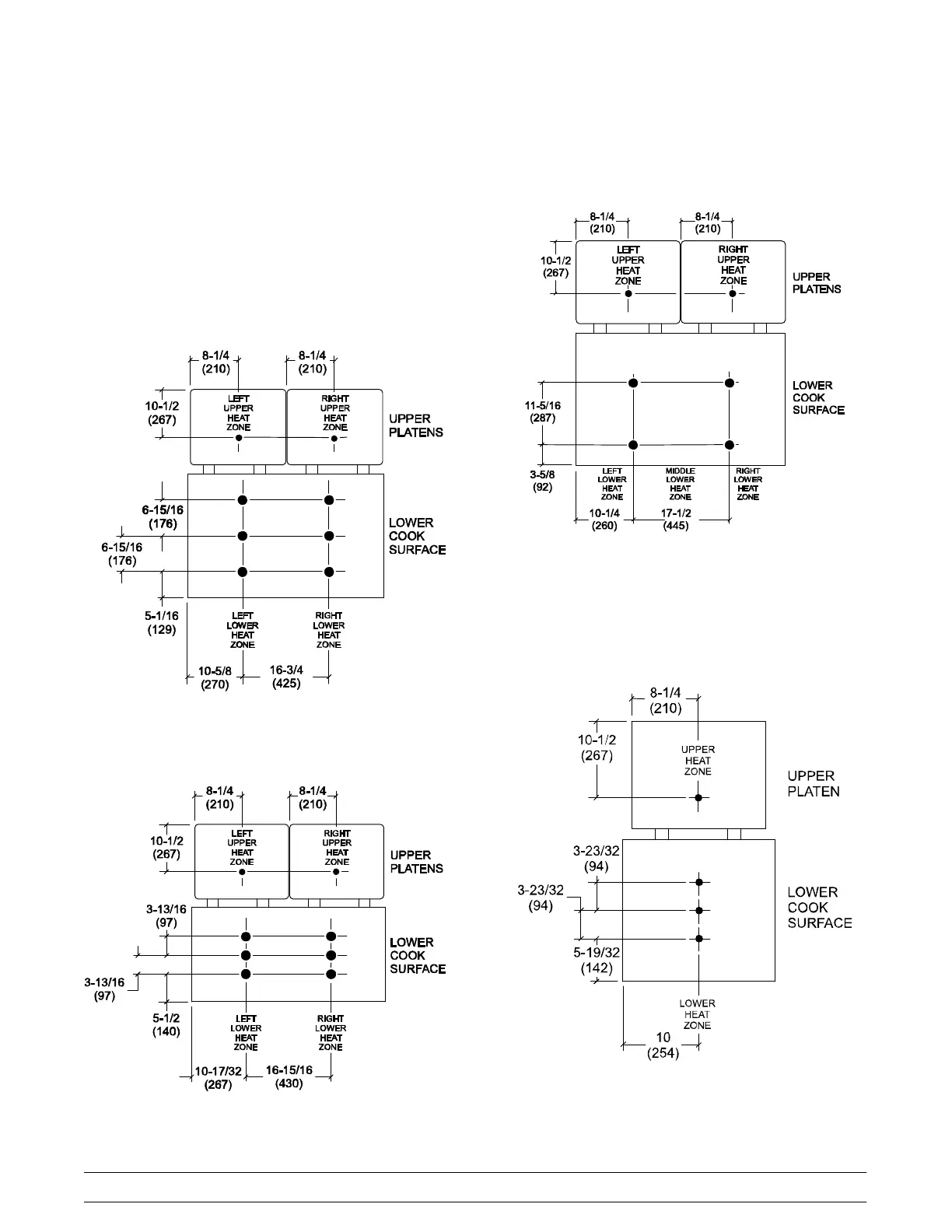

Figure 14 below identifies the probe locations for the
Model C832 grill.
Model C832
Figure 14
Figure 15 below identifies the probe locations for the
Model C834 grill.
Model C834
Figure 15
Figure 16 below identifies the probe locations for the
Model C835 grill.
Model C835
Figure 16
Figure 17 below identifies the probe locations for the
Model C836 grill.
C836
Figure 17
