Taylor PH61 - Mix Pump Assembly (X57028-XX)

OPERATOR PARTS IDENTIFICATION
4-5
PH61 Peristaltic Pump
Operator Parts Identification
4

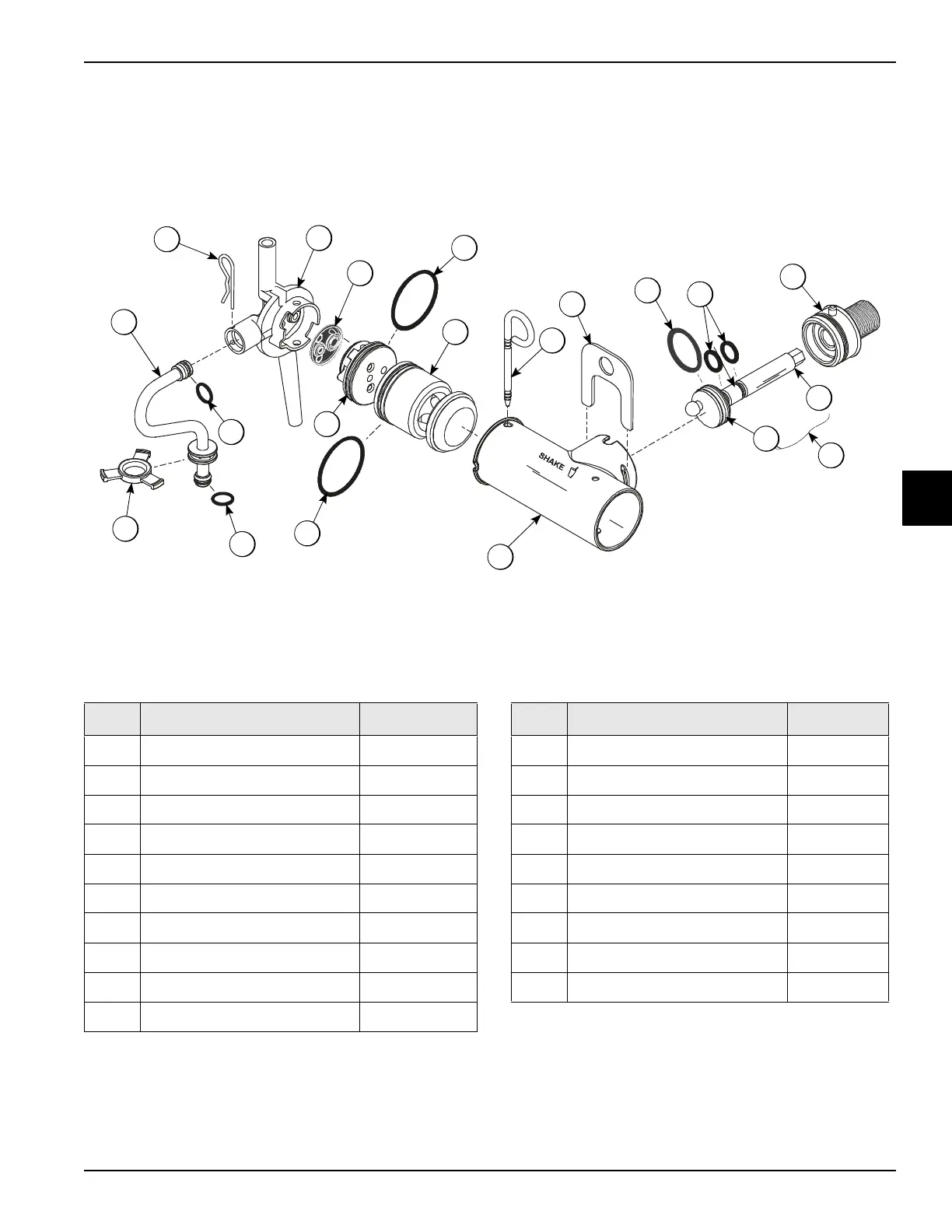

X57028-XX Pump A. - Mix Simplified
Figure 4-3
4
1
2
14
10d
11
8
10b
10a
9
12
13
7
6
4
3
8
5
10
10c
Item Description Part No.
1–7 Pump A.-Mix Simplified Shake X57028-14
1 Cylinder-Pump Hopper Shake 057944
2 Pin-Retaining X55450
3 Piston-Pump-Simplified 053526
4 O-ring-PKG *50 to Bag* 020051
5 Cap-Valve Body Shake 056873-14
6 Gasket-Simplified Pump Valve 053527
7 Adaptor-Mix Inlet-Shake- Blue 054944
8 O-ring-PKG *50 to Bag* 016132-SER
9 Pin-Cotter-Hairpin-1/8DIA 044731
Item Description Part No.
10 Shaft A.-Drive-Mix Pump- Hopper X41947
10a Crank-Drive-Hopper Mix Pump 039235
10b Shaft-Drive-Mix Pump-Hopper 041948
10c O-ring-PKG *25 to Bag* 048632
10d O-ring-PKG *25 to Bag* 008904
11 Clip-Retainer-Mix Pump 044641
12 Tube A.-Feed-Hopper- Shake X56522
13 Ring-Check-Feed-Tube 056524
14 Sleeve A.-Mix Pump X44761
