7
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
DOOR PREPARATION
3.2

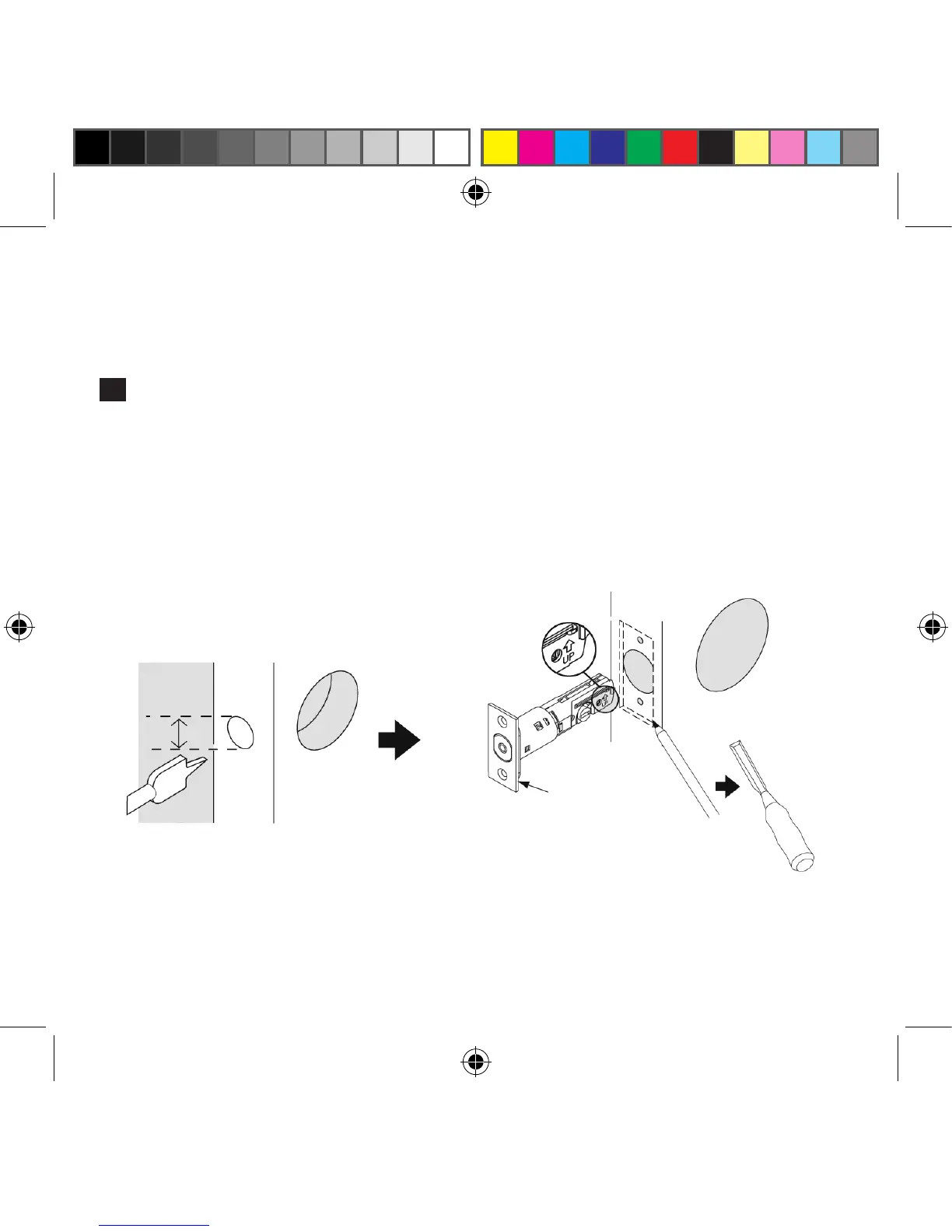

DRILL HOLES
c. Drill a 1” (25 mm) hole in the door edge for the latch.
d. Use faceplate as a pattern for mortise and pilot holes.
Chisel 5/32” (4 mm) deep. Faceplate should fit flush.
Note: For drive-in latch, simply insert latch.
e. Install as shown for appropriate latch type. Ensure bevel
faces door jamb.
CHISEL 5/32”
(4 mm) DEEP
1”
(25 mm)
FACEPLATE
c.
d.
OUTLINE
