TB-Electronics F-SCAN COMPACT - ZAPPER Function Details; ZAPPER Program Setup and First Phases

- 16 -
ZAPPER function (as described by Dr. H. R. CLARK)
The F-SCAN COMPA CT provides a traditional ZAPPER–program. It is
formed by 9 time phases of equal length. If the TIMER is set to 7:00
minutes – and the program started – the function runs automatically as
follow s for 63:00 minutes:
A first active time phase is follow ed by 3 inactive ones, leading to a second
active time phase, follow ed again by 3 inactive ones. The program
completes w ith a third active time phase.
Steps to the progra m and its sequence in detail.

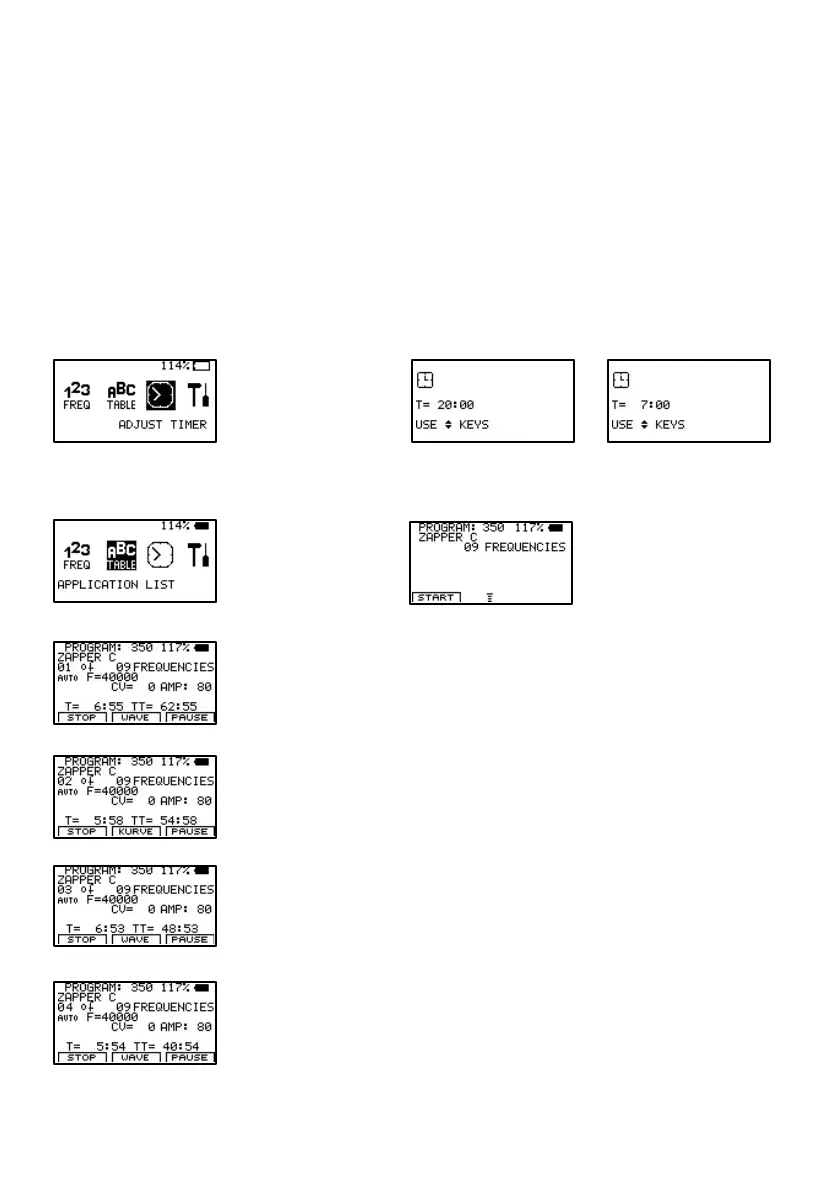

The ZAPPER–program is stored in position 350 of the application list.
set TIMER to
7:00 minutes
move to position
350, confirm and
press START
The first active 7-minute phase
01 of 09 phases, frequency F=40000Hz, amplitude
AMP: 80%, total runtime left TT= 62:55
The first inactive 7-minute phase
02 of 09 phases, frequency F=0Hz, amplitude
AMP: 0%, total runtime left TT= 54:58
The second inactive 7- minute phase
03 of 09 phases, frequency F=0Hz, amplitude
AMP: 0%, total runtime left TT= 48:53
The third inactive 7- minute phase
04 of 09 phases, frequency F=0Hz, amplitude
AMP: 0%, total runtime left TT= 40:54
