TIMER

Change the runtime per frequency

The factory default for each frequency value issued by the F-SCA N

COMPACT is 3:00 minutes. The user can adjust it in steps of 15 seconds

betw een 0:30 and 60:00 minutes.

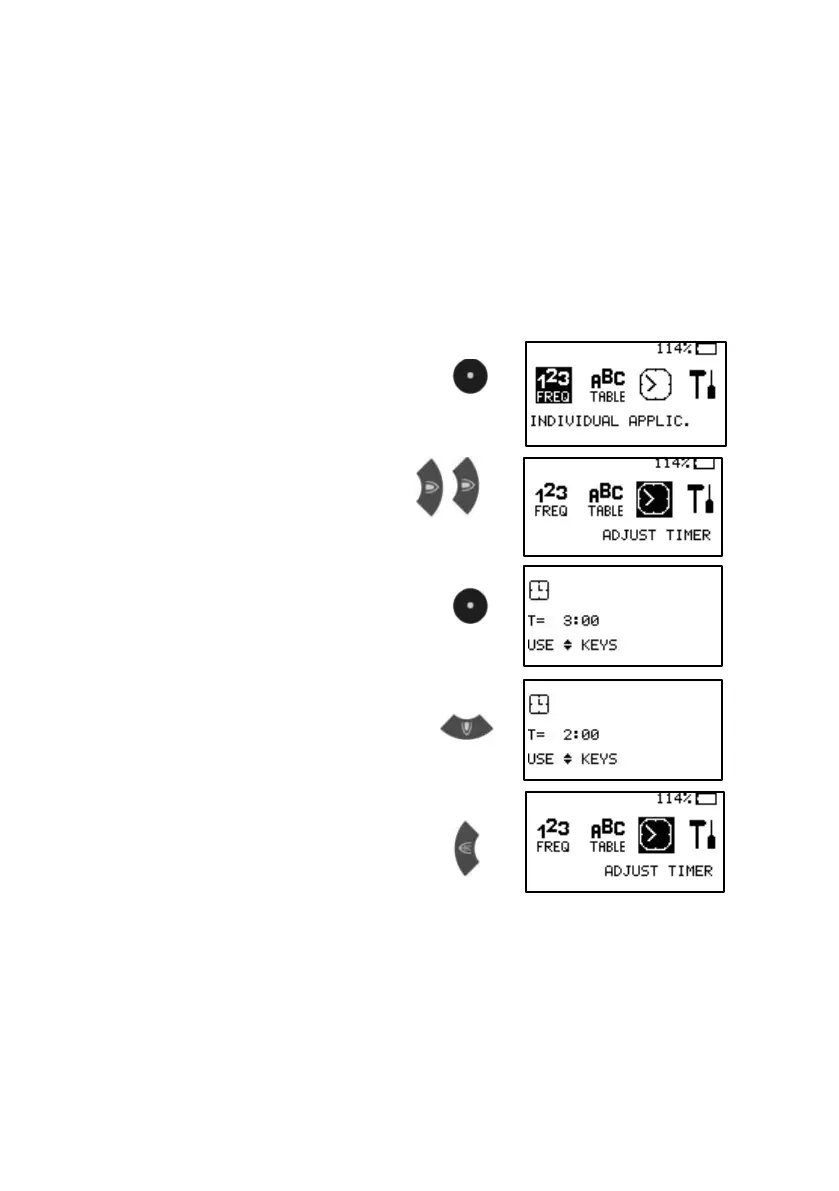

Example: how to change the timer from 3:00 minutes to 2:00 minutes:

1. Sw itch on

2. Select ADJUST TIMER

3. Confirm w ith CENTER

4. Set TIMER to 4 times

2:00 Minutes

5. Ter minate ADJUST TIMER

Change the amplitude of signals

The factory default for the amplitude of signals generated by the F-SCA N

COMPACT is 80% of the maximum of 24Vpp for FULL WAVE signals and

12Vpp for SQUARE WAVE DC-OFFSET signals. The user can adjust it in

steps of +/- 1%.
