- 21 -

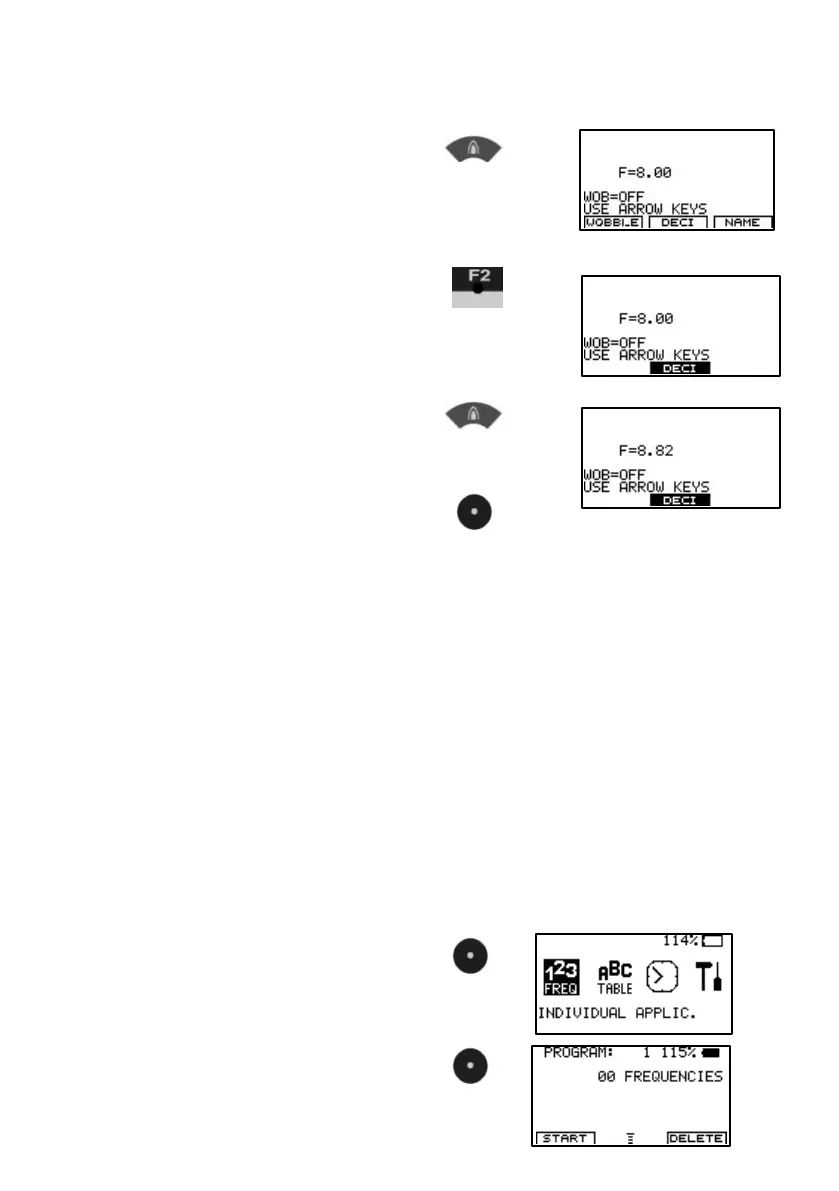

2. Enter 8 Hz, press 8 times
3. Press softkey “DECI“
4. Press KEY-UP and hold
until decimal show s 82.
Confirm
with
CENTER.
.
 Continue w ith chapter TIMER
100 memory banks for user defined applications
F-SCAN COMPACT 100SP,
Firmware Version FSC V2.1x
The F-SCAN COMPACT offers memory banks of 50 positions each.
User can enter frequency sequences from the Internet or from other
sources. Entries w ill be saved until erased by the user. The procedure to
follow to either erase all user entries together, or on e sequence only, w ill be
described later in this document.
Example: how to enter frequency values of 100 Hz, 200 Hz and 1234 Hz in
memory location number #1:
1.
Sw itch on w ith CENTER
2.
Select w ith CENTER.
‚00 FREQUENCIES’ in the
display indicates that no
