TB-Electronics F-SCAN COMPACT - Application Selection and Execution; Running a Specific Application (Program 27)

- 11 -

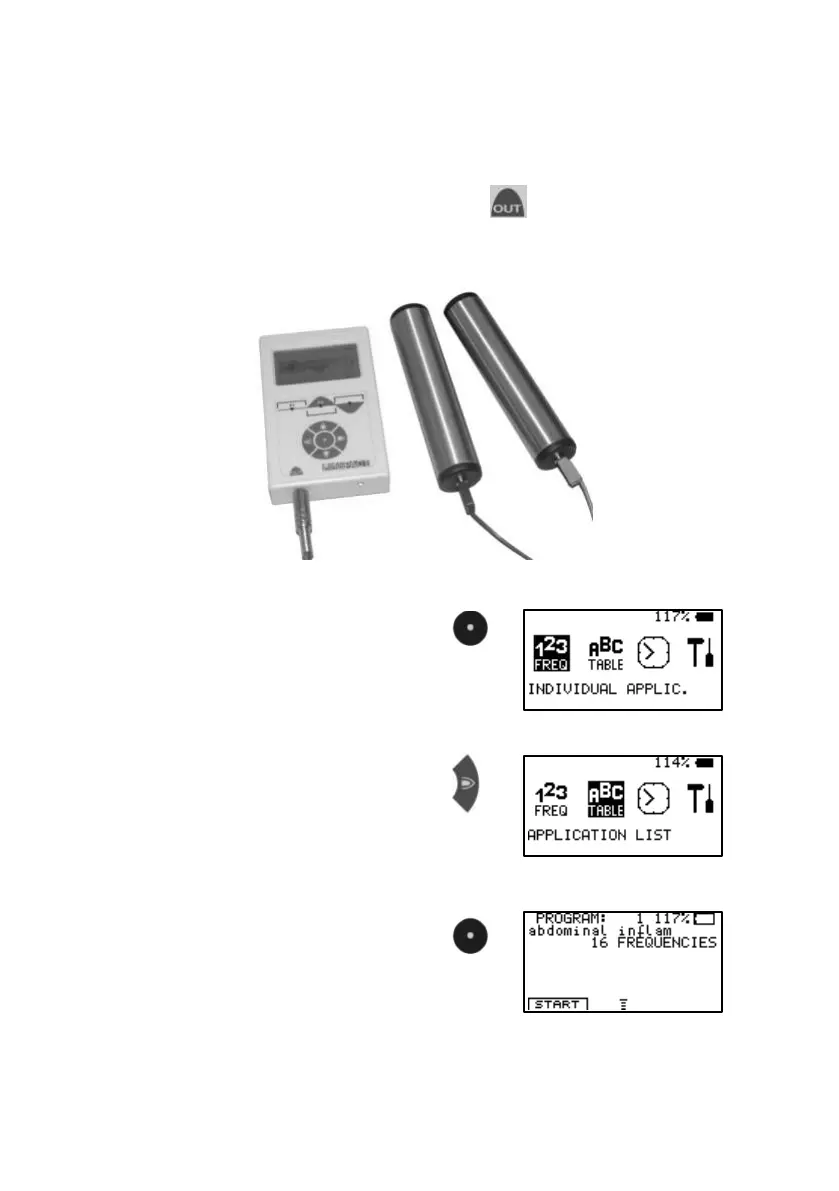

How to SELECT and RUN an APPLICATION
Program number 27 shall be used
Connect the 3.5mm plug of the application cable to the socket located on
the front side of the device below the label
Connect the application cable to the hand holds or to self adhesive pads.
1.
Sw itch on
2. List
3. Select w ith
