TC Electronic G-System User Manual

TYPICAL SETUPS
24
Pedals, pre-amp and Amp
PUSH
Preamp
Combo amp
Drive Pedals
TAP TEMPO
EDIT PARAMETER B EDIT PARAMETER C SELECT PAGE
EDIT PARAMETER A
GAIN ADJUST
HOLD TO STORE HOLD TO STORE HOLD TO STORE HOLDTO STOREHOLD TO STORE
PRESETABLE BOOST LEVEL
LEVEL SET
EDITA EDIT B EDIT C
GLOBALTEMPO
FORMANT | WAH | EFFECT FILTERS COMPRESSOR ALGORITHM
MODEMENU
WHAMMY | PITCH ALGORITHMCHORUS | FLANGER | TREMOLO
| RETURNENTER
HI-CLASS | TAPE ECHO | DYNAMIC REVERBALGORITHM
INPUT DAMP
EDITED
COM FLT PIT DLY REV
E1: E2: E3: E4: E5:
INTEGRATEDEFFECTS
+MANAGEMENT
FILTER LOOP LOOP LOOP EDIT123COMP
UP
DOWN
MOD PITCH DELAY REVERB BOOST
ENCODER ENCODER ENCODER ENCODER ENCODER ENCODER
Send
Return
Send
Return
Send
Return
Send
Return
Loop 1
Expression Pedal
Loop 2Loop 3Loop 4
Expression/Volume Pedal
Input or Effects Return
Out Insert
Guitar
Input
Send
Return
BOOST ON
vintage pre-drive
BOOST ON
vintage pre-drive
BOOST ON
vintage pre-drive

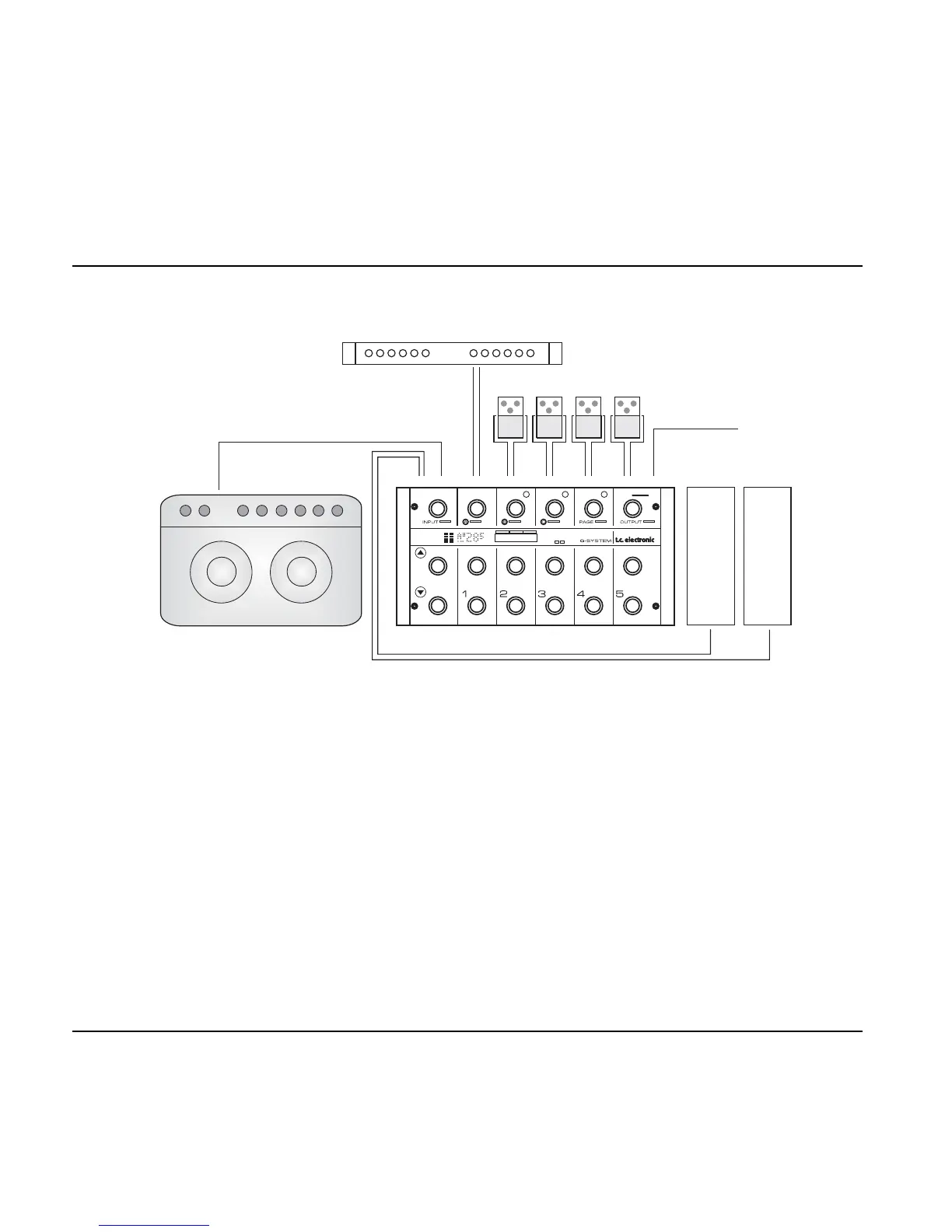

Connecting
• Connect your guitar to the Instrument Input.
• Connect up to four drive pedals to the loops.
• All pedals connected to the loops must remain
switched on at all times. The G-System
activates/deactivates the loops – not the pedals!
• Connect expression pedals using a single standard
1/4" jack cable. Depending on the expression pedal
model, the cable must be mono or stereo.
• Connect a pre-amp to the Insert loop. Set the Insert
loop to “on” in the Loop menu.
If you are using a MIDI pre-amp, you must also
connect the G-System’s MIDI Out to your pre-amp's
MIDI In using a standard MIDI cable.
• Connect the G-System’s Out to your amp’s input or to
the effect loop return. Use two amps for stereo
operation.
• Connect expression pedals and calibrate these using
the Pedals menu.
This setup is similar to the one described in the first
example, but we have now added a pre-amp to the Insert
loop. You can decide to have the pre-amp in or out of the
signal chain per preset, but you will probably prefer to
have it “on” at all times. This is configured in the Utility
menu, which you can access in Menu Mode.
With a pre-amp in the signal chain, you can chose to
connect the G-System to the input or the effects return
(“power-amp in”) on the combo amp.
Using the regular input on the combo amp gives you a
“double-pre-amp” setup where you can use the tone
controls on the combo to color your sound. This has
become a popular setup with amplifiers like the Vox AC
30, Fender Bassman etc., but using it introduces more
noise than using the effects loop return connector.

TC Electronic G-System Specifications
