Dual amp
From Software version 1.05 it is possible, on each preset
to decide how much signal should be sent on left and
right output. This is setup in the Preset Routing menu
located at: EDIT->MENU->Prst Routing
With this option you can e.g:
• Send all clean sounds to the amp connected to left
output.
• Send all drive sounds to the amp connected to right
output.
• Use both connected amps on some presets and even
have control of the output level sent to each amp.

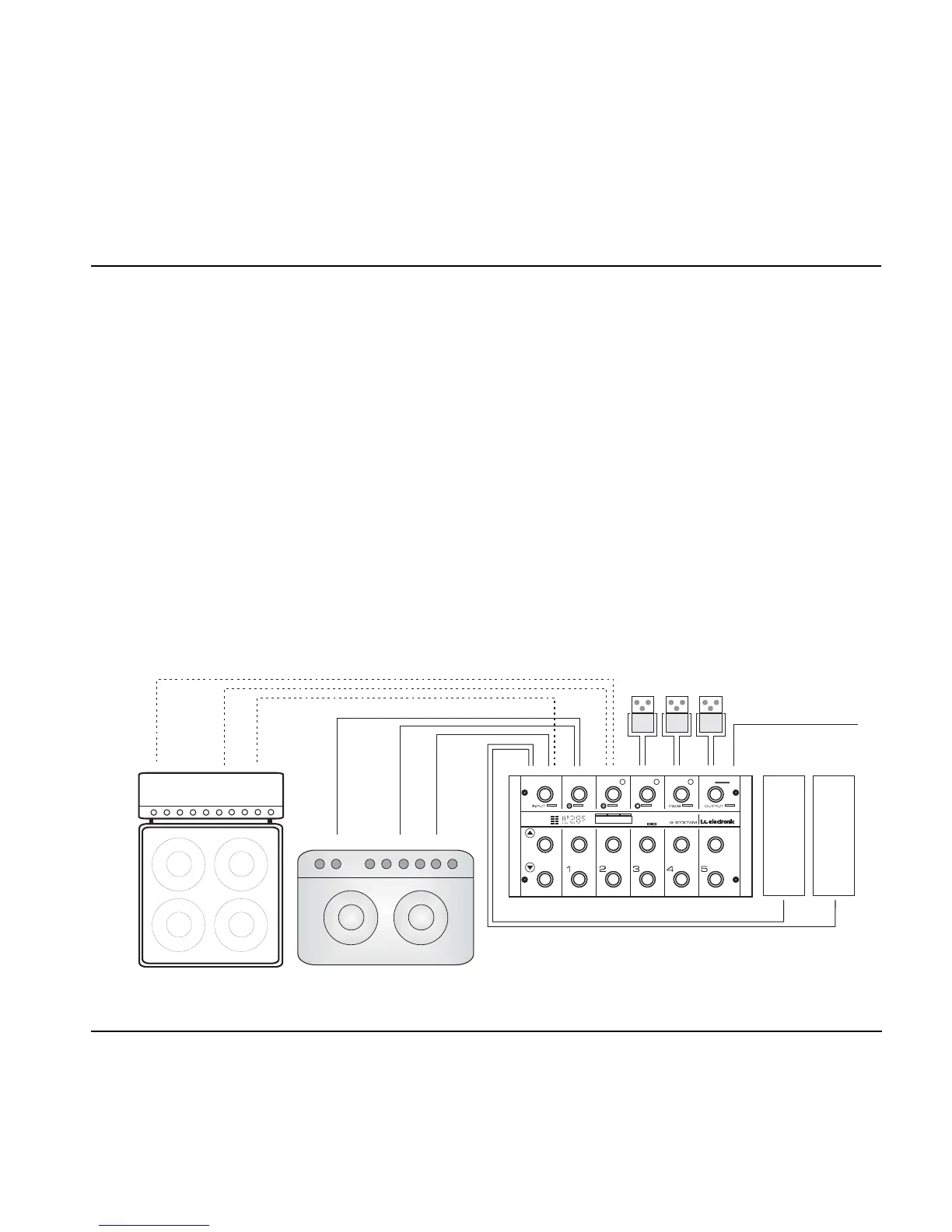

In the setup illustrated below the pre-amp section of one
amp is connected to Loop 4 and the pre-amp of the other
amp to the Insert-loop.
This means that you are able to select which pre-amp-
section (or both) you would like to use for each preset.
Most often you would NOT use both pre-amps at the
same time.
A similar common application could be using the G-
System with a just few drive pedals and two different
amps of your choice. E.g. one for drive sounds and one
for clean sounds. On Each preset you decide which amp
to send the signal to.
Compared to the illustration below that would mean no
cables to the amps Send/Return connections.
TYPICAL SETUPS
27
For advice on how to connect the drive and
expression pedals, please refer to the descriptions
on the previous pages.
