21
Fig. 3
-
5: Load wires connection, 6V to 60V models
Fig. 3
-
6: bus
-
bars shield mounting
80V to 600V Models
WARNING
Hazardous voltages exist at the outputs and the load connections. To
protect personnel against accidental contact with hazardous voltages,
ensure that the load and its connections have no accessible live parts.
Ensure that the load
wiring insulation rating is greater than or equal to
the maximum output voltage of the power supply.

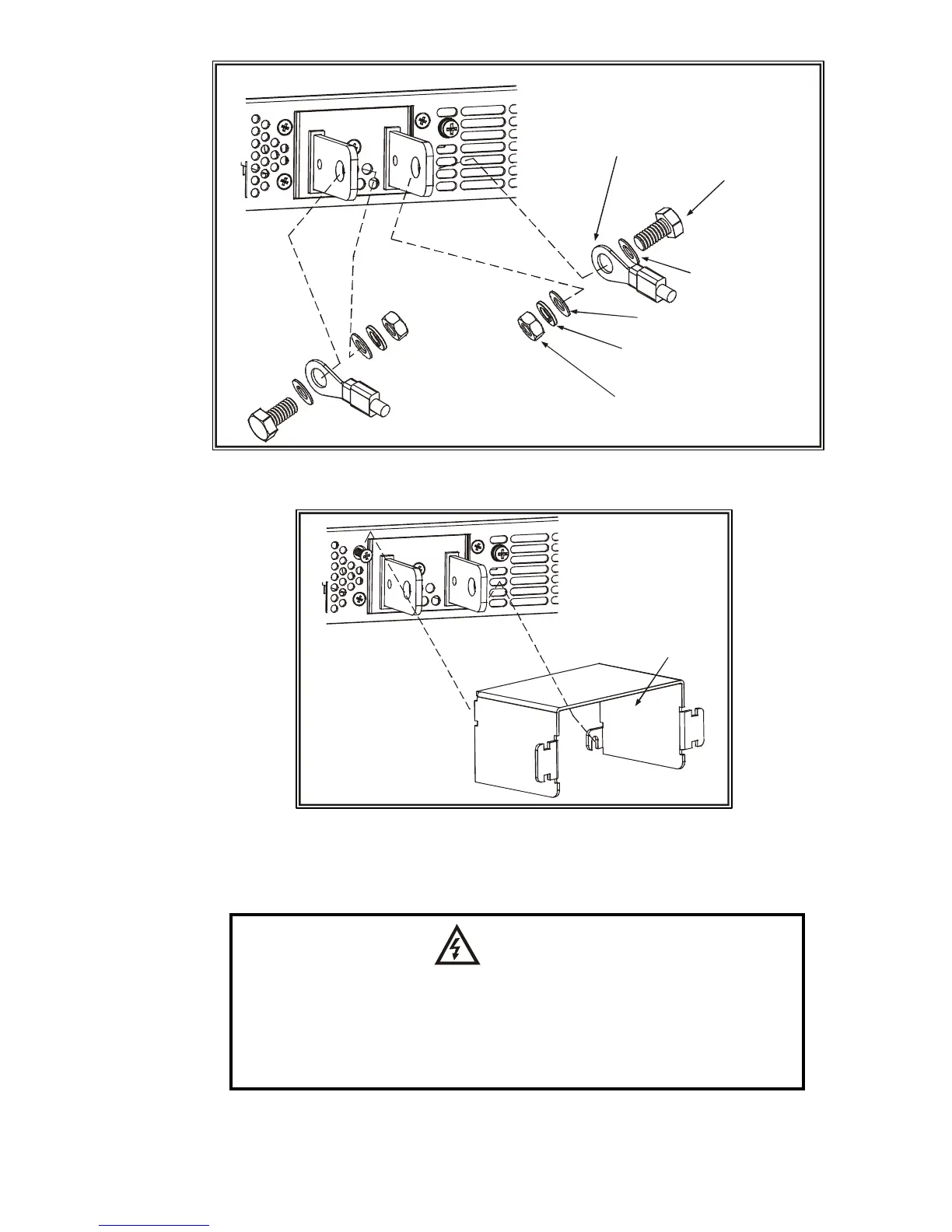

M8x15 screw (2 places)
Hex Nut (2 places)
Flat washer (2 places)
Spring washer (2 places)
Wire terminal lug (2 places)
Flat washer
(2 places)
Screws tightening torque: 104-118 Lb-inch.
+V
-V
D
C
O
U
T
P
U
T
Shield
D
C
O
U
T
P
U
T
-V
+V
