6.5.4
MODBUS TCP Statistics View
MODBUS TCP Statistics view provides general information related to MODBUS TCP packets transfer. These
counters summarize MODBUS TCP protocol errors.

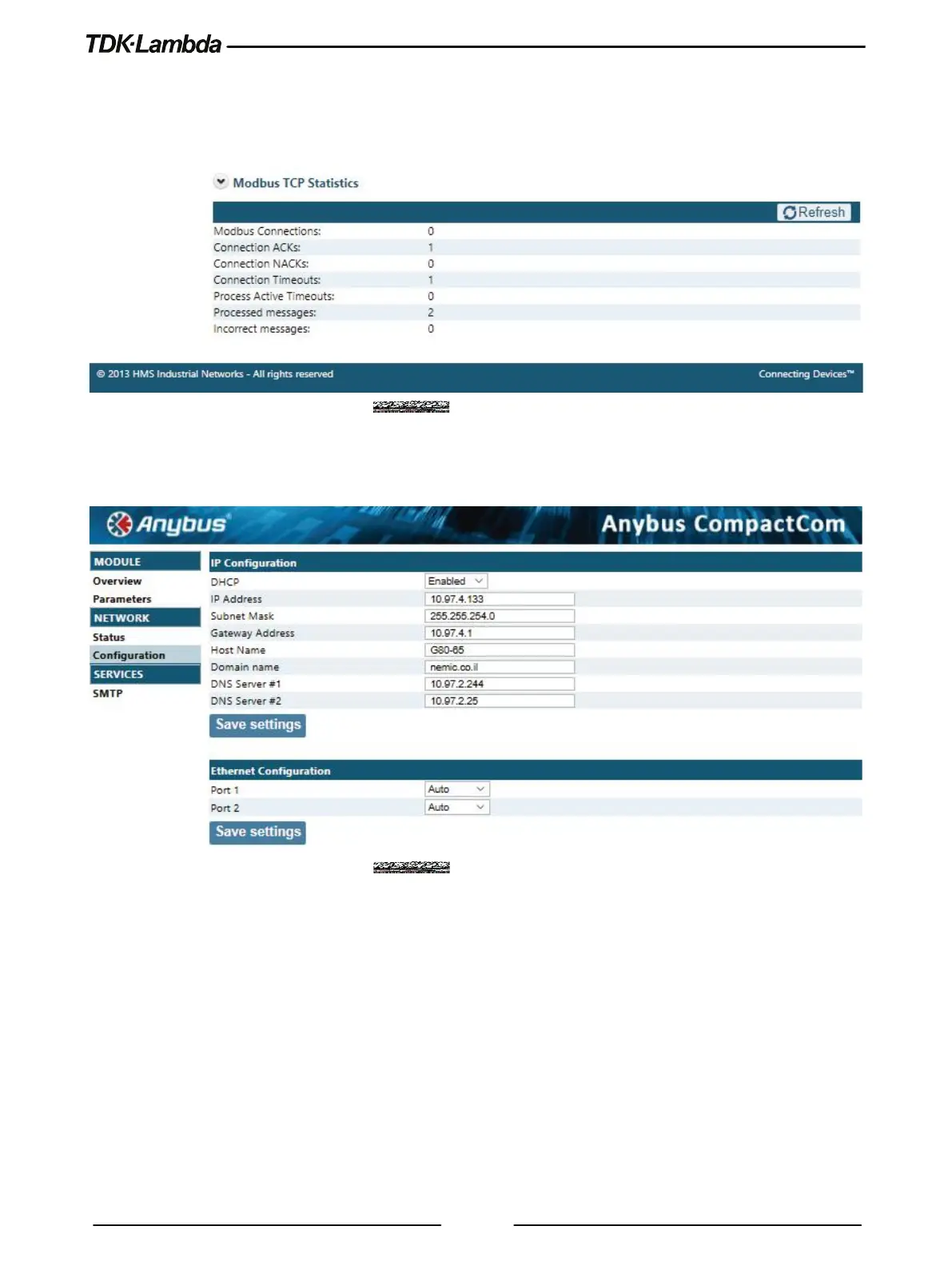

Figure 6–8: MODBUS TCP Statistics View
6.6
NETWORK Configuration Page
The Configuration page provides the ability to modify Ethernet configuration parameters.
Figure 6–9: Network Configuration View
IP Configuration section provides the ability to Enable/Disable DHCP (Dynamic Host
Configuration Protocol). If DHCP is Enabled, IP Address, Subnet Mask, Gateway Address, Domain
Name, DNS (Domain Name System) Server #1 and DNS Server #2 are defined automatically by
DHCP server. If DHCP server is Disabled, all of the above can be set manually.
Hostname may be used instead of the IP address to make a connection if the network supports
DNS service for name translation. You may enter a custom name that describes the power supply
in a meaningful way.
Ethernet Configuration section provides the ability to configure Port 1 and Port 2 with the
following options:
