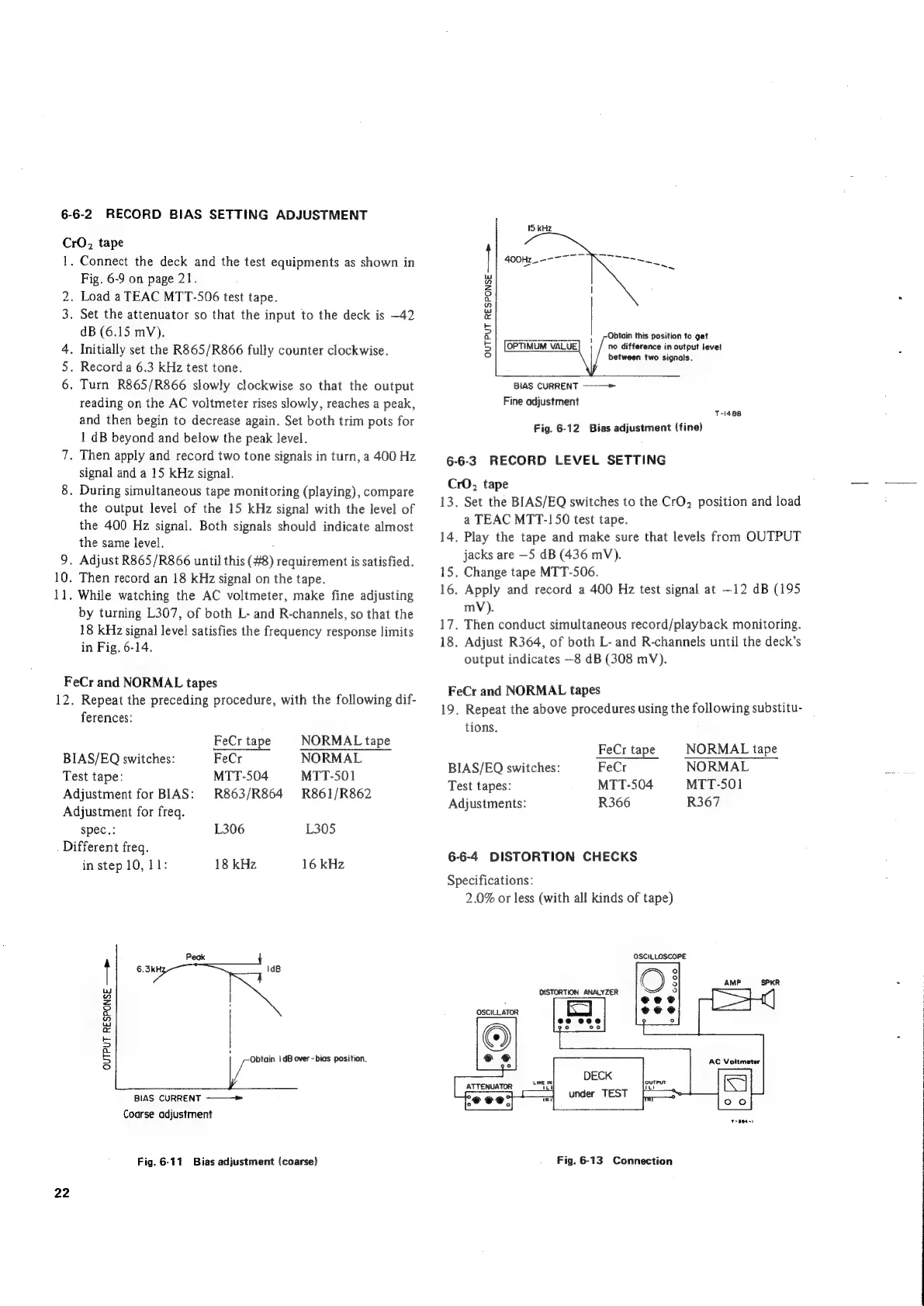

6-6-2.
RECORD
BIAS
SETTING
ADJUSTMENT
CrO,
tape
1.
wo
nA
Connect
the
deck
and
the
test
equipments
as
shown
in
Fig.
6-9
on
page
21.
.
Load
a
TEAC
MTT-506
test
tape.
.
Set
the
attenuator
so
that
the
input
to
the
deck
is
—42
dB
(6.15
mV).
.
Initially
set
the
R865/R866
fully
counter
clockwise.
.
Record
a
6.3
kHz
test
tone.
.
Turn
R865/R866
slowly
clockwise
so
that
the
output
reading
on
the
AC
voltmeter
rises
slowly,
reaches
a
peak,
and
then
begin
to
decrease
again.
Set
both
trim
pots
for
1
dB
beyond
and
below
the
peak
level.
.
Then
apply
and
record
two
tone
signals
in
turn,
a
400
Hz
signal
and
a
15
kHz
signal.
.
During
simultaneous
tape
monitoring
(playing),
compare
the
output
level
of
the
15
kHz
signal
with
the
level
of
the
400
Hz
signal.
Both
signals
should
indicate
almost
the
same
level.
.
Adjust
R865/R866
until
this
(#8)
requirement
is
satisfied.
10.
11.
Then
record
an
18
kHz
signal
on
the
tape.
While
watching
the
AC
voltmeter,
make
fine
adjusting
by
turning
L307,
of
both
L-
and
R-channels,
so
that
the
18
kHz
signal
level
satisfies
the
frequency
response
limits
in
Fig.
6-14.
FeCr
and
NORMAL
tapes
12.
Repeat
the
preceding
procedure,
with
the
following
dif-
ferences:
FeCr
tape
NORMAL
tape
BIAS/EQ
switches:
FeCr
NORMAL
Test
tape:
MTT-504
MTT-501
Adjustment
for
BIAS:
R863/R864
R861/R862
Adjustment
for
freq.
spec.:
L306
L305
Different
freq.
in
step
10,
11:
18
kHz
16
kHz
Peak
|
6.3kH;
1dB
2
|
5
\
&
i
Fs
'
&
3
22
a?
1
dB
over
-bias
position.
BIAS
CURRENT
———>
Coarse
adjustment
Fig.
6-11
Bias
adjustment
(coarse)
i
Obtain
this
position
to
get
OPTIMUM
VALUE
no
difference
in
output
level
between
two
signals.
OUTPUT
RESPONSE
——-»
BIAS
CURRENT
———
Fine
adjustment
T-1488
Fig.
6-12
Bias
adjustment
(fine)
6-6-3
RECORD
LEVEL
SETTING
CrO,
tape
=
13.
Set
the
BIAS/EQ
switches
to
the
CrO,
position
and
load
:
a
TEAC
MTT-150
test
tape.
14.
Play
the
tape
and
make
sure
that
levels
from
OUTPUT
jacks
are
—5
dB
(436
mV).
15,
Change
tape
MTT-506.
16.
Apply
and
record
a
400
Hz
test
signal
at
—12
dB
(195
mV).
17.
Then
conduct
simultaneous
record/playback
monitoring.
18.
Adjust
R364,
of
both
L-
and
R-channels
until
the
deck’s
output
indicates
—8
dB
(308
mV).
FeCr
and
NORMAL
tapes
19.
Repeat
the
above
procedures
using
the
following
substitu-
tions.
FeCr
tape
NORMAL
tape
BIAS/EQ
switches:
FeCr
NORMAL
Test
tapes:
MTT-504
MTT-S501
Adjustments:
R366
R367
6-6-4
DISTORTION
CHECKS
Specifications:
2.0%
or
less
(with
all
kinds
of
tape)
OSCILLOSCOPE
AC
Voitmeter
Te5Res
Fig.
6-13
Connection
