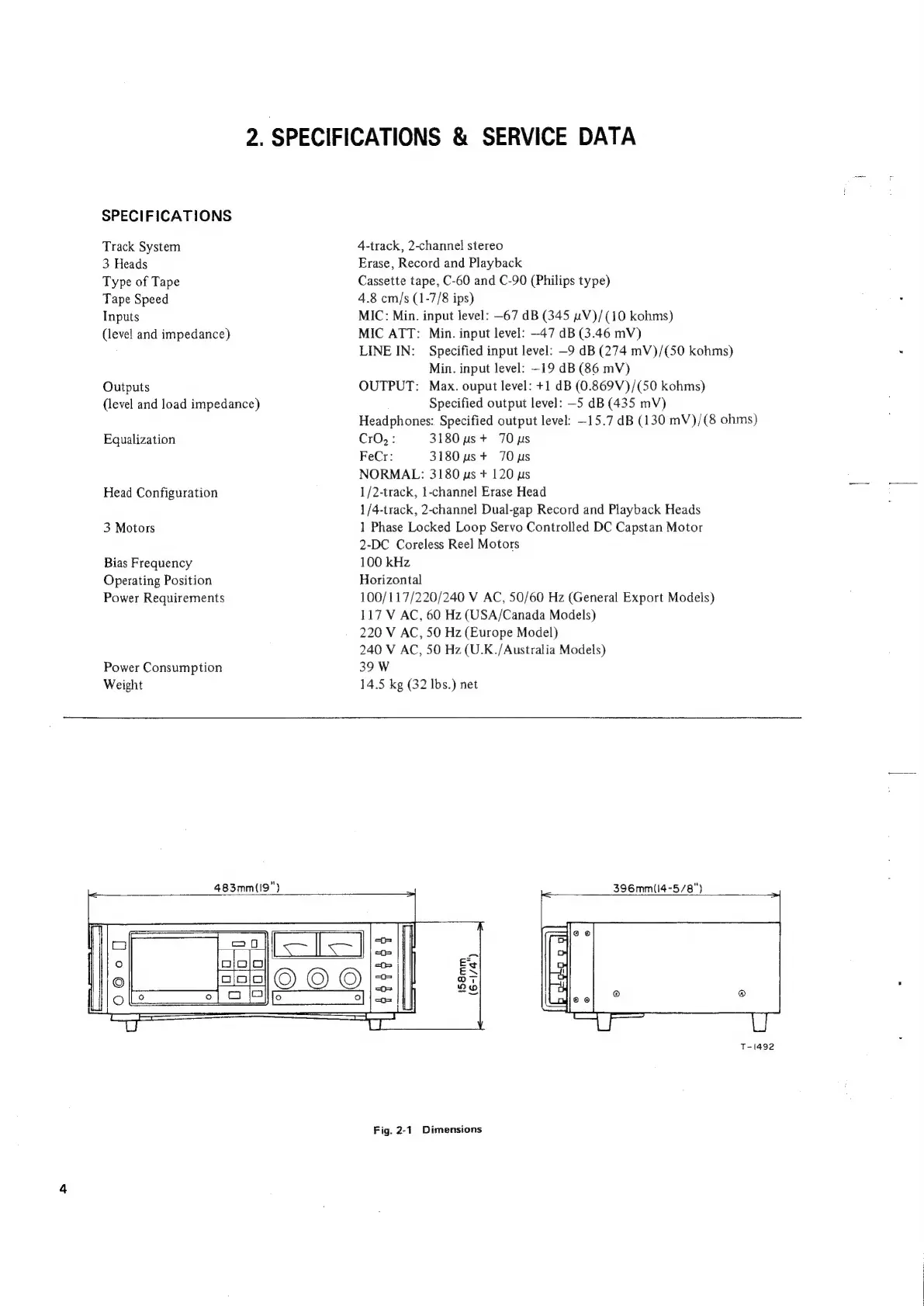

Teac C-1 - SPECIFICATIONS & SERVICE DATA

2. SPECIFICATIONS & SERVICE DATA
SPECIFICATIONS
Track System
3 Heads
Type of Tape
Tape Speed
Inputs
(level and impedance)
Outputs
(level and load impedance)
Equalization
Head Configuration
3 Motors
Bias Frequency
Operating Position
Power Requirements
Power Consumption
Weight
483mm(19")
4-track, 2-channel stereo
Erase, Record and Playback
Cassette tape, C-60 and C-90 (Philips type)
4.8 cm/s (1-7/8 ips)
MIC: Min. input level: —67 dB (345 uV)/(10 kohms)
MIC ATT: Min. input level: —47 dB (3.46 mV)
LINE IN: Specified input level: —9 dB (274 mV)/(50 kohms)
Min. input level: —19 dB (86 mV)
OUTPUT: Max. ouput level: +1 dB (0.869V)/(SO kohms)
Specified output level: —5 dB (435 mV)
Headphones: Specified output level: —15.7 dB (130 mV)/(8 ohms)
CrO,: 3180 yus+ 70 ps
FeCr: 3180 ys+ 70 us
NORMAL: 3180 ps + 120 us
1/2-track, 1-channel Erase Head
1/4-track, 2-channel Dual-gap Record and Playback Heads
1 Phase Locked Loop Servo Controlled DC Capstan Motor
2-DC Coreless Reel Motors
100 kHz
Horizontal
100/117/220/240 V AC, 50/60 Hz (General Export Models)
117 V AC, 60 Hz (USA/Canada Models)
220 V AC, 50 Hz (Europe Model)
240 V AC, 50 Hz (U.K./Australia Models)
39 W
14.5 kg (32 Ibs.) net
396mm(i4-5/8")
T-1492
Fig. 2-1 Dimensions
