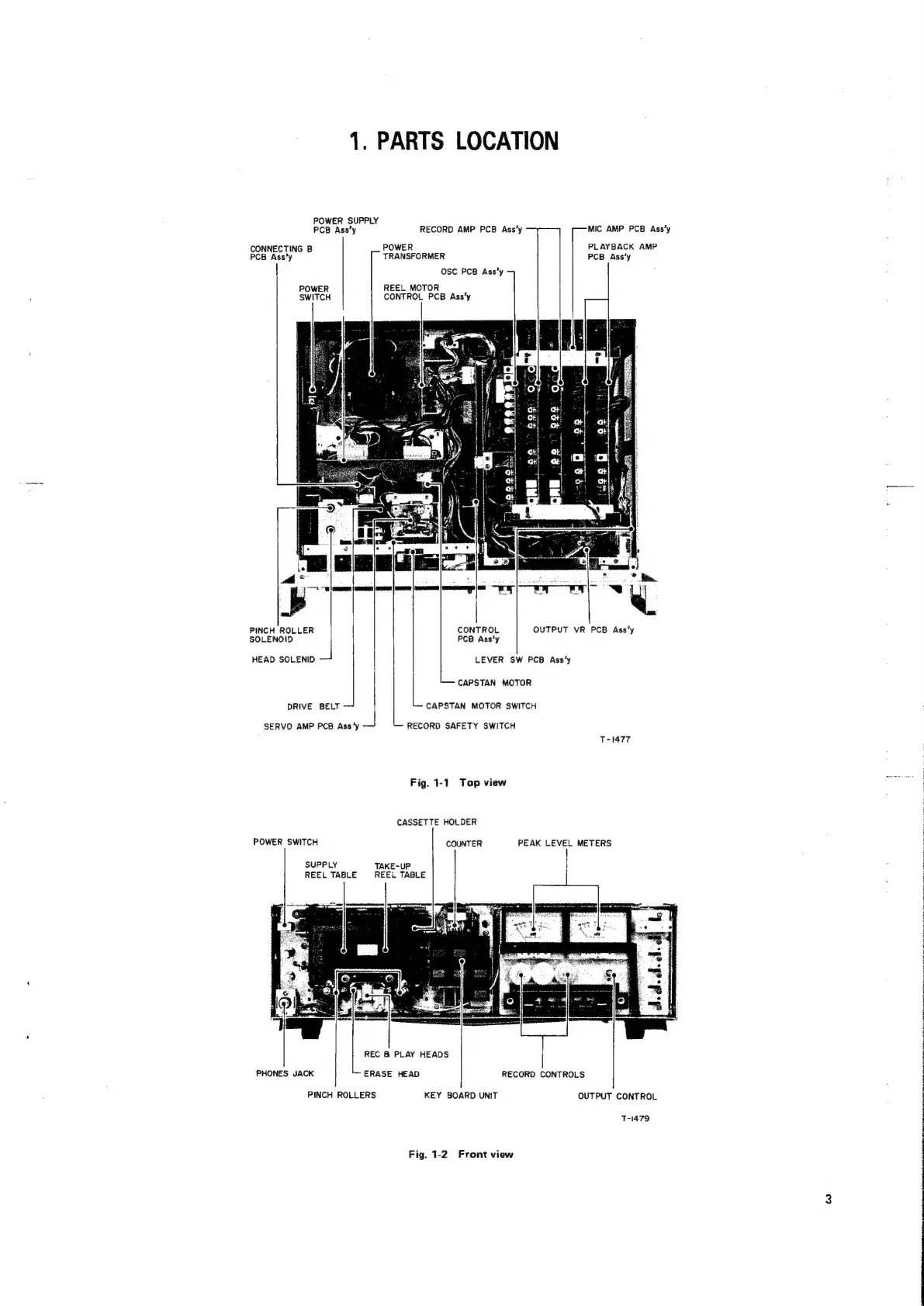

1. PARTS LOCATION
POWER SUPPLY
PCB Ass’y RECORD AMP PCB Ass’y ay ral | MIC AMP PCB Ass’y
CONNECTING B POWER PLAYBACK AMP
PCB Ass’y TRANSFORMER PCB Ass’y
OSC PCB Ass’y
POWER REEL MOTOR
SWITCH CONTROL PCB Ass’y
PINCH ROLLER CONTROL OUTPUT VR PCB Ass’y
SOLENOID PCB Ass’y
HEAD SOLENID 4 LEVER SW PCB Ass’y
CAPSTAN MOTOR
DRIVE BELT ~ L- CAPSTAN MOTOR SWITCH
SERVO AMP PCB Ass’y Bl _ RECORD SAFETY SWITCH
T-1477
Fig.
1-1
Top
view
os
CASSETTE HOLDER
POWER SWITCH COUNTER PEAK LEVEL METERS
SUPPLY TAKE-UP
REEL TABLE REEL TABLE
REC & PLAY HEADS
PHONES JACK ERASE HEAD RECORD CONTROLS
PINCH ROLLERS KEY BOARD UNIT OUTPUT CONTROL
T-i479
4
Fig. 1-2 Front view
3
