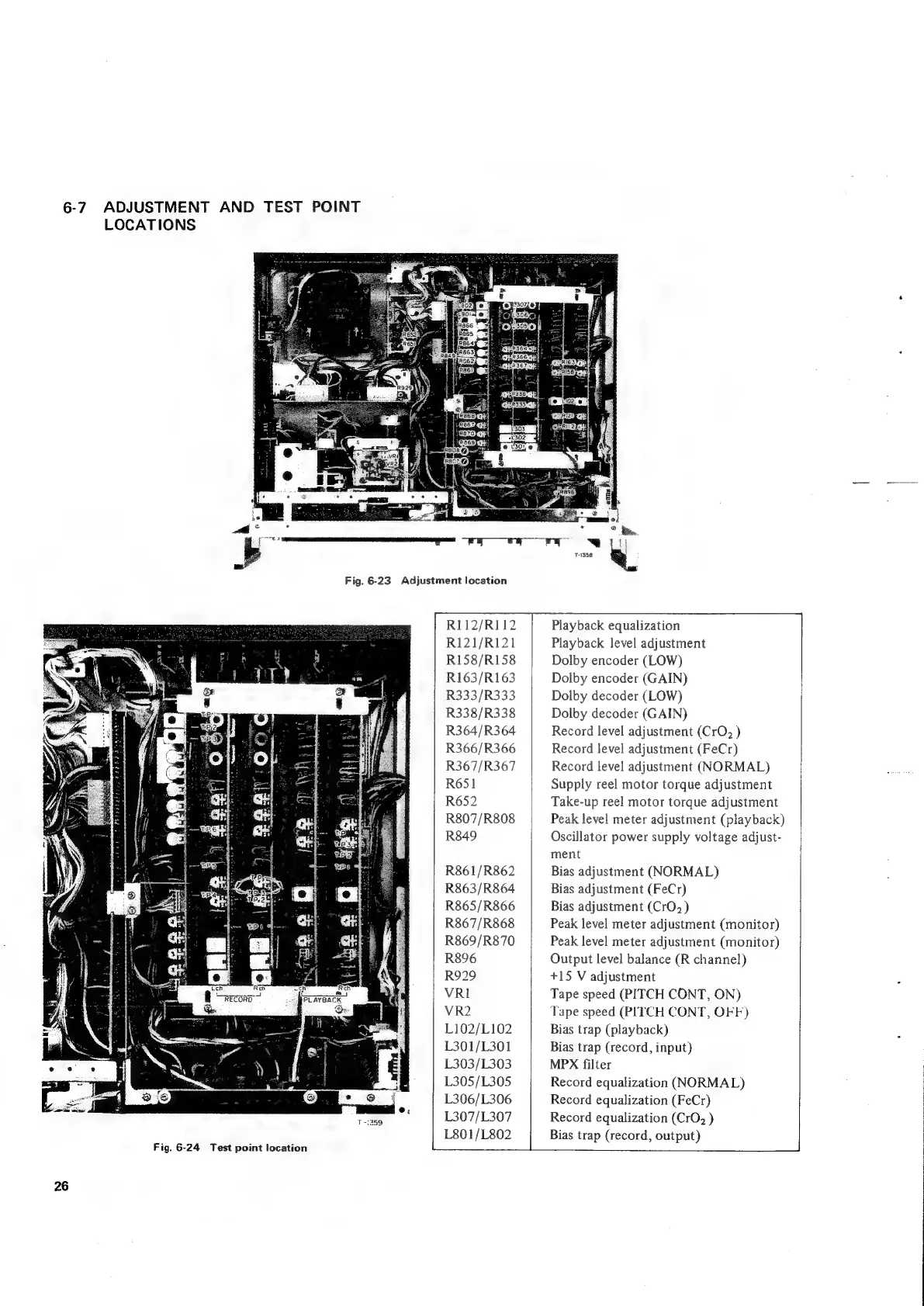

6-7. ADJUSTMENT AND TEST POINT
LOCATIONS
Fig. 6-23 Adjustment location
Fig. 6-24 Test point location
26
| R112/R112 Playback equalization
R121/R121
R158/R158
R163/R163
R333/R333
R338/R338
R364/R364
R366/R366
R367/R367
R651
R652
R807/R808
R849
R861/R862
R863/R864
R865/R866
R867/R868
R869/R870
R896
R929
VRI
VR2
L102/L102
L301/L301
L303/L303
L305/L305
L306/L306
L307/L307
L801/L802
Playback level adjustment
Dolby encoder (LOW)
Dolby encoder (GAIN)
Dolby decoder (LOW)
Dolby decoder (GAIN)
Record level adjustment (CrO, )
Record level adjustment (FeCr)
Record level adjustment (NORMAL)
Supply reel motor torque adjustment
Take-up reel motor torque adjustment
Peak level meter adjustment (playback)
Oscillator power supply voltage adjust-
ment
Bias adjustment (NORMAL)
Bias adjustment (FeCr)
Bias adjustment (CrO, )
Peak level meter adjustment (monitor)
Peak level meter adjustment (monitor)
Output level balance (R channel)
+15 V adjustment
Tape speed (PITCH CONT, ON)
Tape speed (PITCH CONT, OFF)
Bias trap (playback)
Bias trap (record, input)
MPX filter
Record equalization (NORMAL)
Record equalization (FeCr)
Record equalization (CrO, )
Bias trap (record, output)
