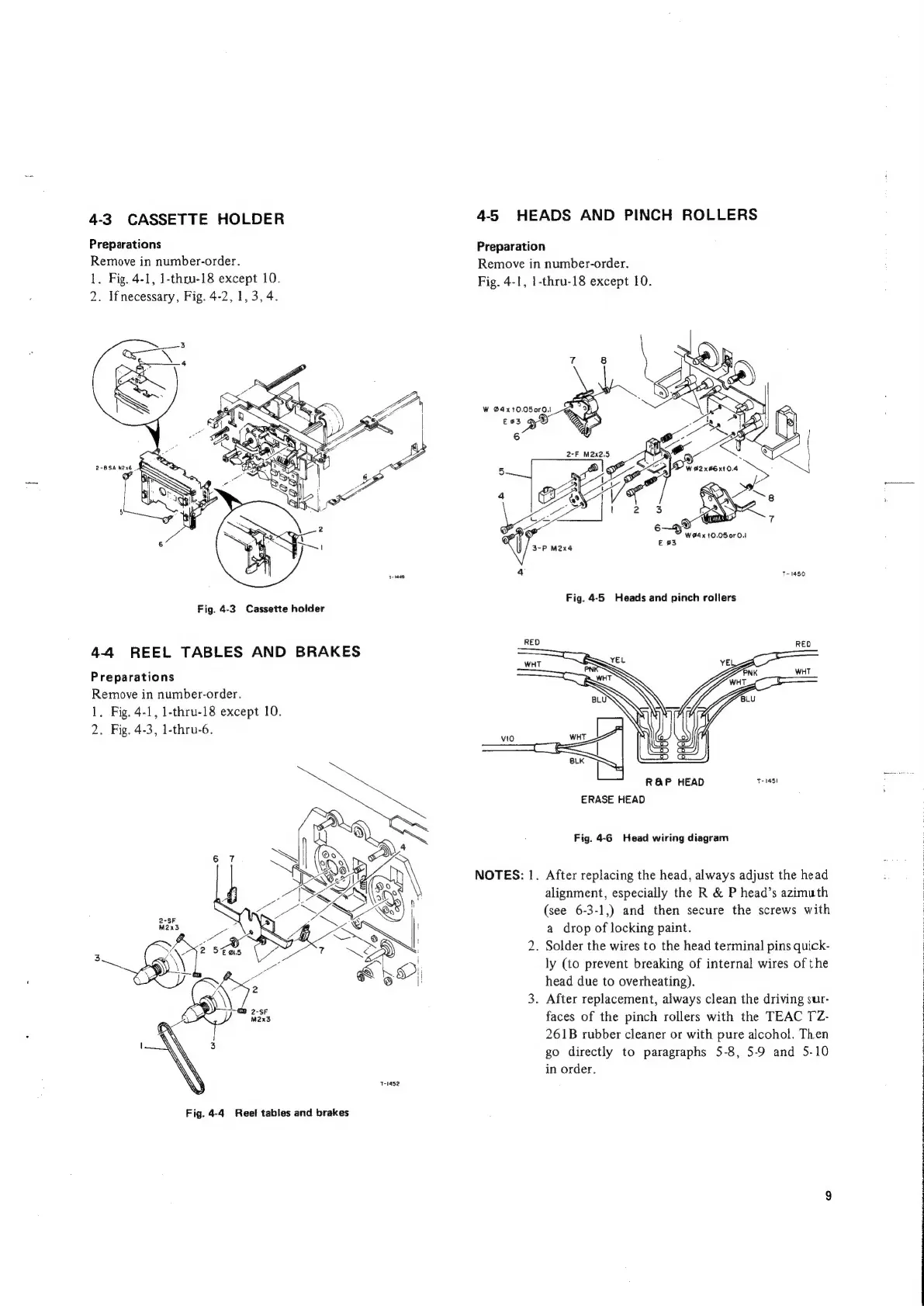

4-3. CASSETTE HOLDER
Preparations
Remove in number-order.
1. Fig. 4-1, 1-thru-18 except 10.
2. Ifnecessary, Fig. 4-2, 1,3, 4.
2-BSA W246 |
Fig. 4-3 Cassette holder
4-4 REEL TABLES AND BRAKES
Preparations
Remove in number-order.
1. Fig. 4-1, 1-thru-18 except 10.
2. Fig. 4-3, 1-thru-6.
Fig. 4-4 Reel tables and brakes
45 HEADS AND PINCH ROLLERS
Preparation
Remove in number-order.
Fig. 4-1, !-thru-18 except 10.
W @4x10.050r0.1 y
E@3 oy)
ea
s—a®
W4x 10.05 0r 0.
E 93
T1450
Fig. 4-5 Heads and pinch rollers
R&P HEAD 1-145!
ERASE HEAD
Fig. 4-6 Head wiring diagram
NOTES: 1. After replacing the head, always adjust the head
alignment, especially the R & P head’s azimuth
(see 6-3-1,) and then secure the screws with
a drop of locking paint.
2. Solder the wires to the head terminal pins quick-
ly (to prevent breaking of internal wires of the
head due to overheating).
3. After replacement, always clean the driving sur-
faces of the pinch rollers with the TEAC TZ-
261B rubber cleaner or with pure alcohol. Then
go directly to paragraphs 5-8, 5-9 and 5-10
in order.
