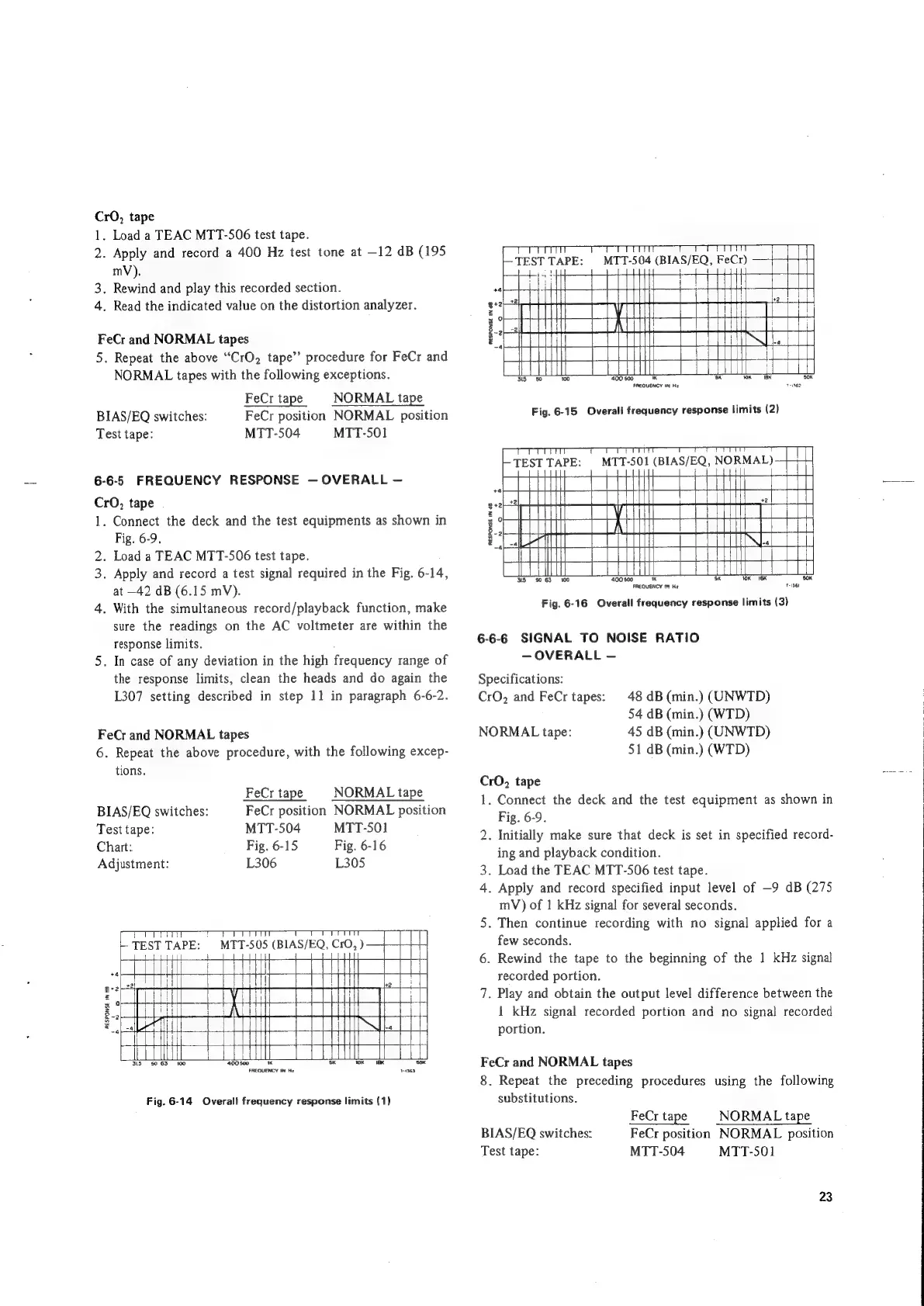

CrO, tape
1. Load a TEAC MTT-506 test tape.
2. Apply and record a 400 Hz test tone at —12 dB (195
mV).
3. Rewind and play this recorded section.
4. Read the indicated value on the distortion analyzer.
FeCr and NORMAL tapes
5. Repeat the above “CrO, tape’’ procedure for FeCr and
NORMAL tapes with the following exceptions.
FeCr tape NORMAL tape
BIAS/EQ switches: FeCr position NORMAL position
Test tape: MTT-504 MTT-501
6-6-5 FREQUENCY RESPONSE — OVERALL —
CrO, tape
1. Connect the deck and the test equipments as shown in
Fig. 6-9,
2. Load a TEAC MTT-506 test tape.
3. Apply and record a test signal required in the Fig. 6-14,
at —42 dB (6.15 mV).
4. With the simultaneous record/playback function, make
sure the readings on the AC voltmeter are within the
response limits.
5. In case of any deviation in the high frequency range of
the response limits, clean the heads and do again the
L307 setting described in step 11 in paragraph 6-6-2.
FeCr and NORMAL tapes
6. Repeat the above procedure, with the following excep-
tions.
FeCr tape NORMAL tape
BIAS/EQ switches: FeCr position NORMAL position
Test tape: MTT-504 MTT-S01
Chart: Fig. 6-15 Fig. 6-16
Adjustment: L306 L305
POUTTTTY T 1 a ome ee a a LL
+
TEST
TAPE:
MTT
-505
(BIAS/EQ,
se
4
| |
T
|
|
| a
| rT |
+2! im ‘ ; +2
if i it]
~t r ra i
iis i i
1
+
rs
+
s
i=}
1
oy
RESPONSE iN cB
t
a
=4 i i | 4 | Kg
LTT
i
|
aE
31580 63100 400500 Ww BK tok 1eK ‘50K
FREQUENCY IN Hz 1.0363,
Fig. 6-14 Overall frequency response limits (1)
TTT a a T
TEST TAPE: MTT-504 (EINSEO: eer
Coon
RESPONSE IN d8
i
|
4
! i
315 50 ¥00 ‘400 500 « 3K OK aK
FREQUENCY IN Hr 1-196?
Fig. 6-15 Overali frequency response limits (2)
Loh Tat Pere, fot Feit oe]
ates 501 ou ea
TEST TAPE:
RESPONSE IN dB
FREQUENCY IN Hr T1361
Fig. 6-16 Overall frequency response limits (3)
6-6-6 SIGNAL TO NOISE RATIO
— OVERALL —
Specifications:
CrO, and FeCr tapes: 48 dB (min.) (UNWTD)
54 dB (min.) (WTD)
45 dB (min.) (UNWTD)
51 dB (min.) (WTD)
NORMAL tape:
CrO, tape
1. Connect the deck and the test equipment as shown in
Fig. 6-9.
2. Initially make sure that deck is set in specified record-
ing and playback condition.
3. Load the TEAC MTT-506 test tape.
4. Apply and record specified input level of —9 dB (275
mV) of 1 kHz signal for several seconds.
5. Then continue recording with no signal applied for a
few seconds.
6. Rewind the tape to the beginning of the 1 kHz signal
recorded portion.
7. Play and obtain the output level difference between the
1 kHz signal recorded portion and no signal recorded
portion.
FeCr and NORMAL tapes
8. Repeat the preceding procedures using the following
substitutions.
FeCr tape NORMAL tape
BIAS/EQ switches: FeCr position NORMAL position
Test tape: MTT-504 MTT-SO1
23
