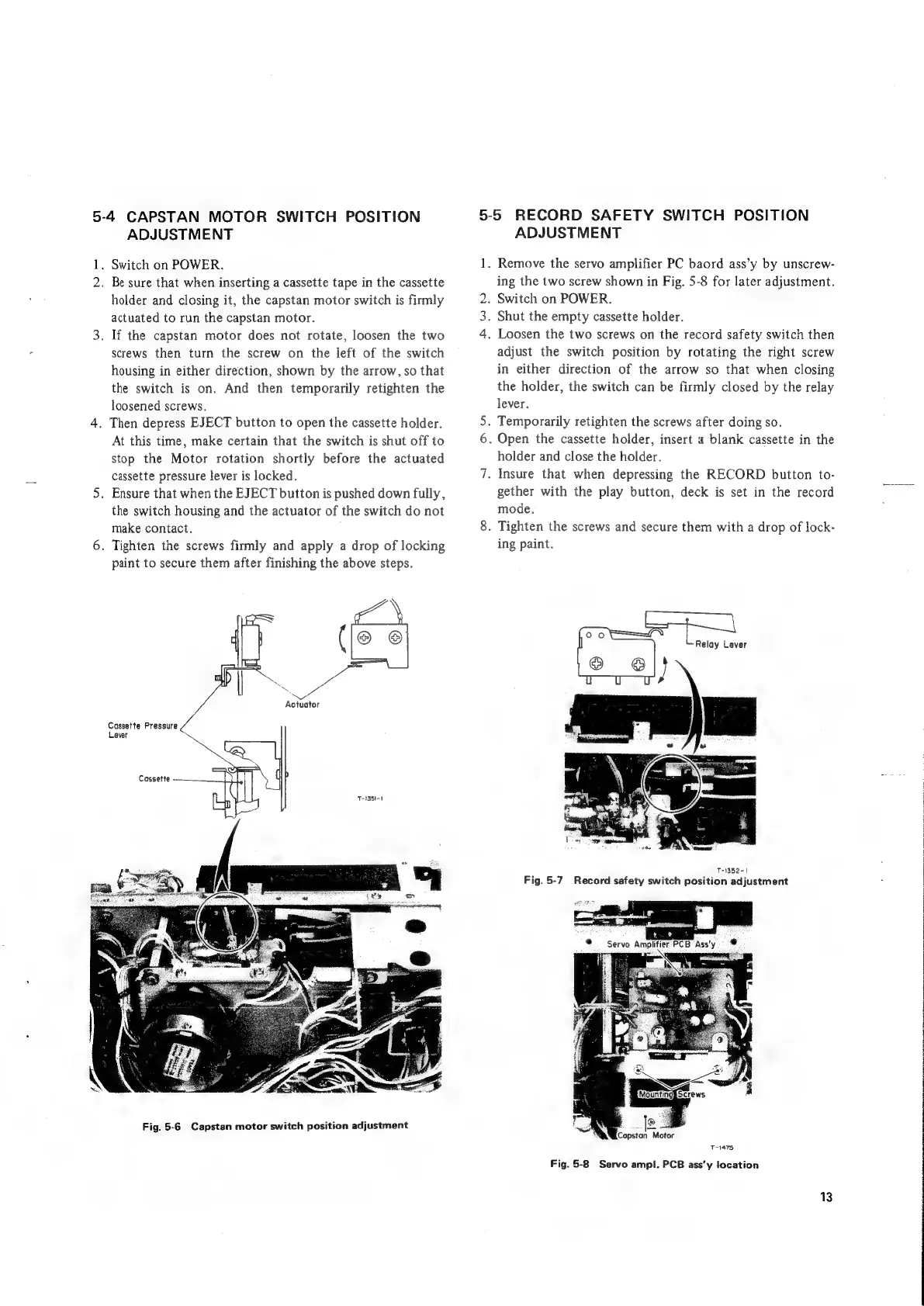

5-4 CAPSTAN MOTOR SWITCH POSITION
ADJUSTMENT
1. Switch on POWER.
2. Be sure that when inserting a cassette tape in the cassette
holder and closing it, the capstan motor switch is firmly
actuated to run the capstan motor.
3. If the capstan motor does not rotate, loosen the two
screws then turn the screw on the left of the switch
housing in either direction, shown by the arrow, so that
the switch is on. And then temporarily retighten the
loosened screws.
4. Then depress EJECT button to open the cassette holder.
At this time, make certain that the switch is shut off to
stop the Motor rotation shortly before the actuated
cassette pressure lever is locked.
5. Ensure that when the EJECT button is pushed down fully,
the switch housing and the actuator of the switch do not
make contact.
6. Tighten the screws firmly and apply a drop of locking
paint to secure them after finishing the above steps.
| aN
a
Actuator
Cassette Pressure
mS
NE
T-135I-1
Lever
Cassette
Fig. 5-6 Capstan motor switch position adjustment
5-5 RECORD SAFETY SWITCH POSITION
ADJUSTMENT
—
. Remove the servo amplifier PC baord ass’y by unscrew-
ing the two screw shown in Fig. 5-8 for later adjustment.
. Switch on POWER.
. Shut the empty cassette holder.
. Loosen the two screws on the record safety switch then
adjust the switch position by rotating the right screw
in either direction of the arrow so that when closing
the holder, the switch can be firmly closed by the relay
lever.
5. Temporarily retighten the screws after doing so.
6. Open the cassette holder, insert a blank cassette in the
holder and close the holder.
7, Insure that when depressing the RECORD button to-
gether with the play button, deck is set in the record
mode.
8. Tighten the screws and secure them with a drop of lock-
ing paint.
B&W Po
T-1352-1
Fig. 5-7 Record safety switch position adjustment
‘Copstan Motor
T-1475,
Fig. 5-8 Servo ampl. PCB assy location
