9. VOLTAGE AND FREQUENCY SETTING
9-1 VOLTAGE SELECTOR SETTING PROCEDURE
(FOR GENERAL EXPORT MODELS)
1. Disconnect the power cord of the deck from the source.
2. Remove the deck cover by removing two screws on each
side and two screws on the top. Locate the voltage selec-
tor near the transformer inside the deck.
3. To increase the selected voltage, turn the slotted center
post clockwise using a screwdriver or other suitable tool.
4, To decrease the selected voltage, turn the slotted center
post counterclockwise.
5. The numerals that appear in the cut-out window of the
voltage selector indicate the selected voltage.
9-2 AC POWER LINE FREQUENCY ADAPTATION
For cassette deck models with DC Capstan and Reel Motors,
no modification is required for change of power line
frequency from 60 Hz to 50 Hz and vice versa.
4
NS, T-1218

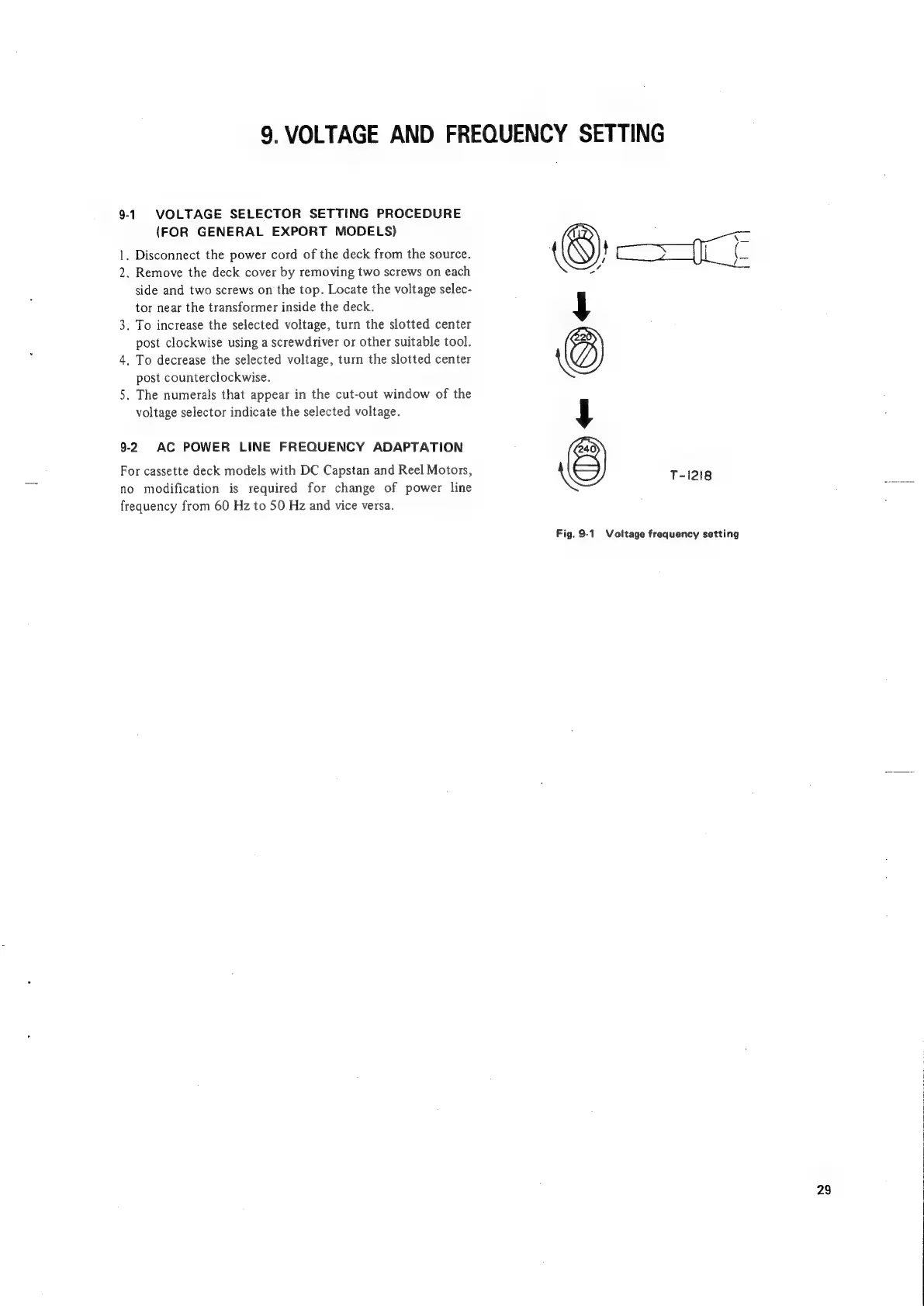

Fig. 9-1 Voltage frequency setting
29
