2.2 Connecting to an Audio System
To enjoy Dolby digital audio, your TV or audio system must be able to decode Dolby digital

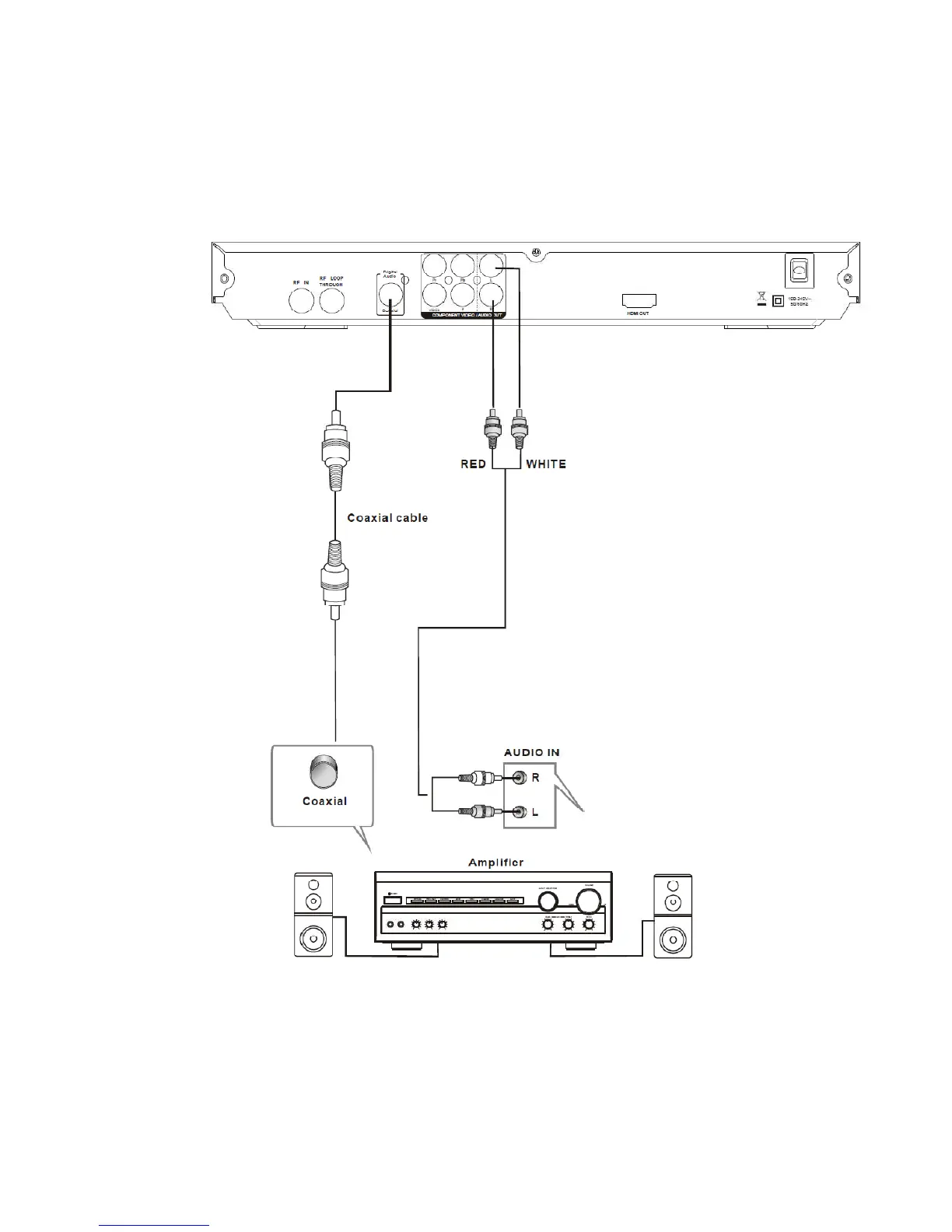

audio. Plug one end of an optical SPDIF cable into the coaxial digital audio socket on the unit
and plug the other end into the matching socket on your audio system as shown by the
schematic diagram below. This feature is only available for amplifiers equipped with coaxial
digital audio input connectors.
